Last Update: 11/12/17
Guitar for David Bueker
Model: Lattice Guitar
Specifications:
|
|

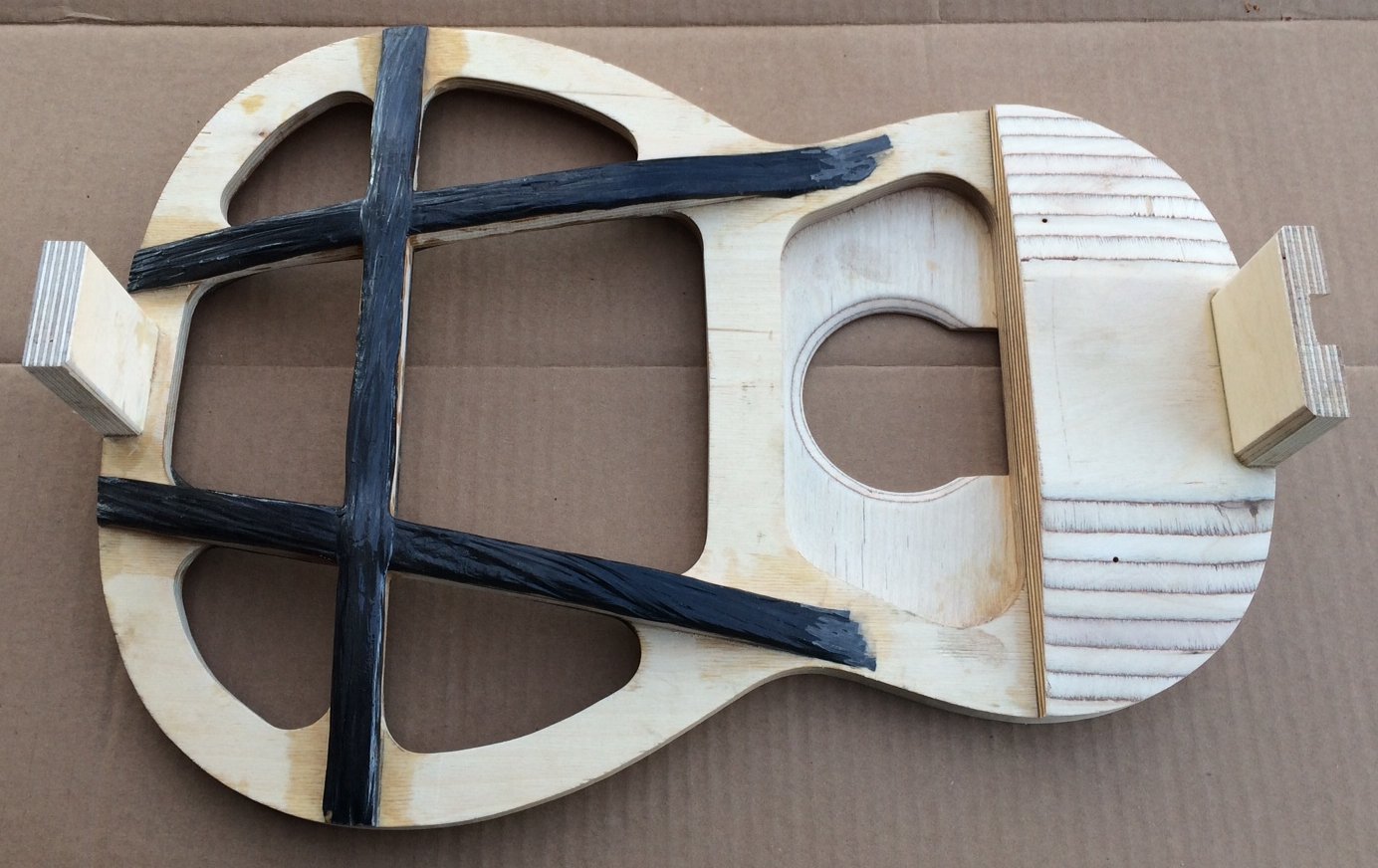

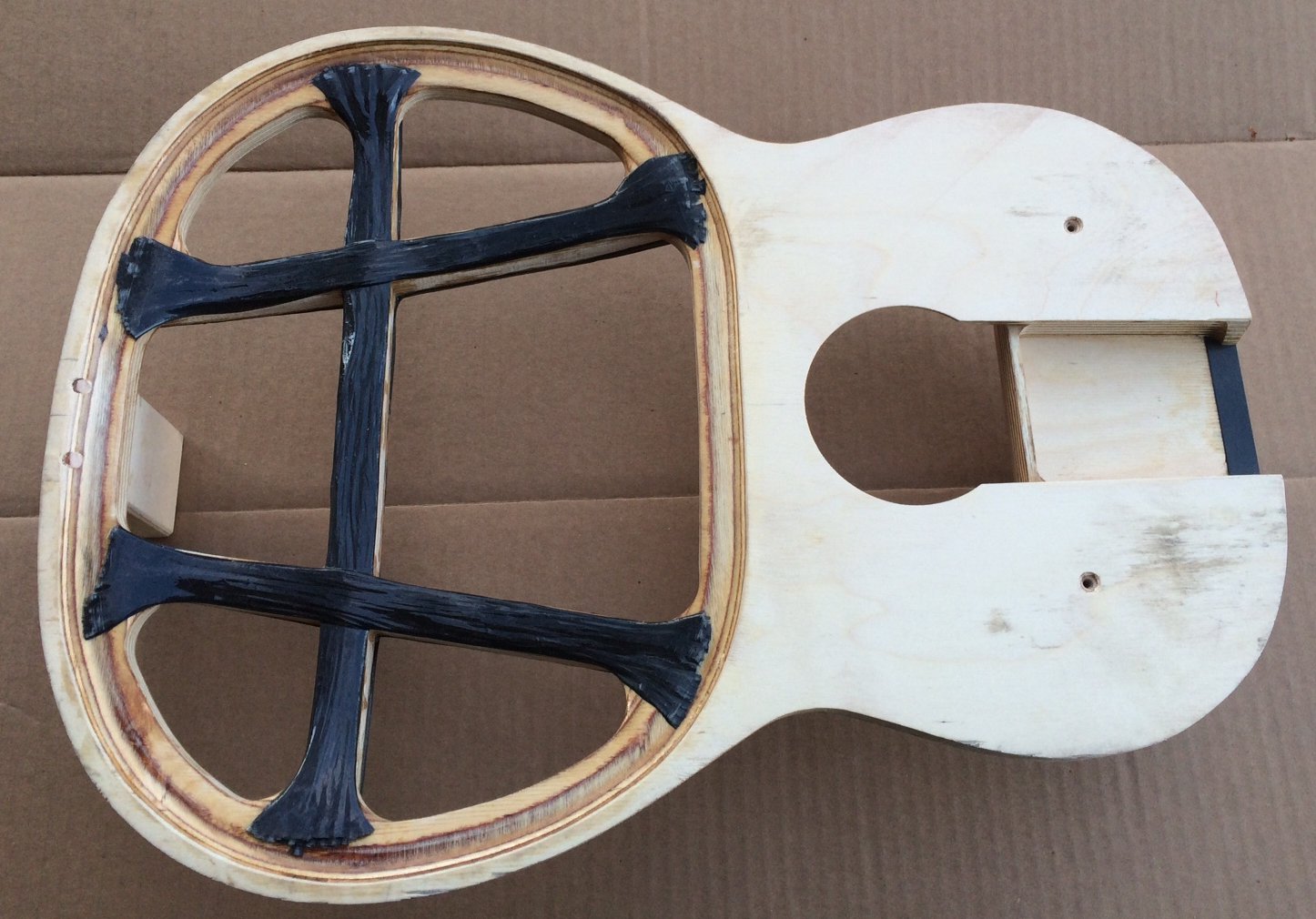

Chassis construction top view. |
|
|
Chassis construction interior view. |
|
|

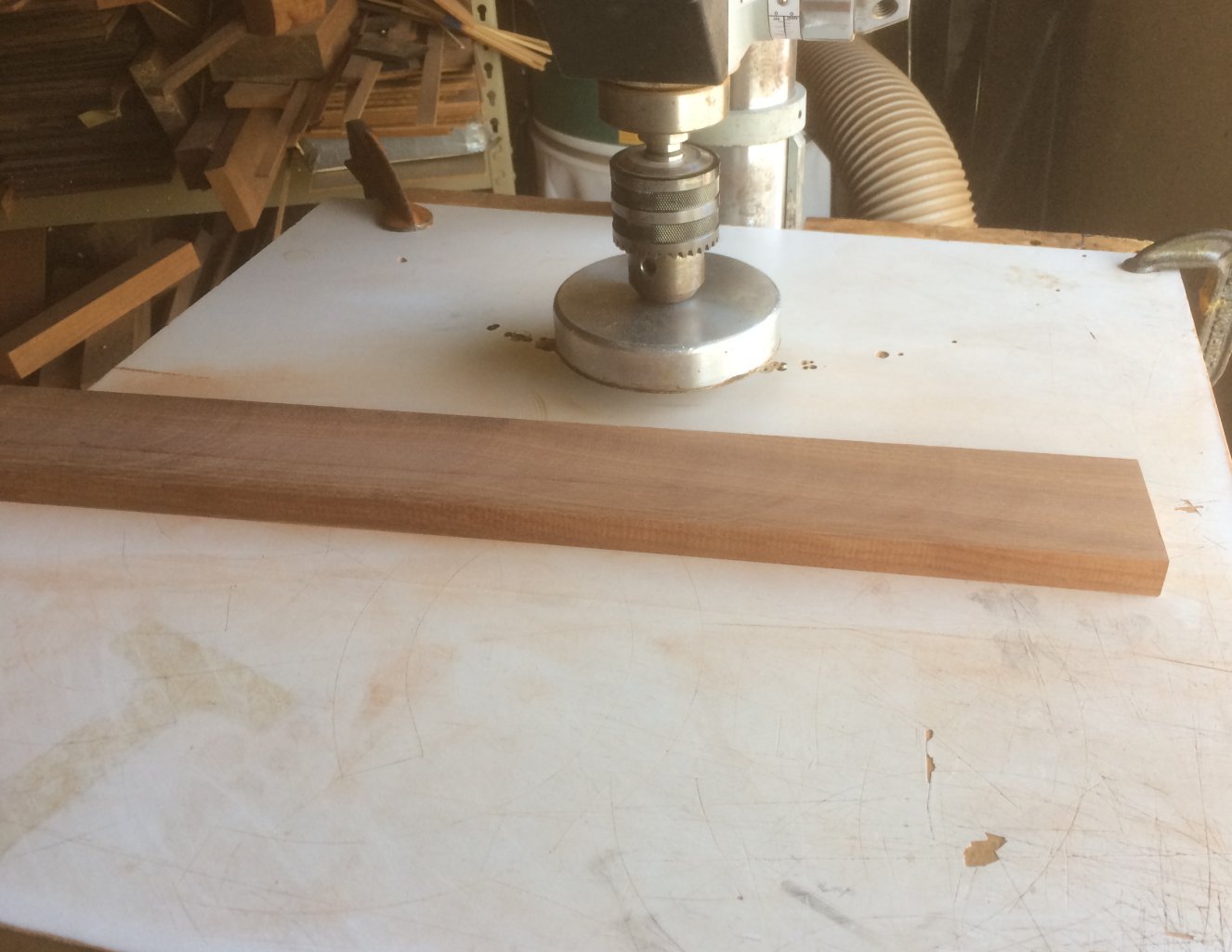

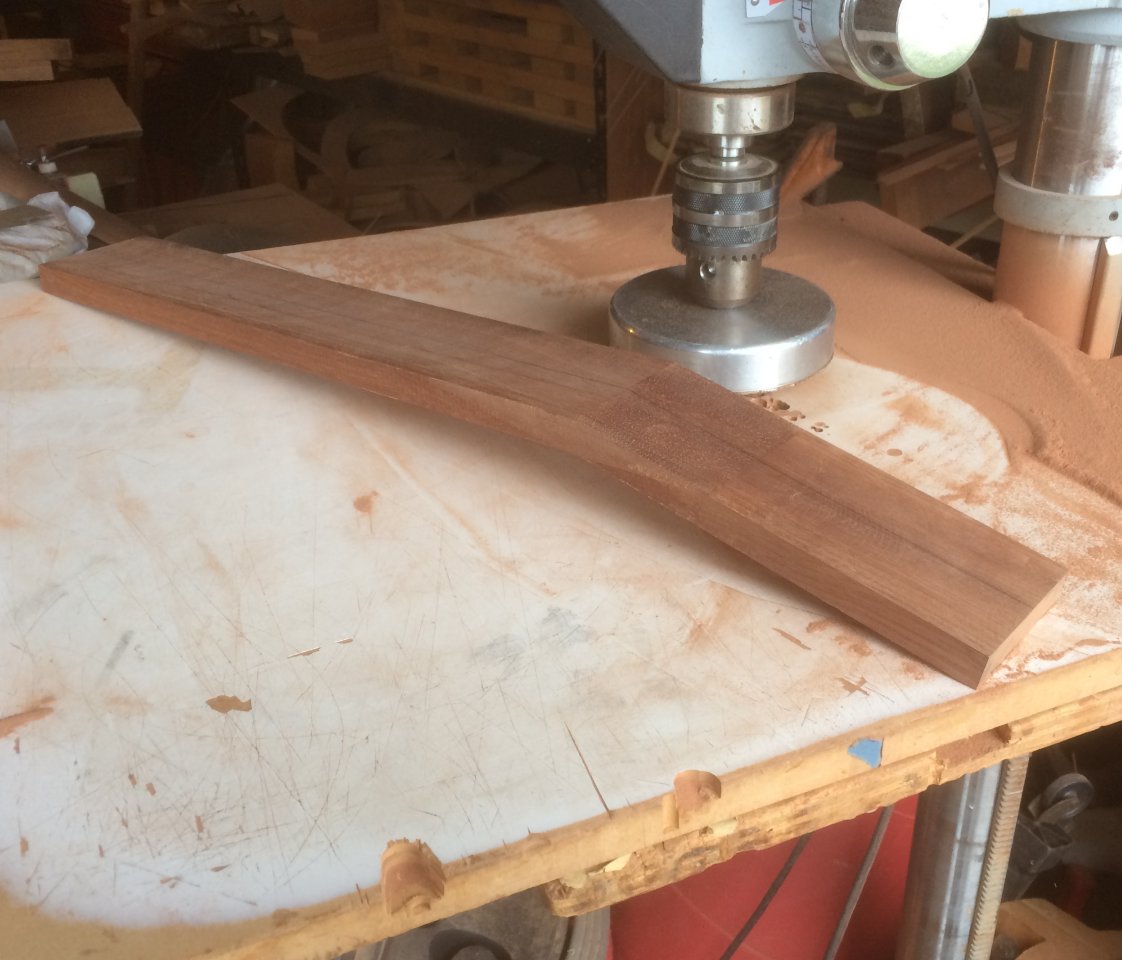

Thicknessing the neck. |
|
|
Neck construction. |
|
|

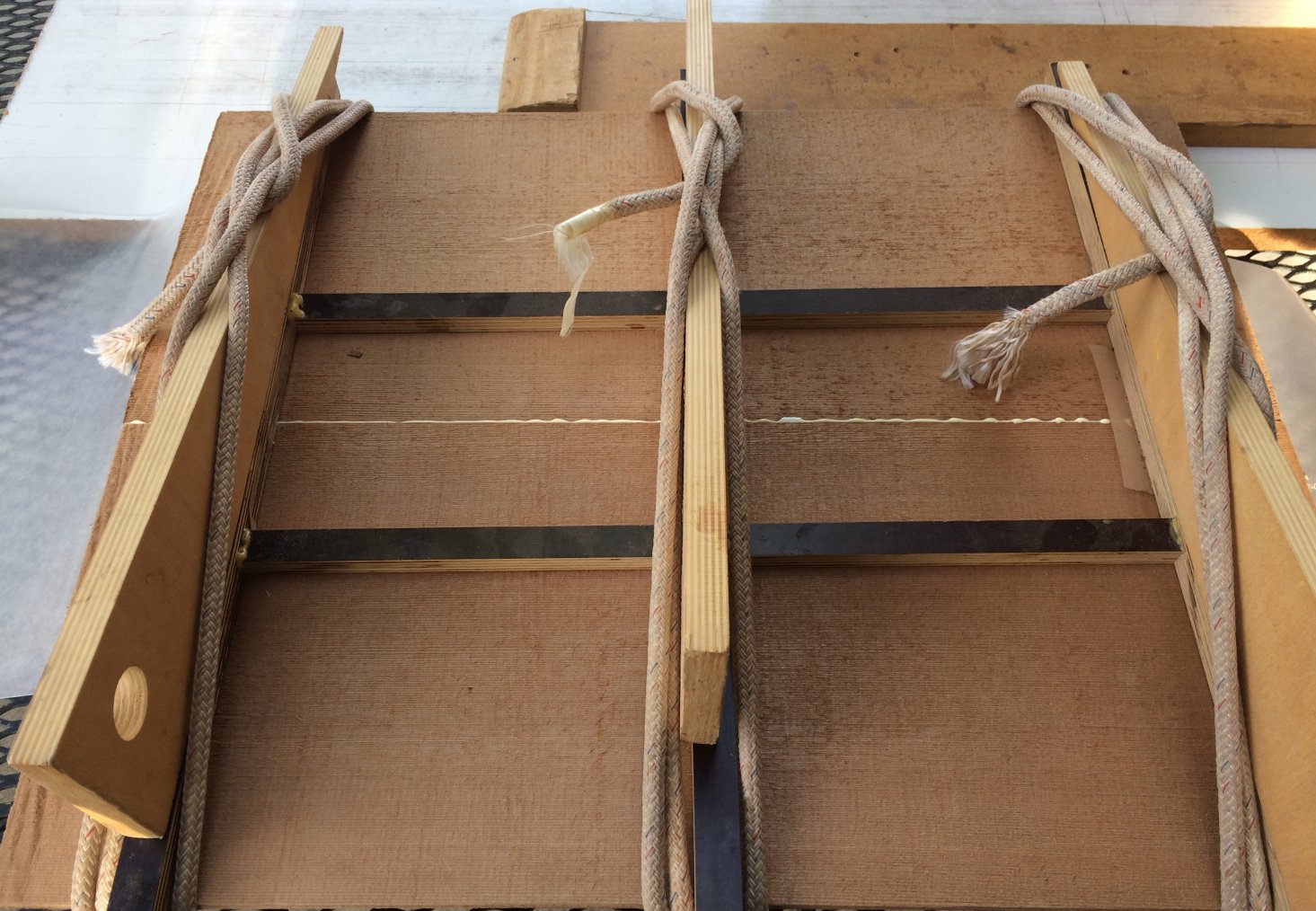

Joining the top. |
|
|
Head profiled. |
|
|

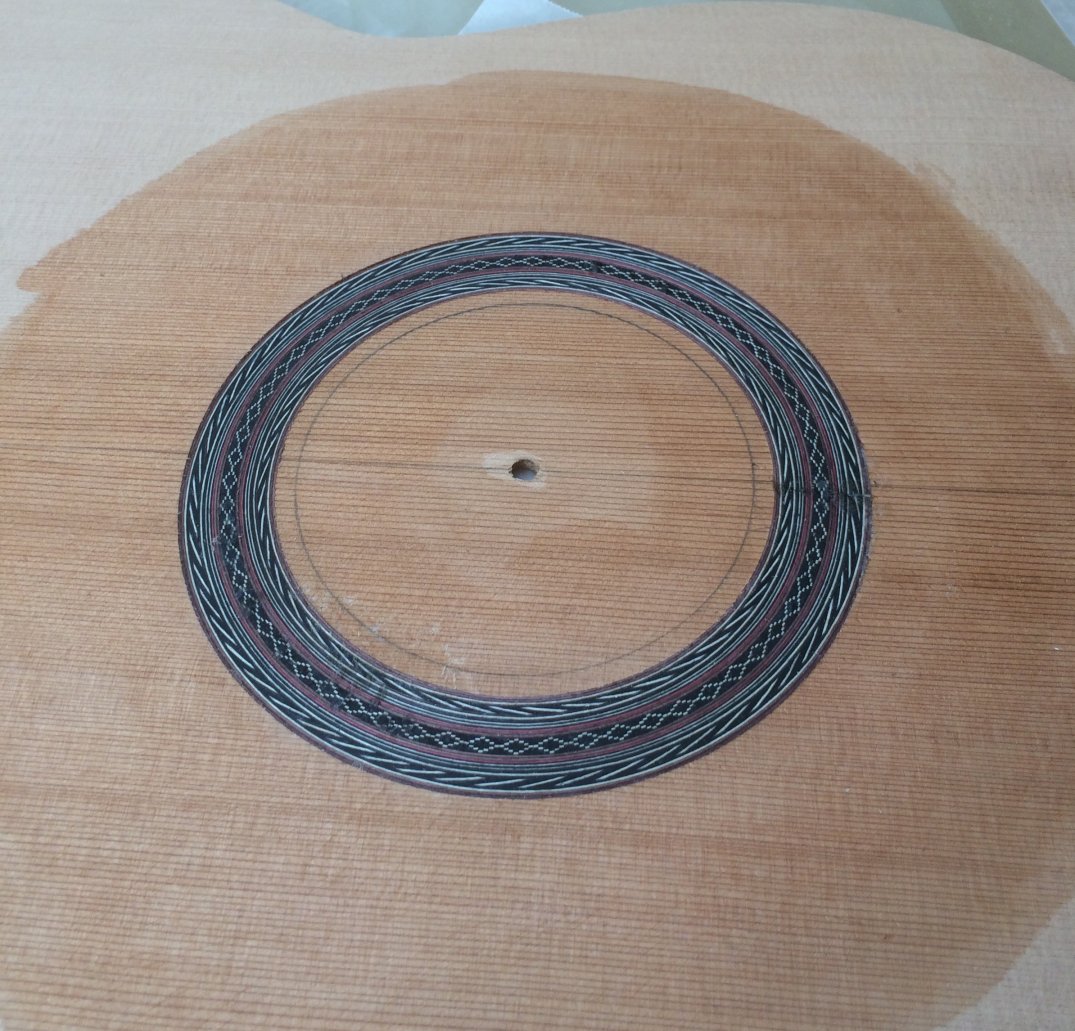

Fitting rosette. |
|
|

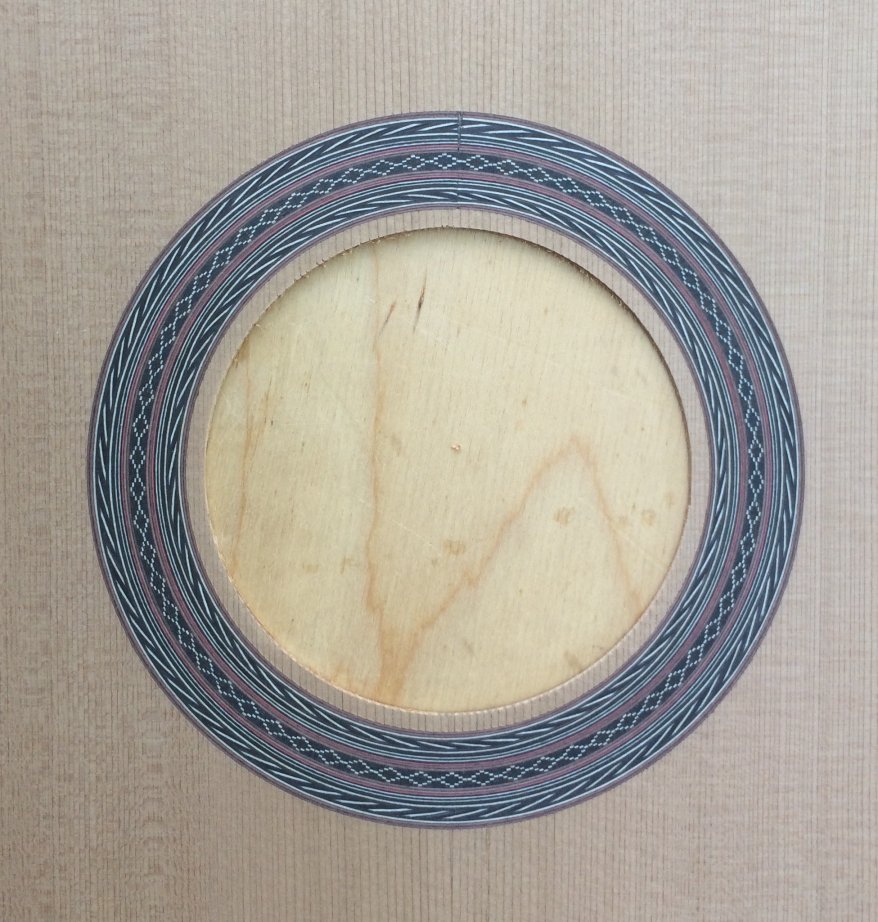

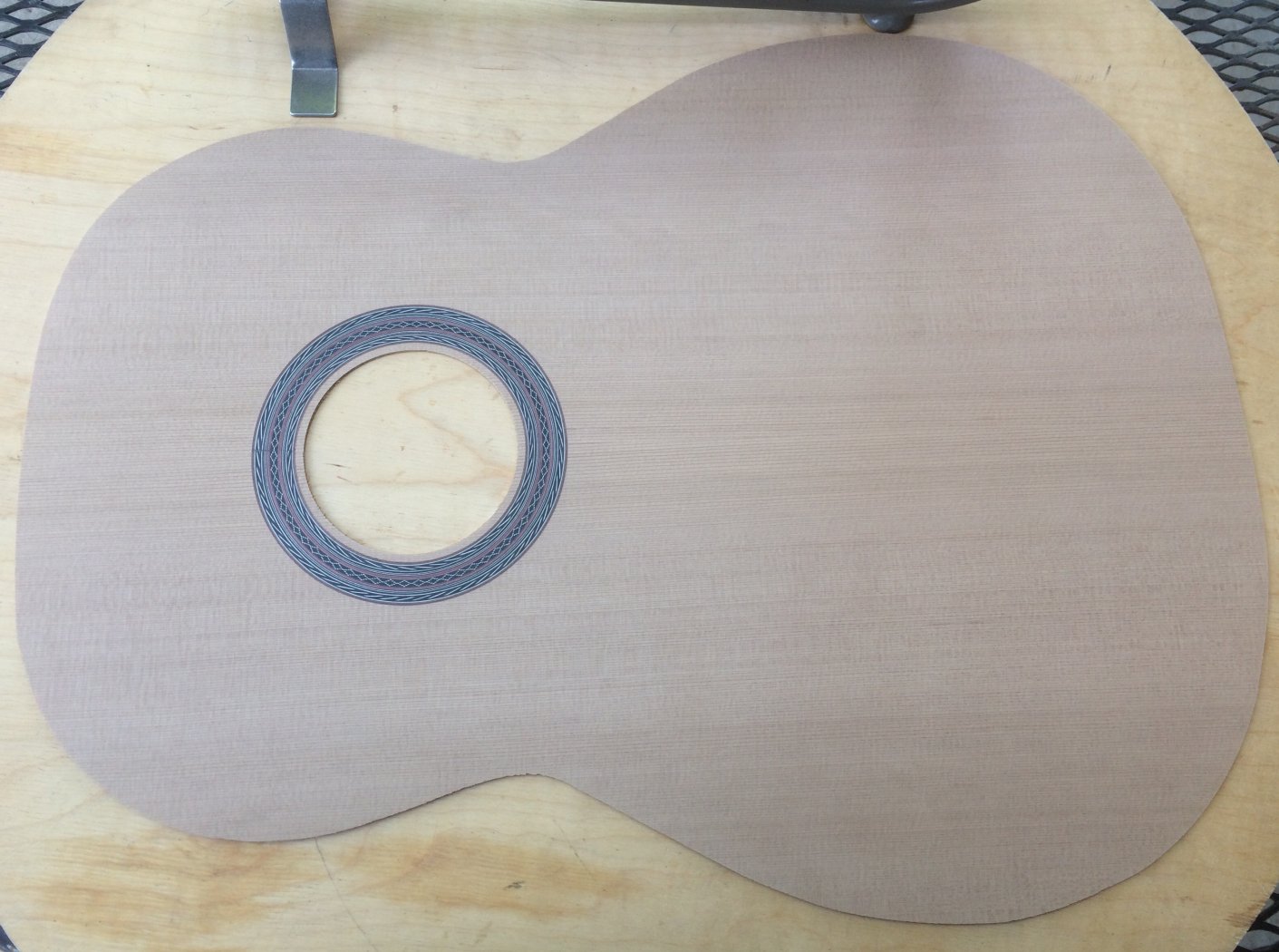

Rosette installed and soundhole cut out. Soundboard thicknessed to 1.2mm thickness. |
|
|
The rosette! |
|
|

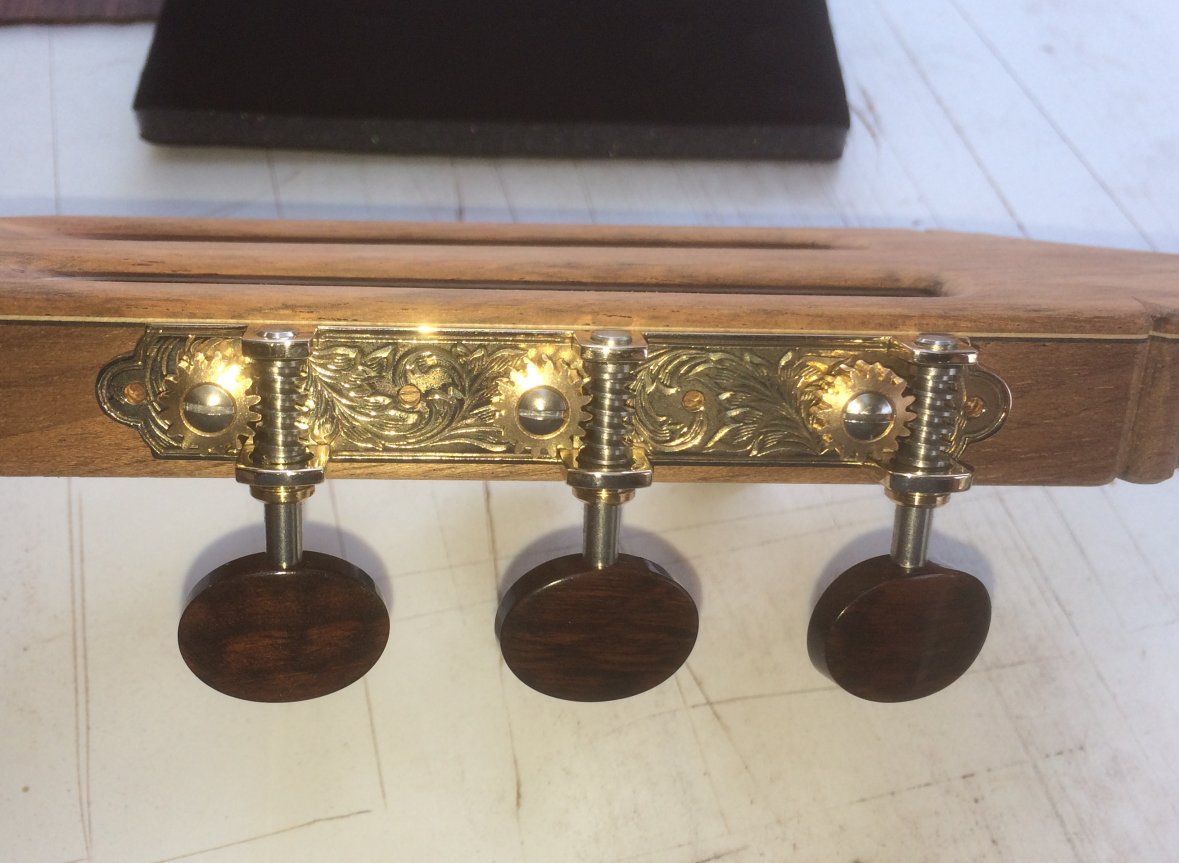

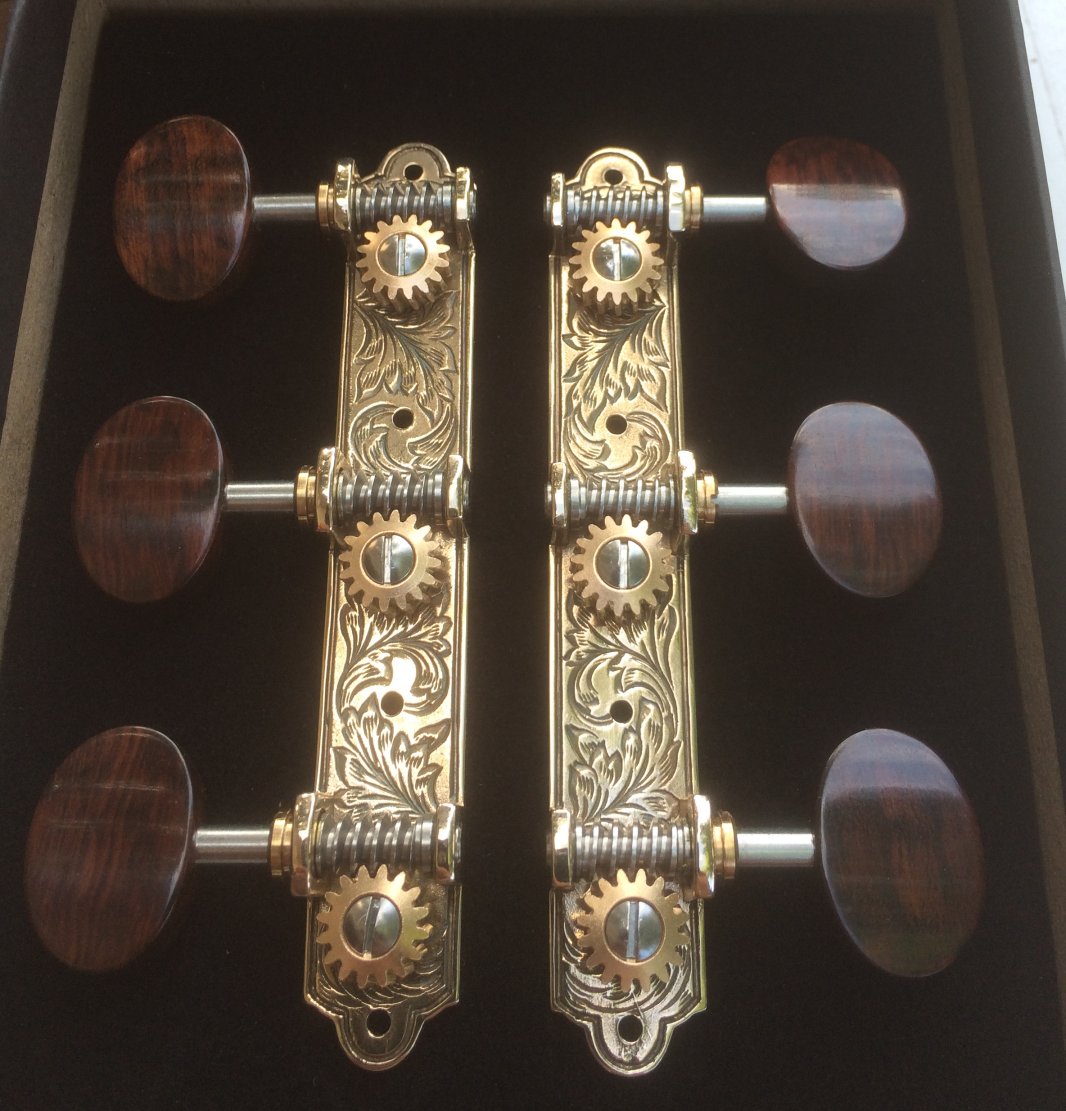

Tuners. |
|
|
Tuners and the head. |
|
|

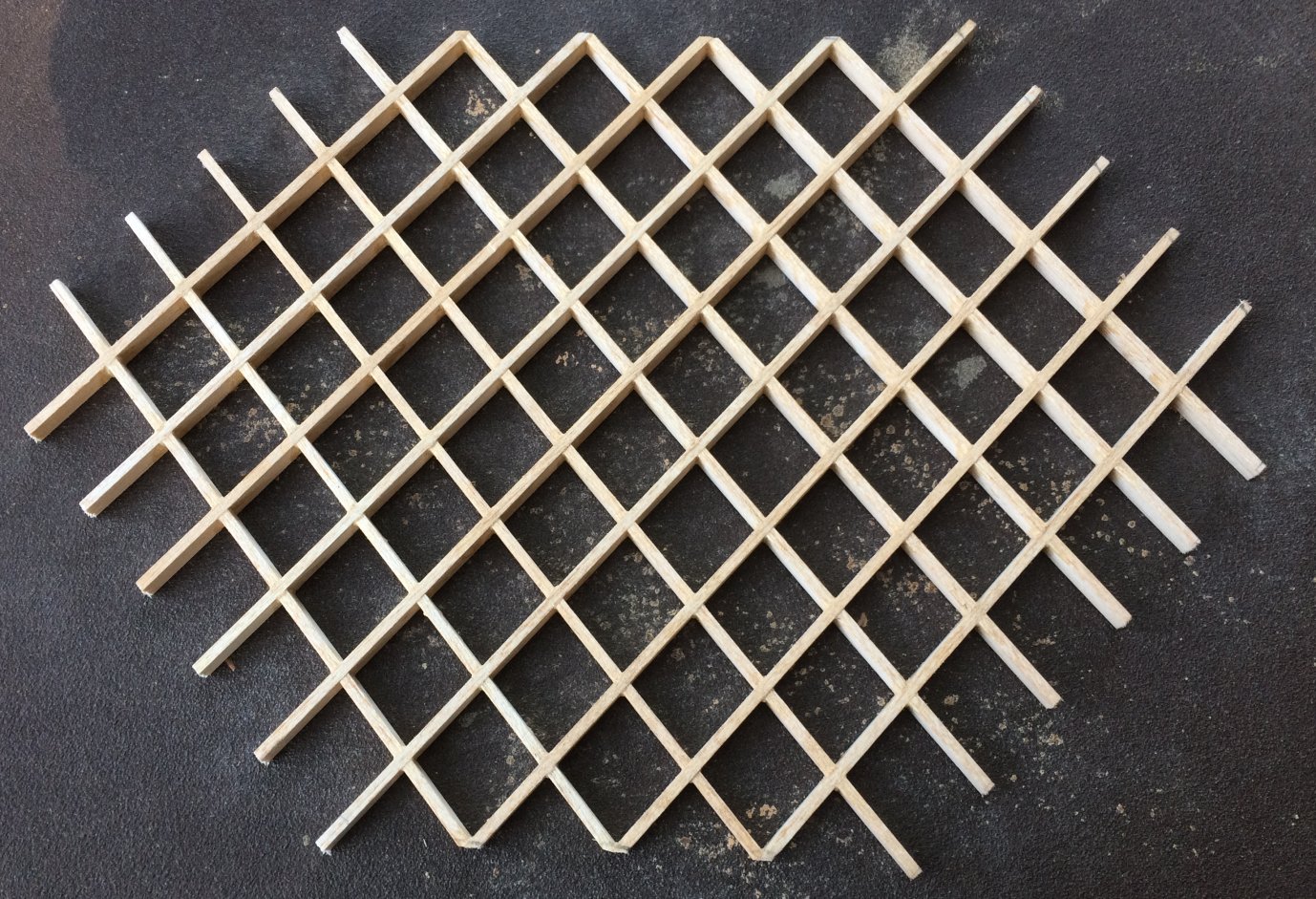

Balsa lattice struts glued up and radiused in the sanding disc. |
|
|

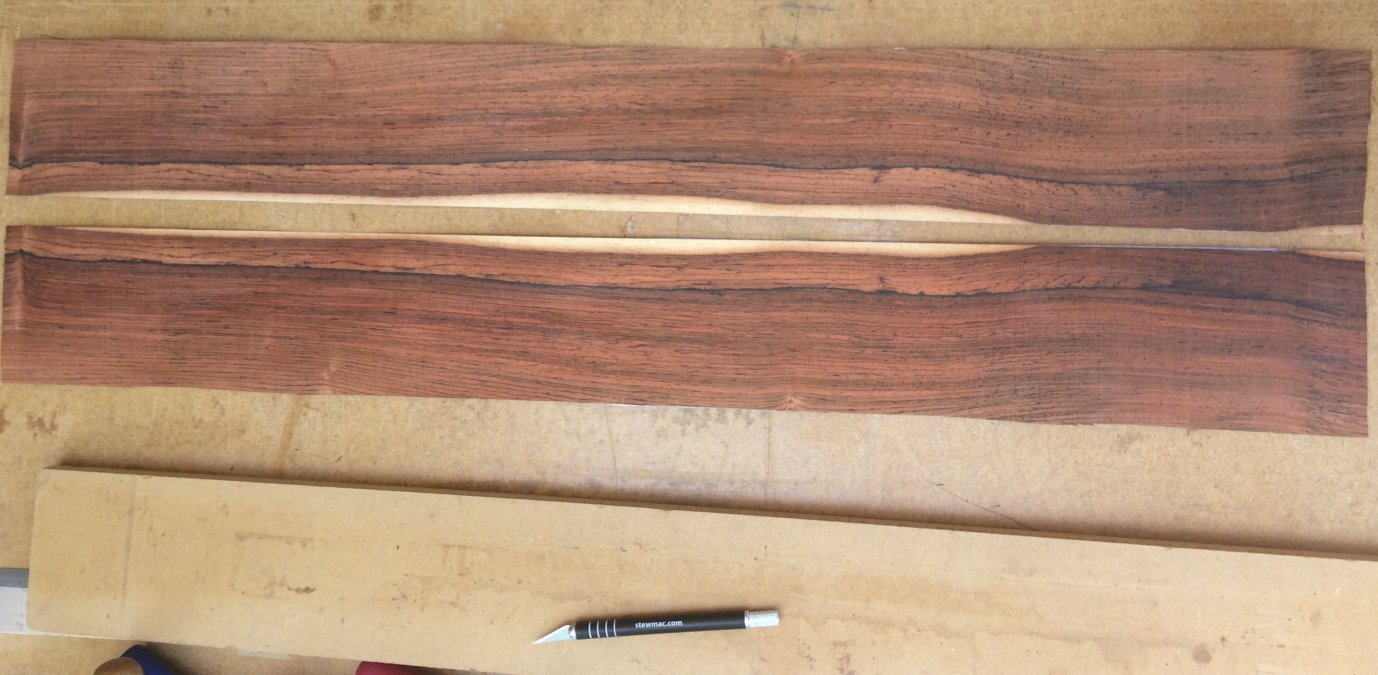

Preparing the sides for lamination. |
|
|
Laminating the sides. |
|
|

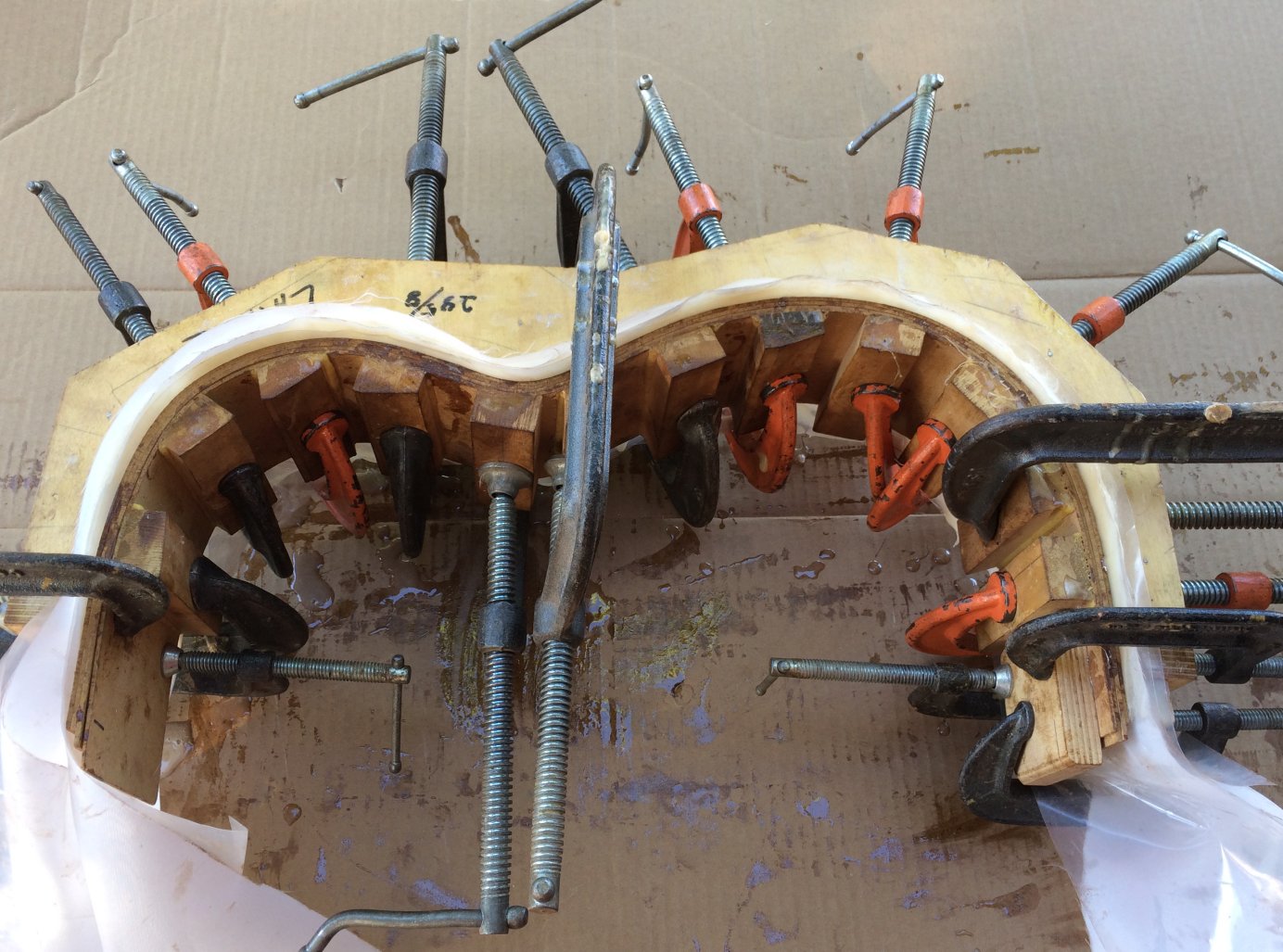

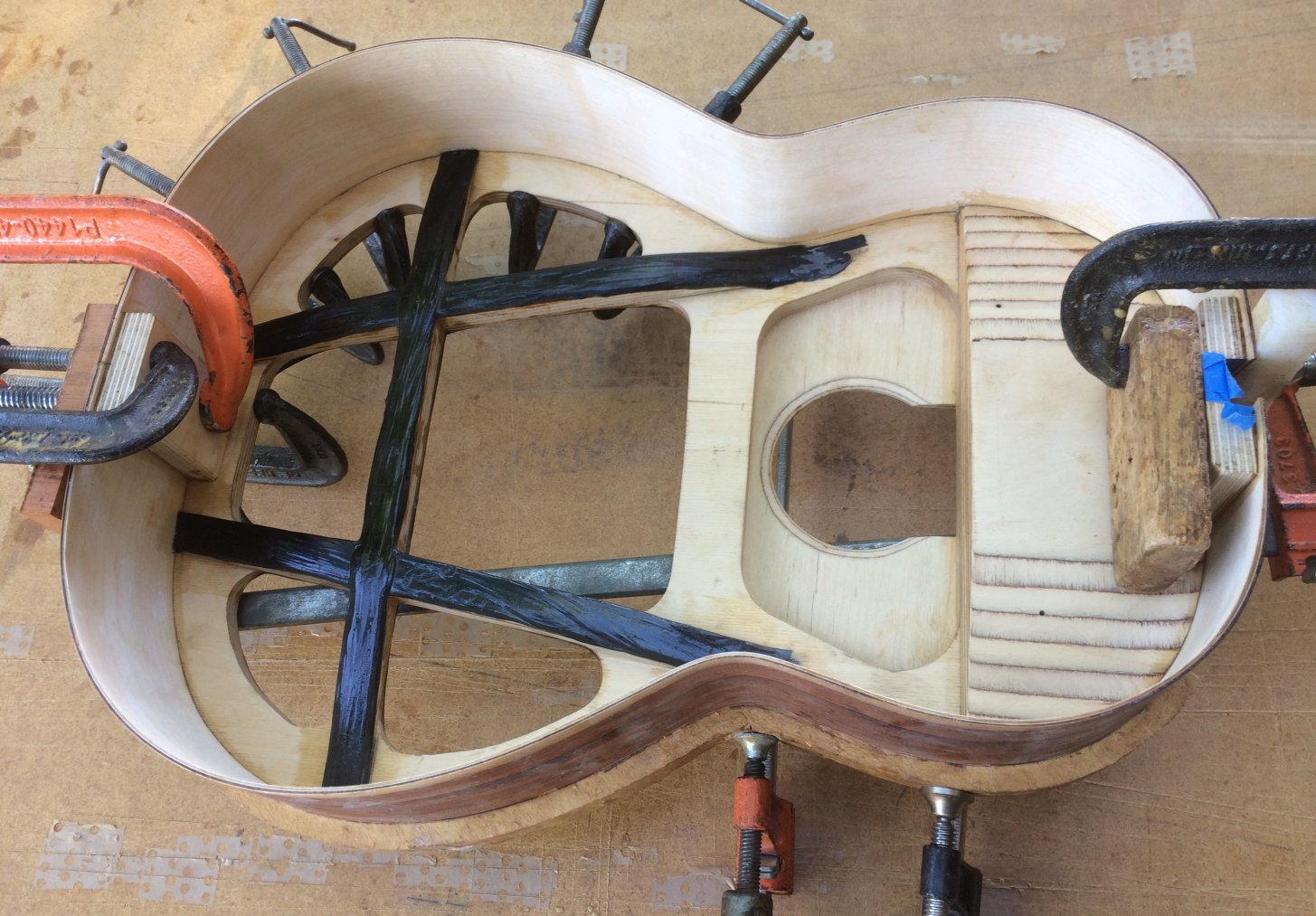

Gluing sides to the frame. |
|
|

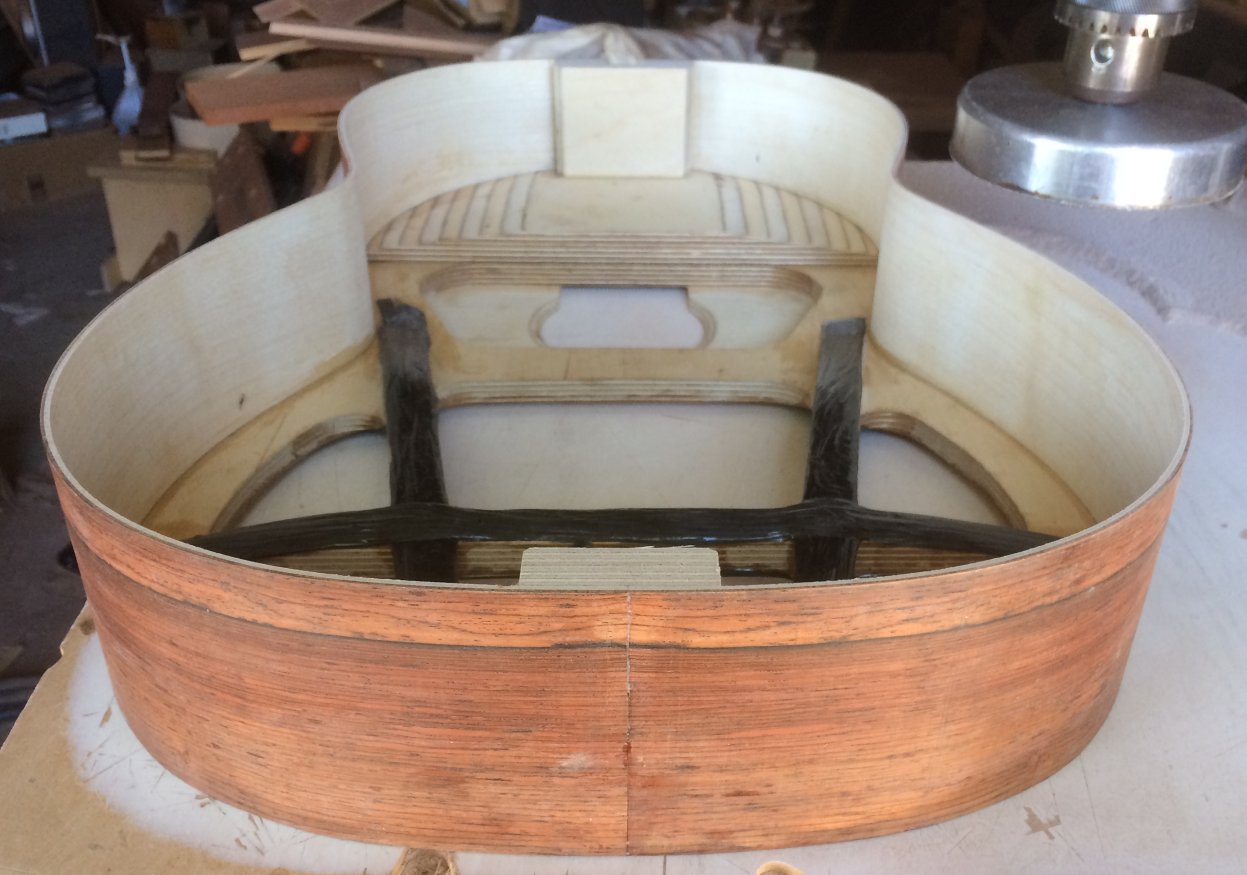

Sides glued on. |
|
|

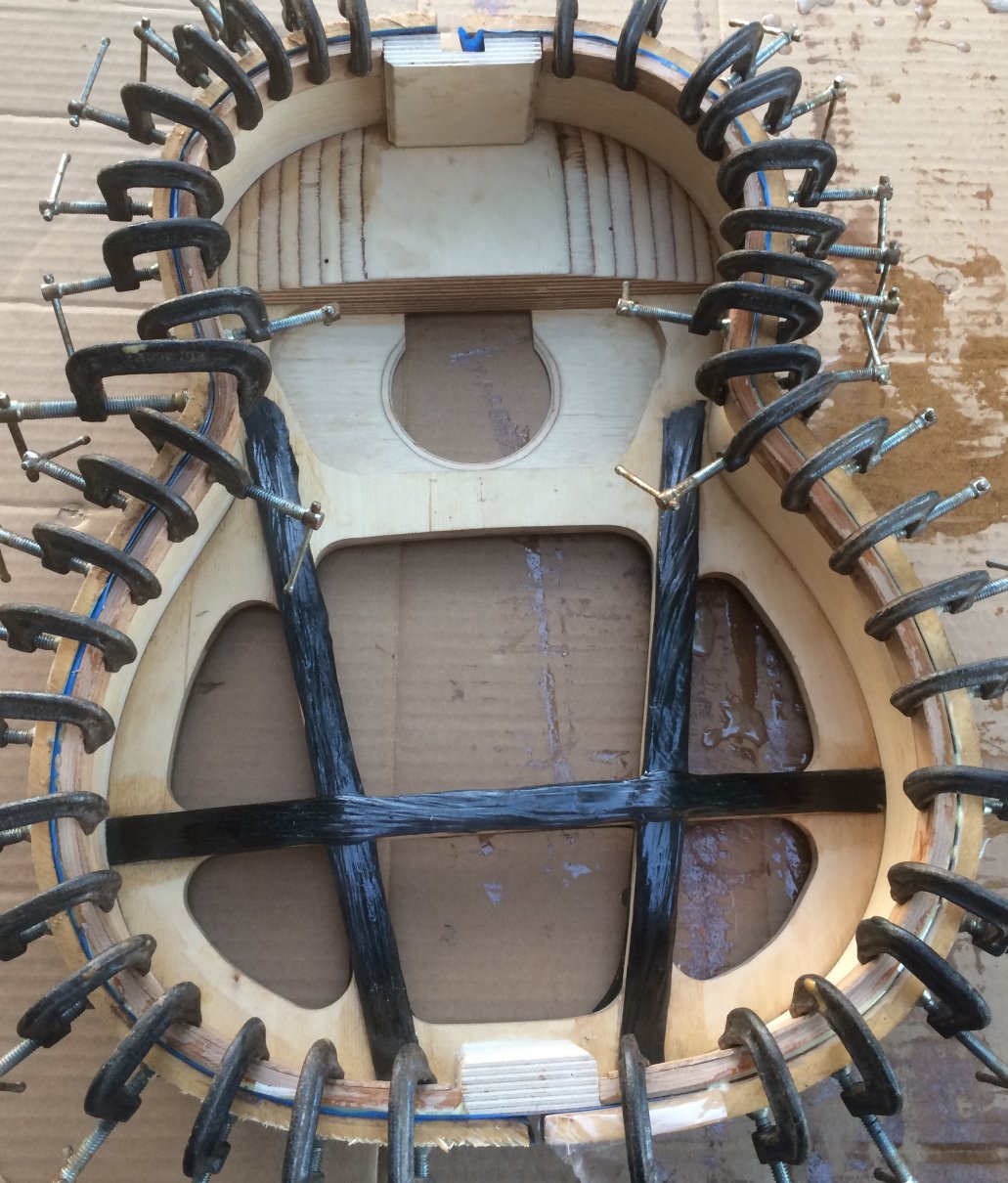

Gluing back lining onto sides. |
|
|

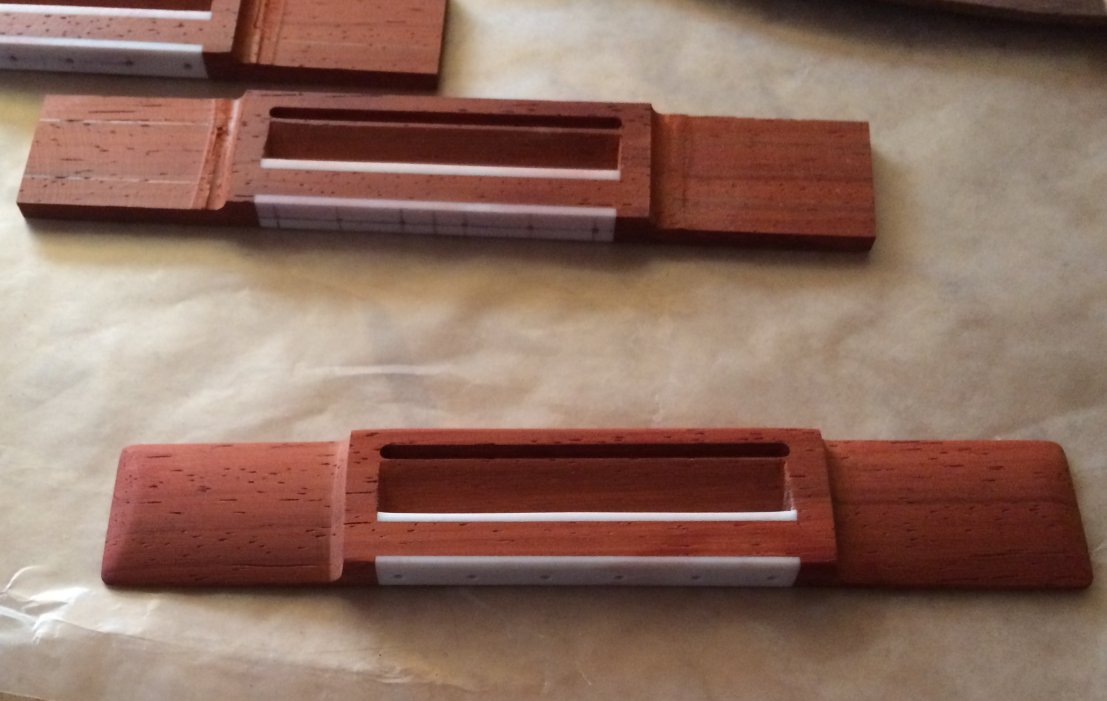

Making the bridge. |
|
|

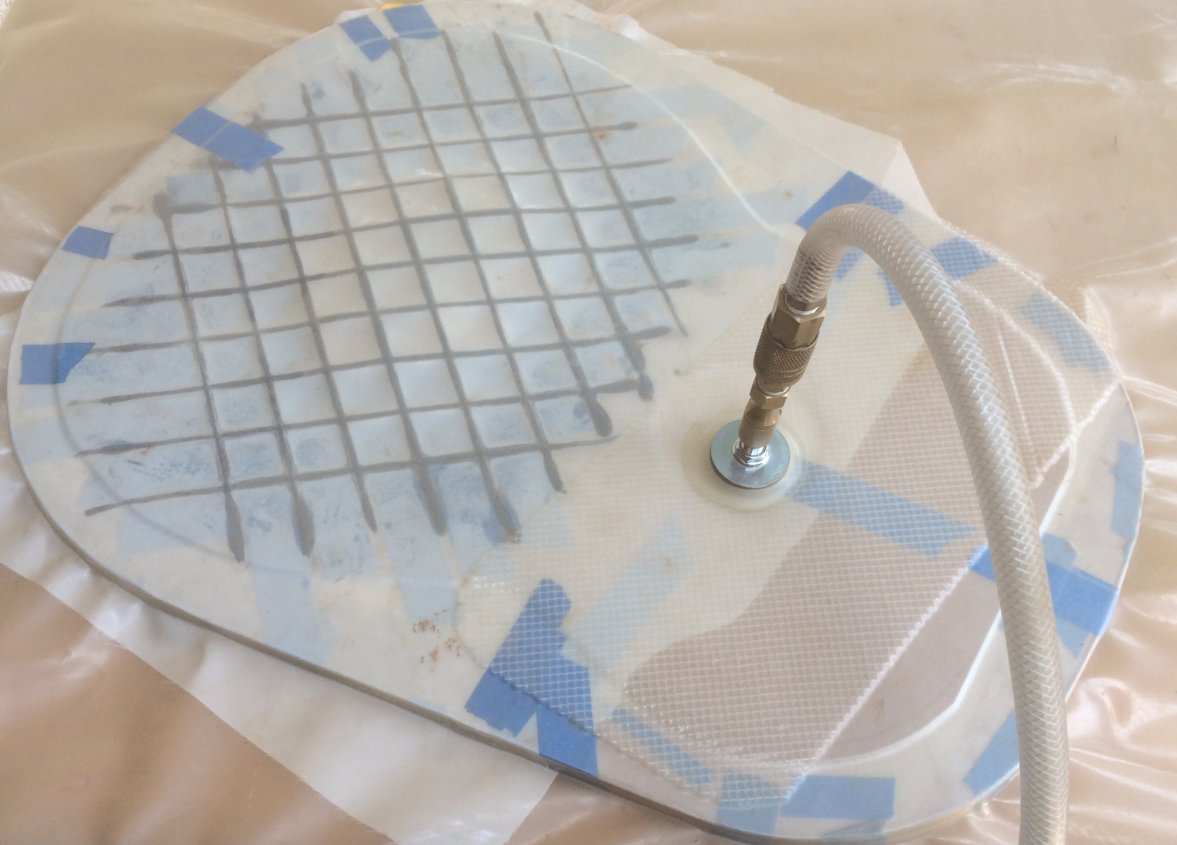

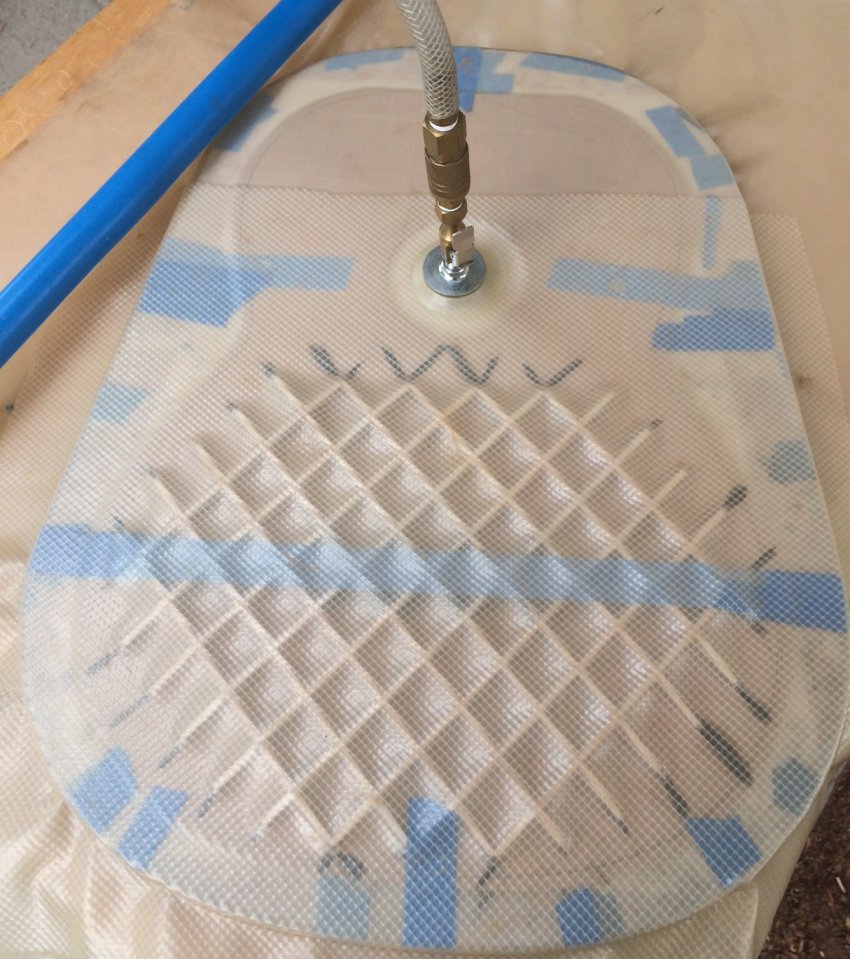

Vacuum clamping balsa lattice and carbon fiber tow. |
|
|

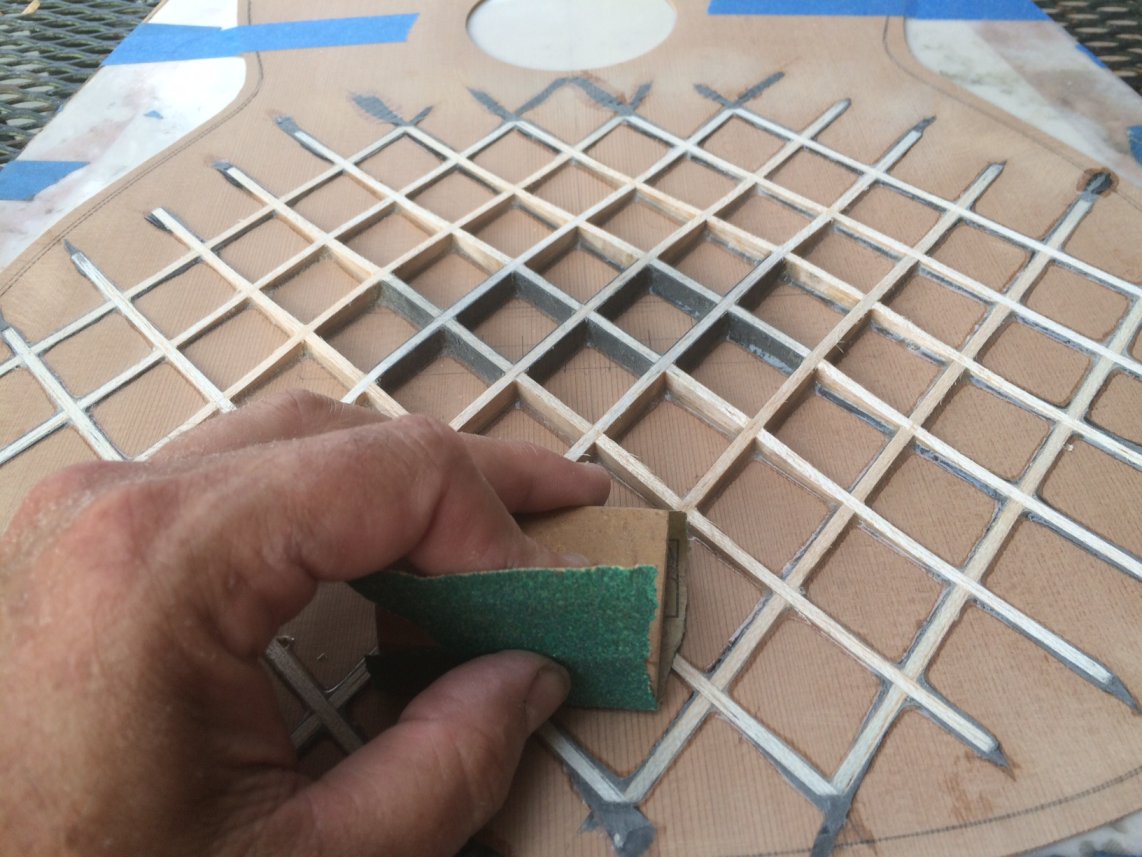

Shaping the lattice. |
|
|
Final shape. Ready to be capped with carbon fiber. |
|
|

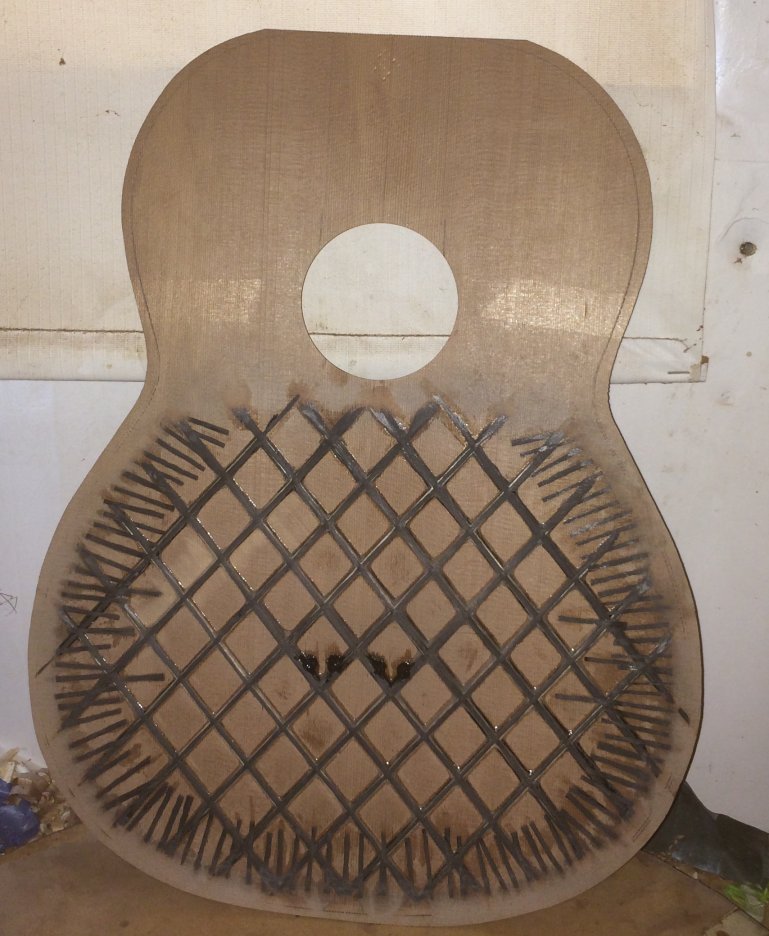

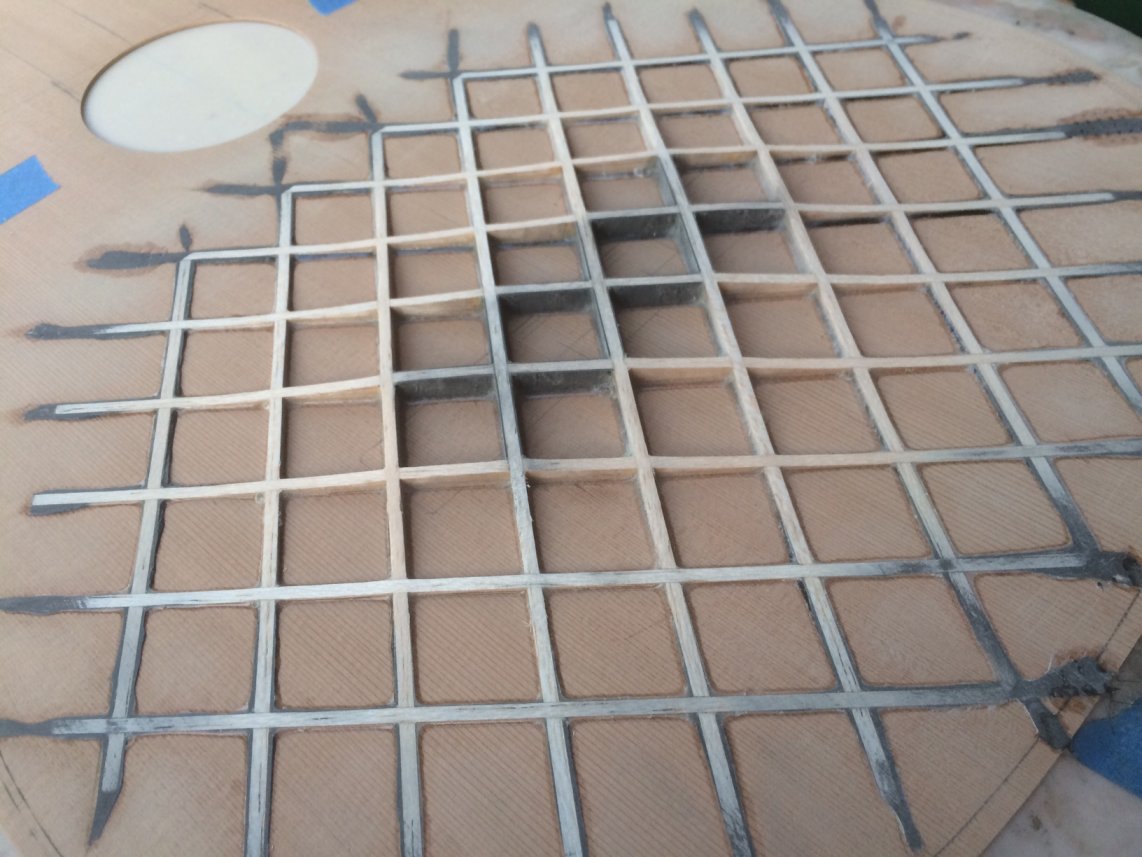

Capping the lattice with 6K carbon fiber tow. |
|
|
Bridge glued on soundboard and pinned to bracing with carbon fiber pins and milled carbon fiber and epoxy.Ready to glue onto the body. |
|
|

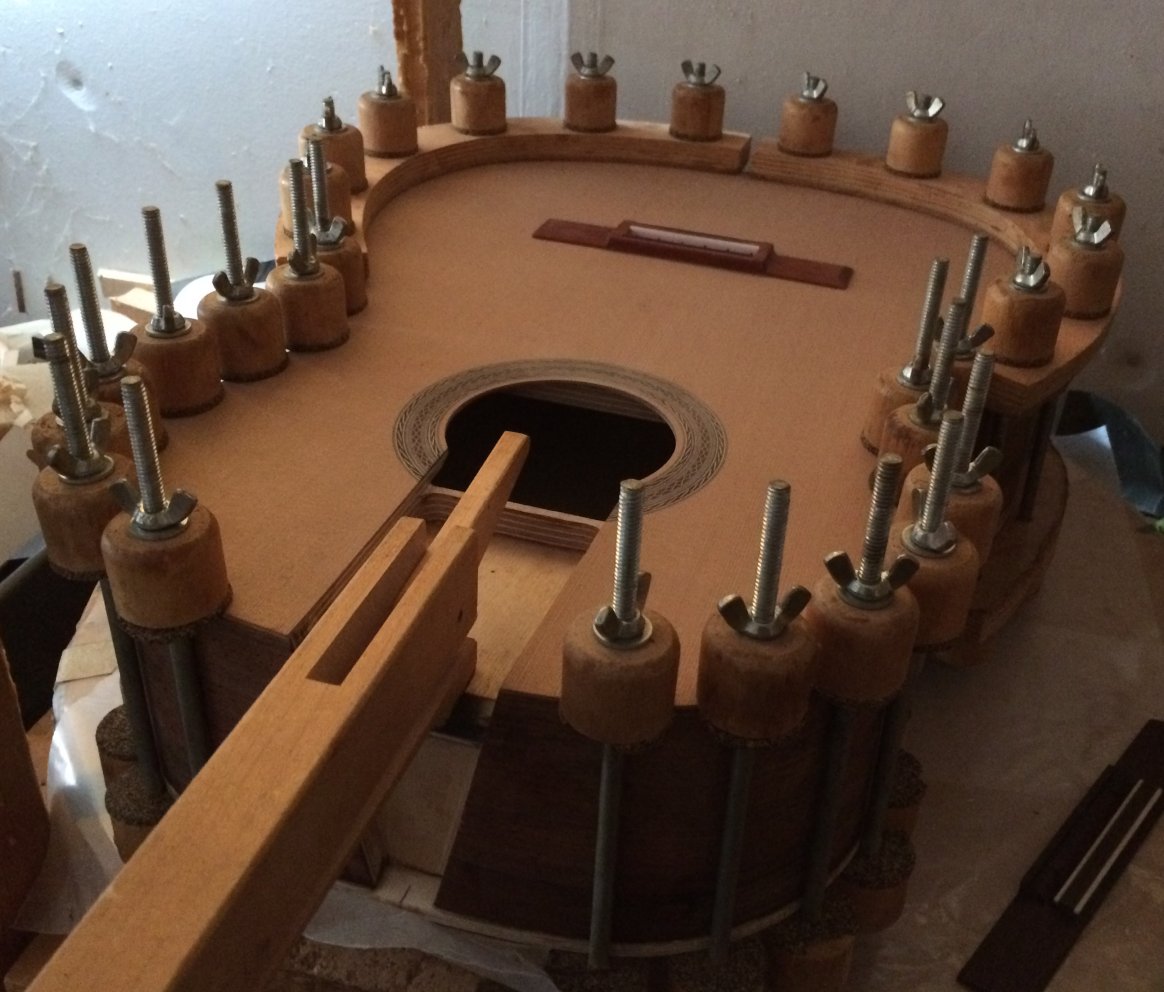

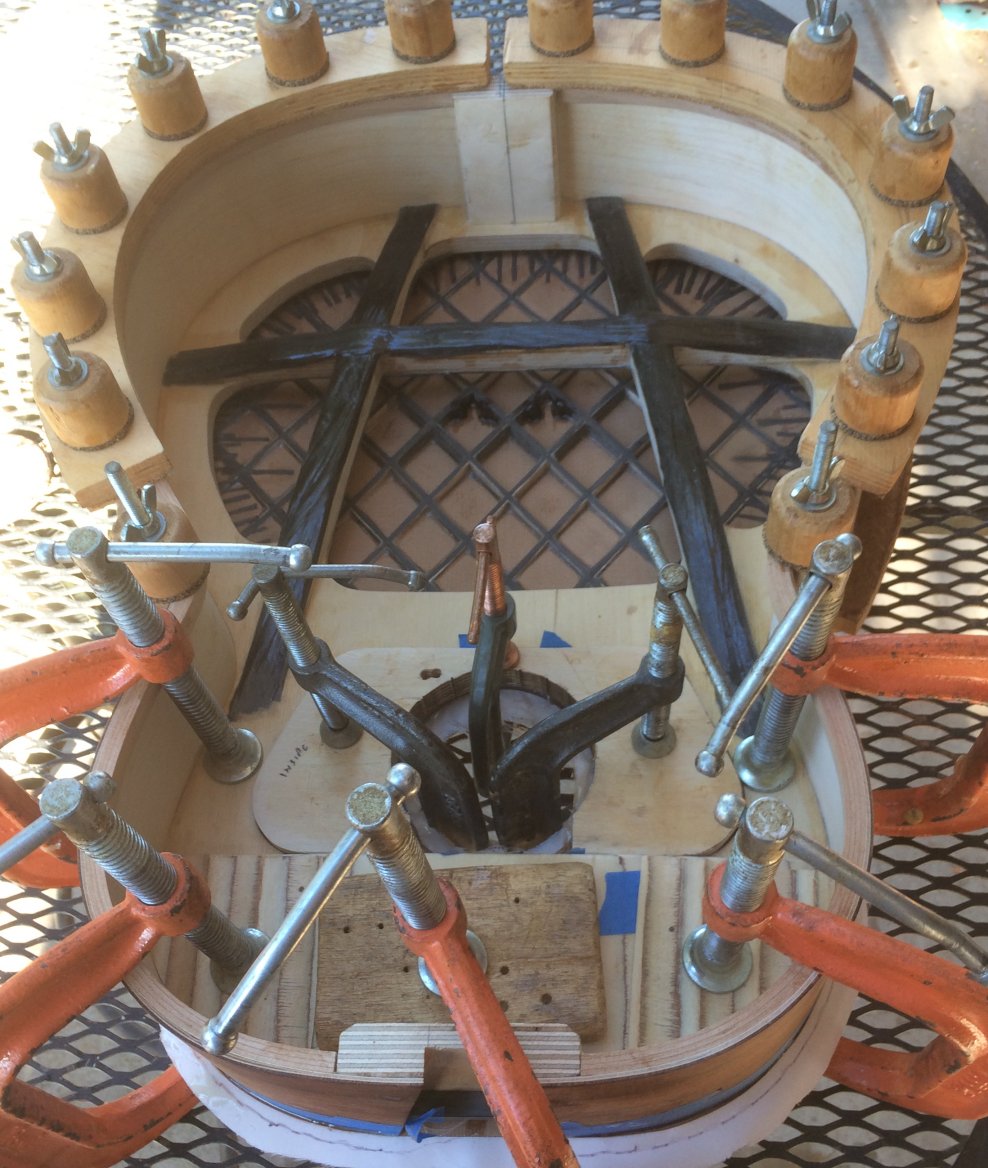

Gluing soundboard to body. |
|
|
Fitting and gluing heel block onto neck shaft for adjustable neck feature. |
|
|

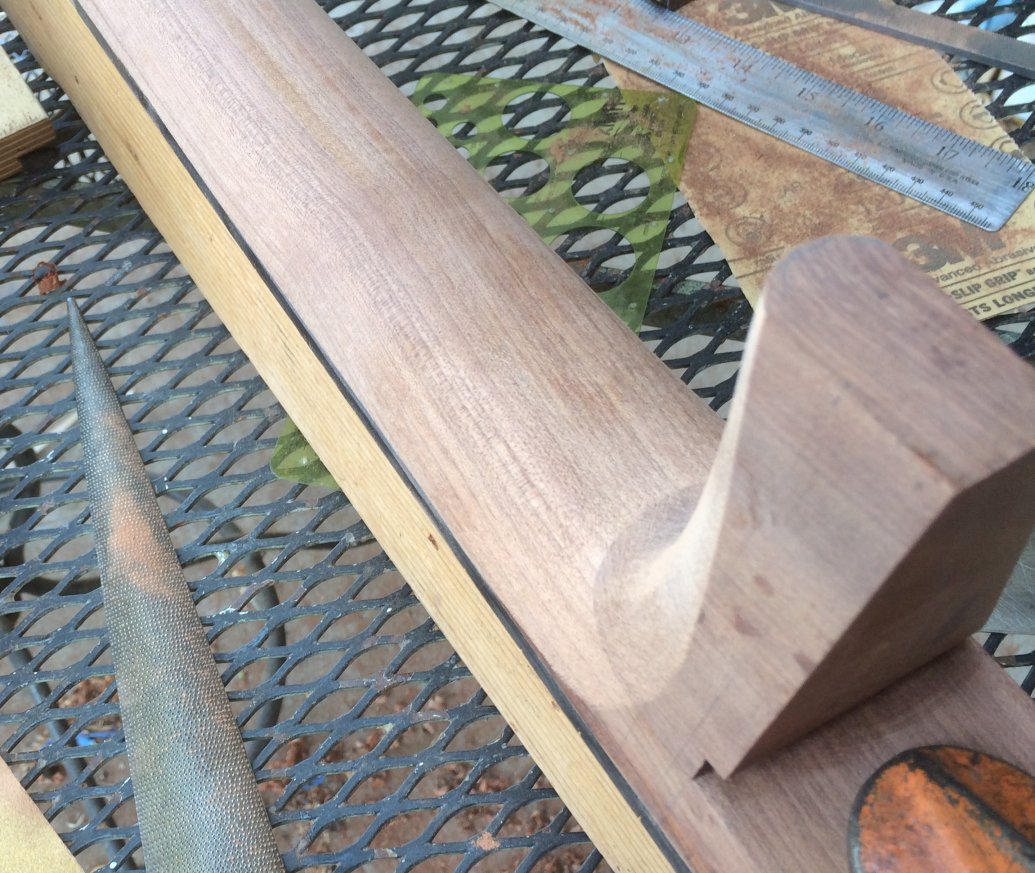

Shaping the neck. |
|
|

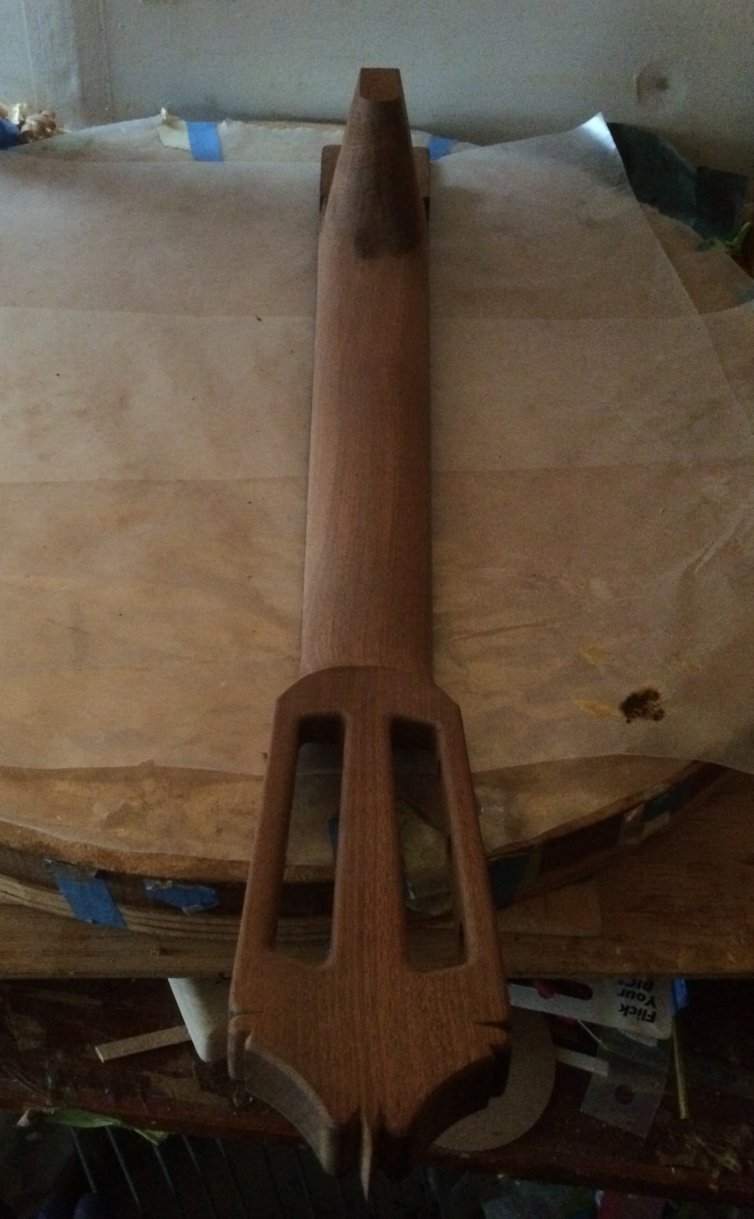

Shaping neck. |
|
|

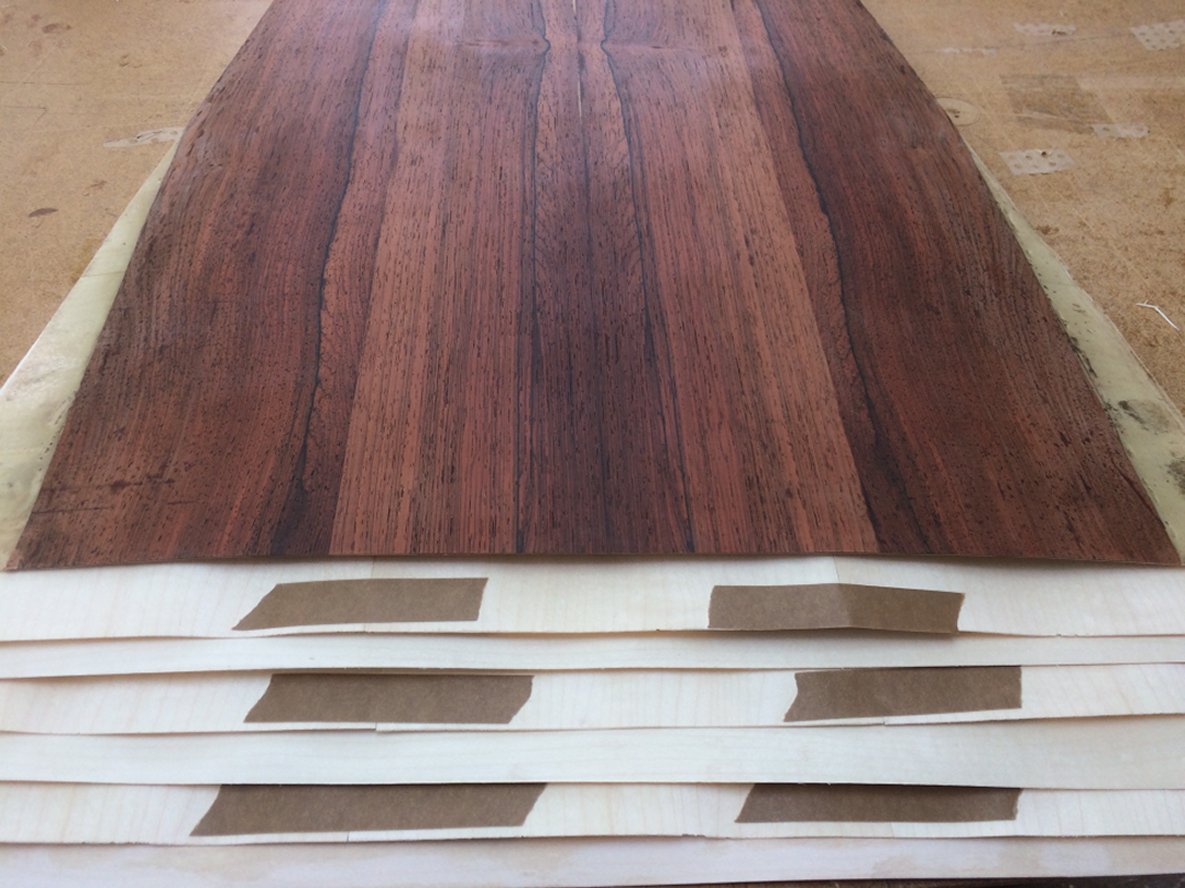

Preparing back veneer lamination. 9 ply for 6mm total thickness. |
|
|

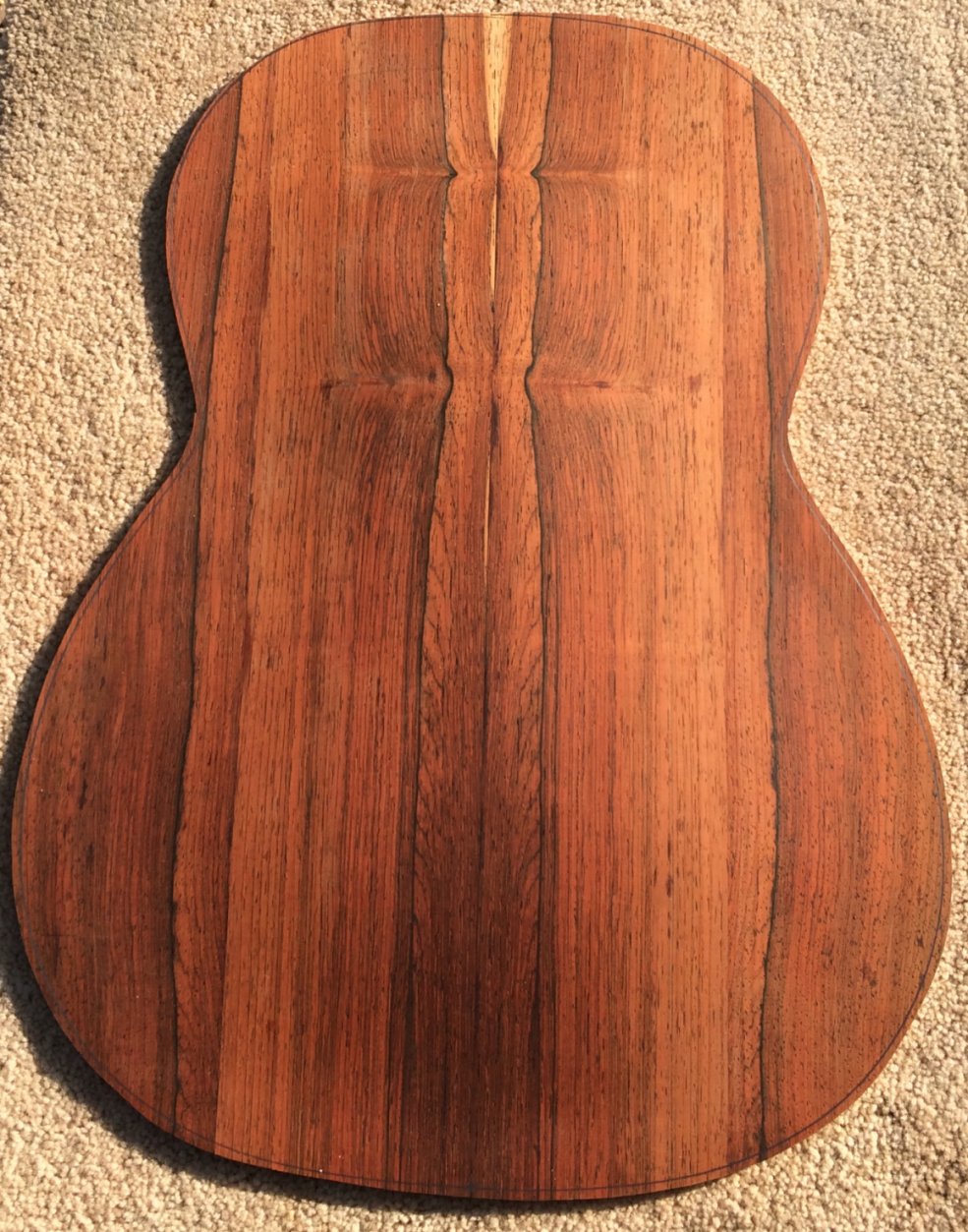

Back laminated and ready to be glued to the body. |
|
|
Back glued on. |
|
|

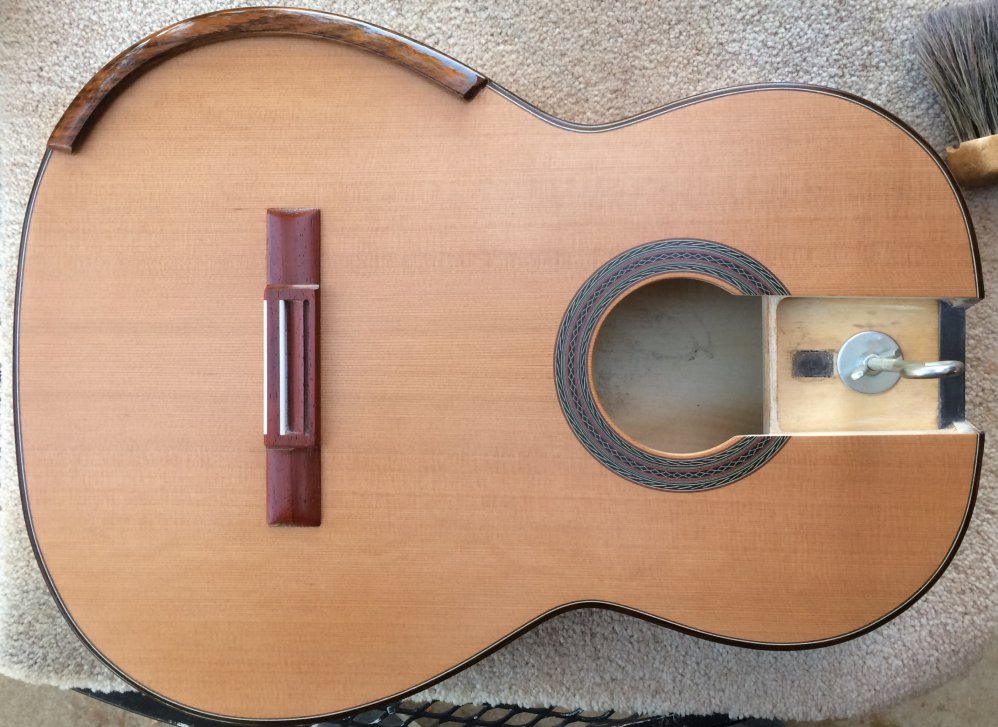

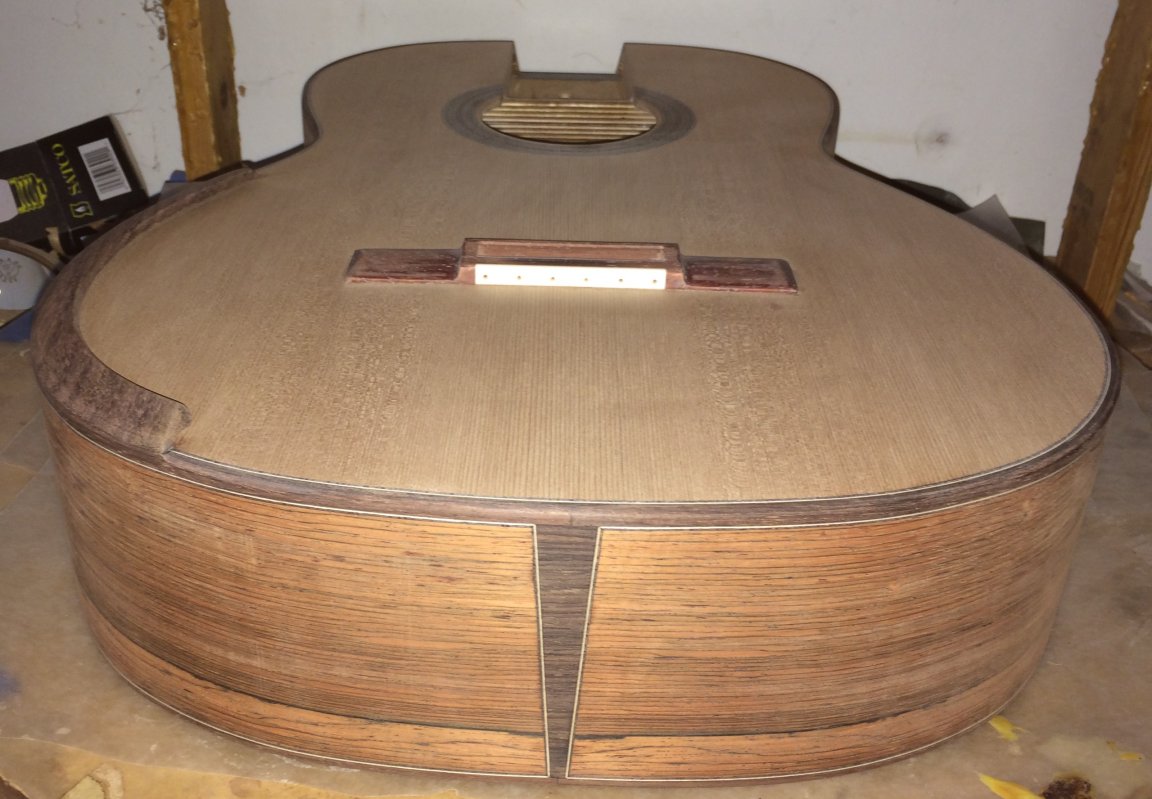

Body final sanding getting ready for finish application. |
|
|

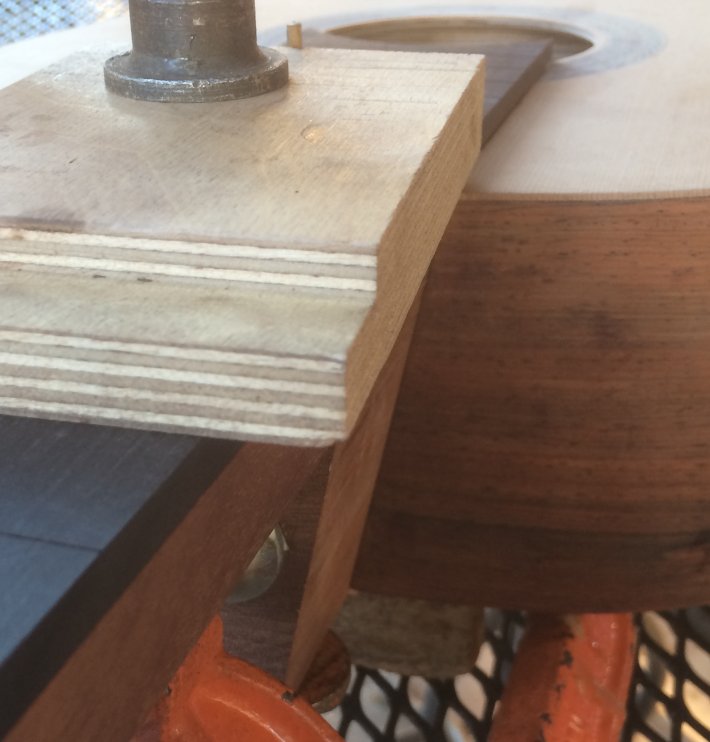

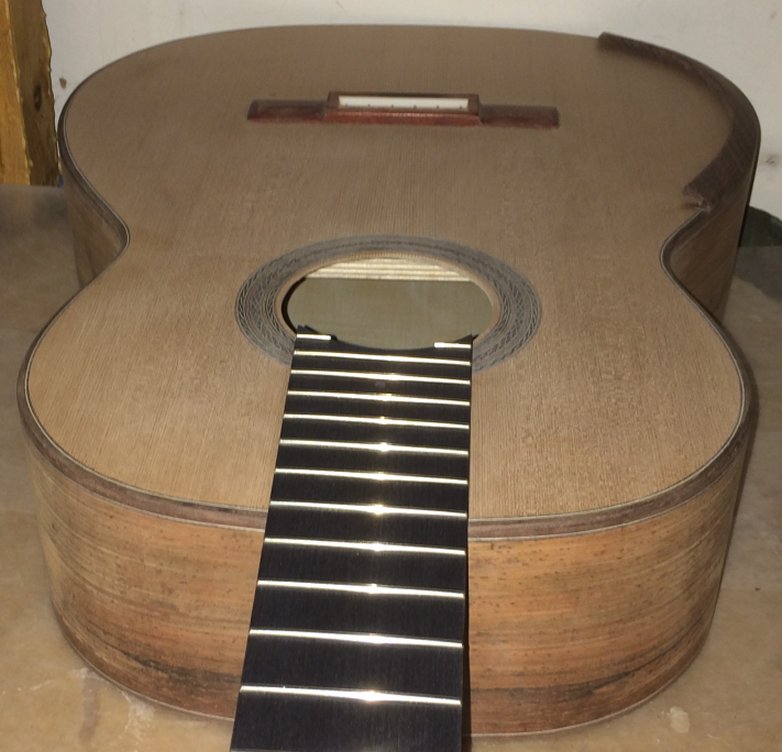

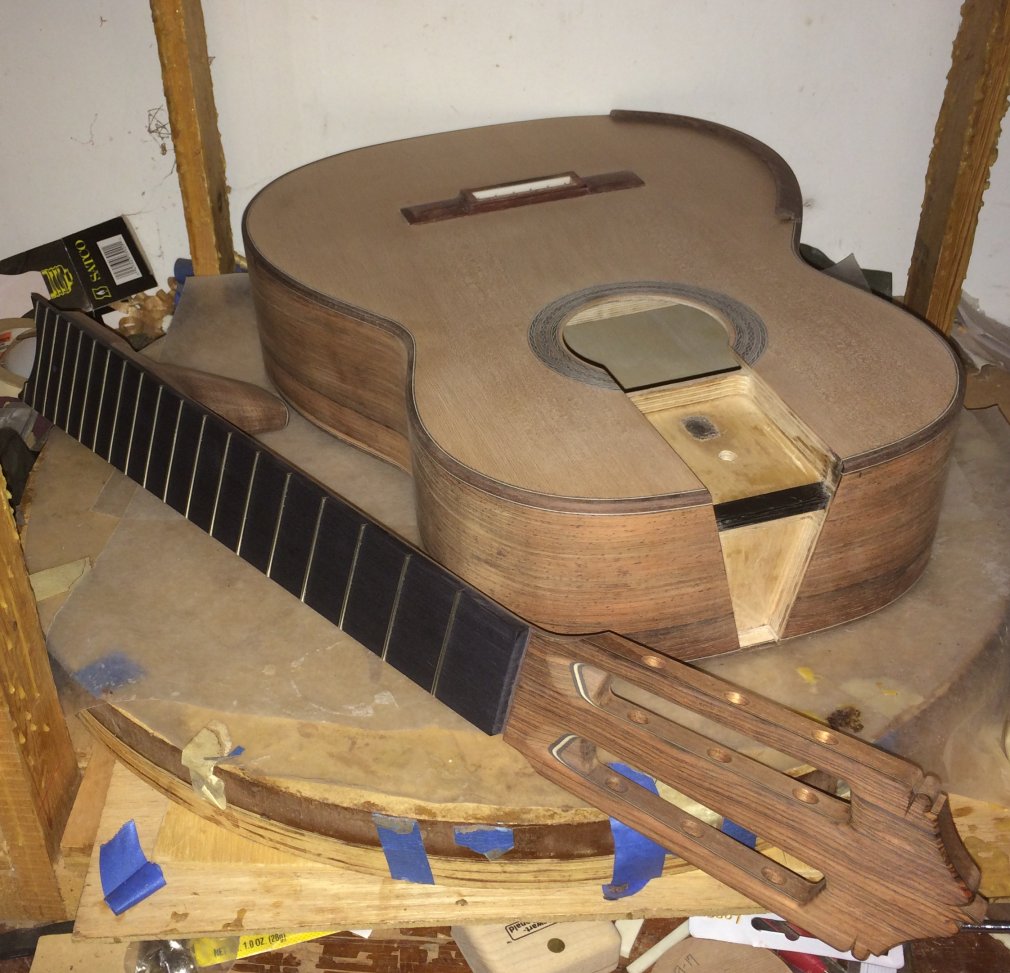

Fitting the neck. |
|
|
Final fitting and sanding of the neck. |
|
|

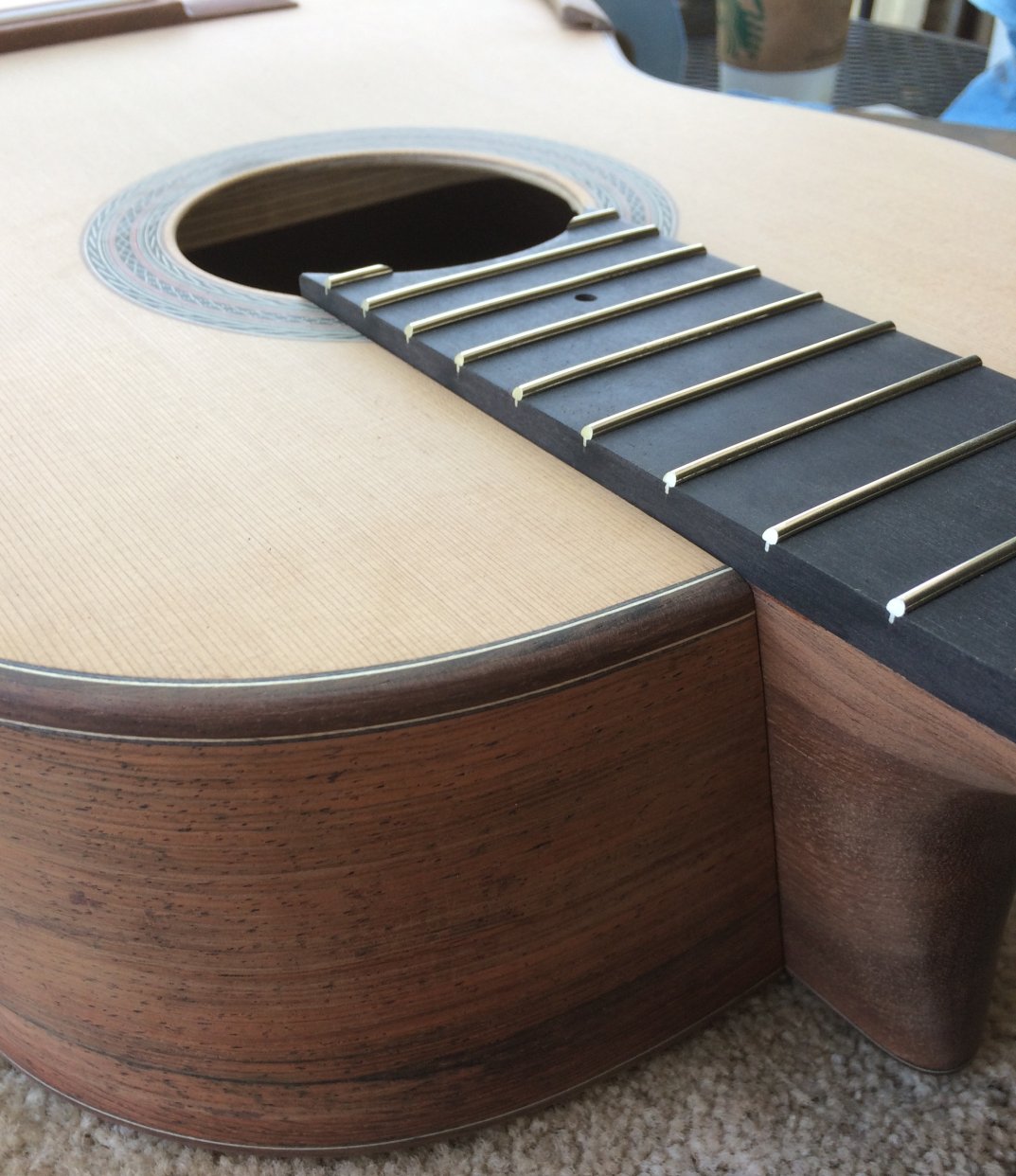

Final fitting. |
|
|

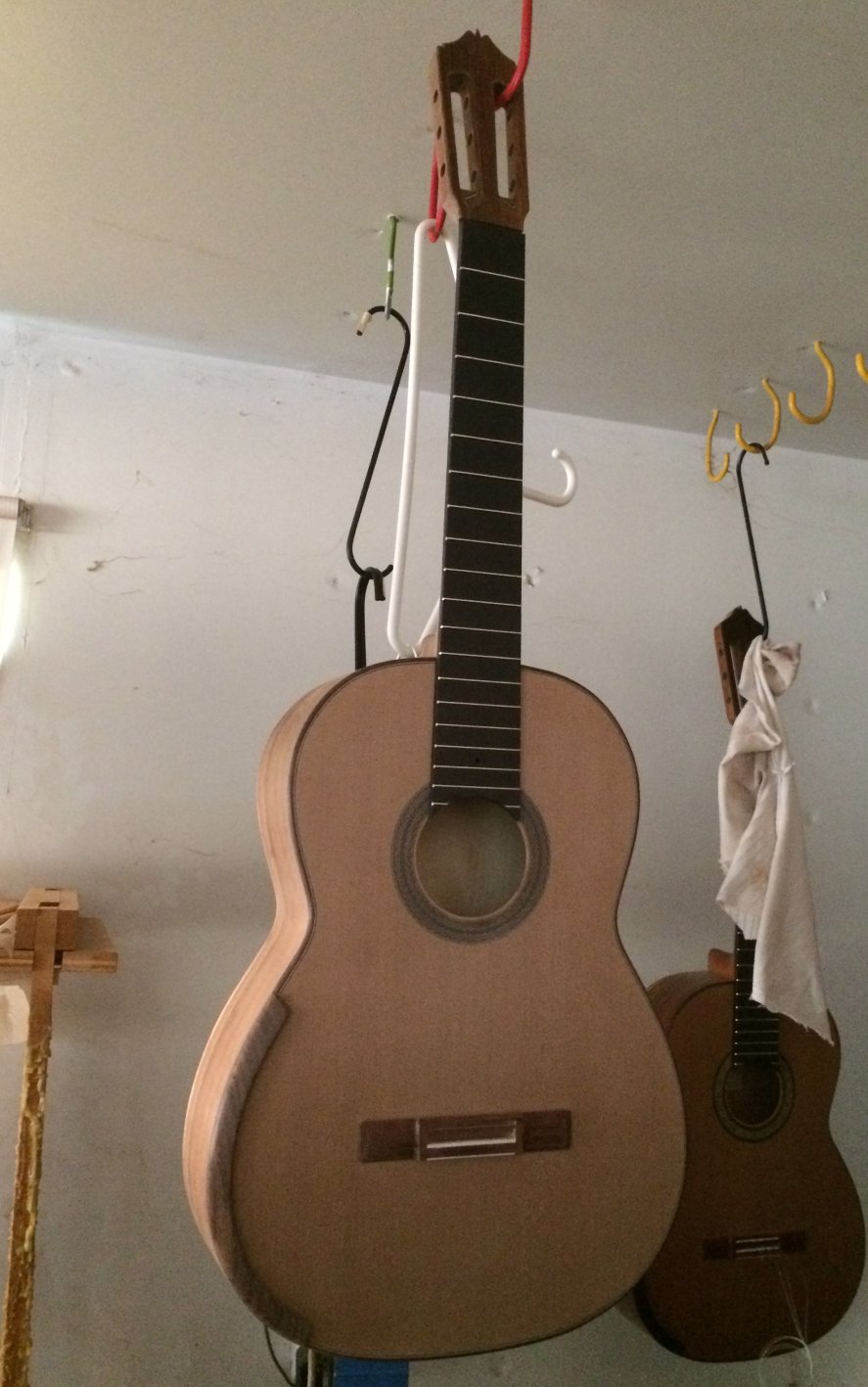

Final sanding. Ready for the finish. |
|
|

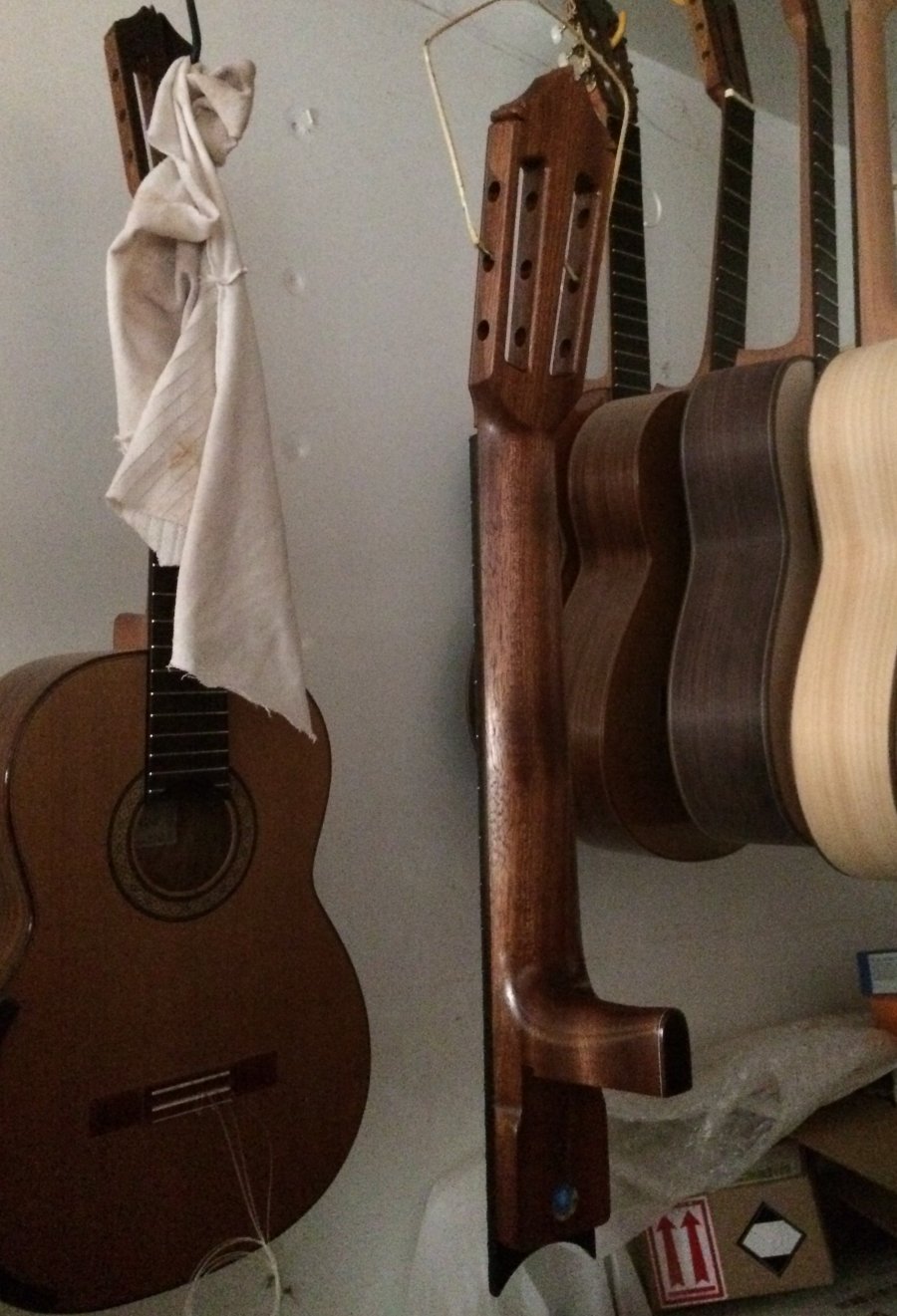

Finishing the neck. First coat. |
|
|
Finishing the body. First coat. |
|
|

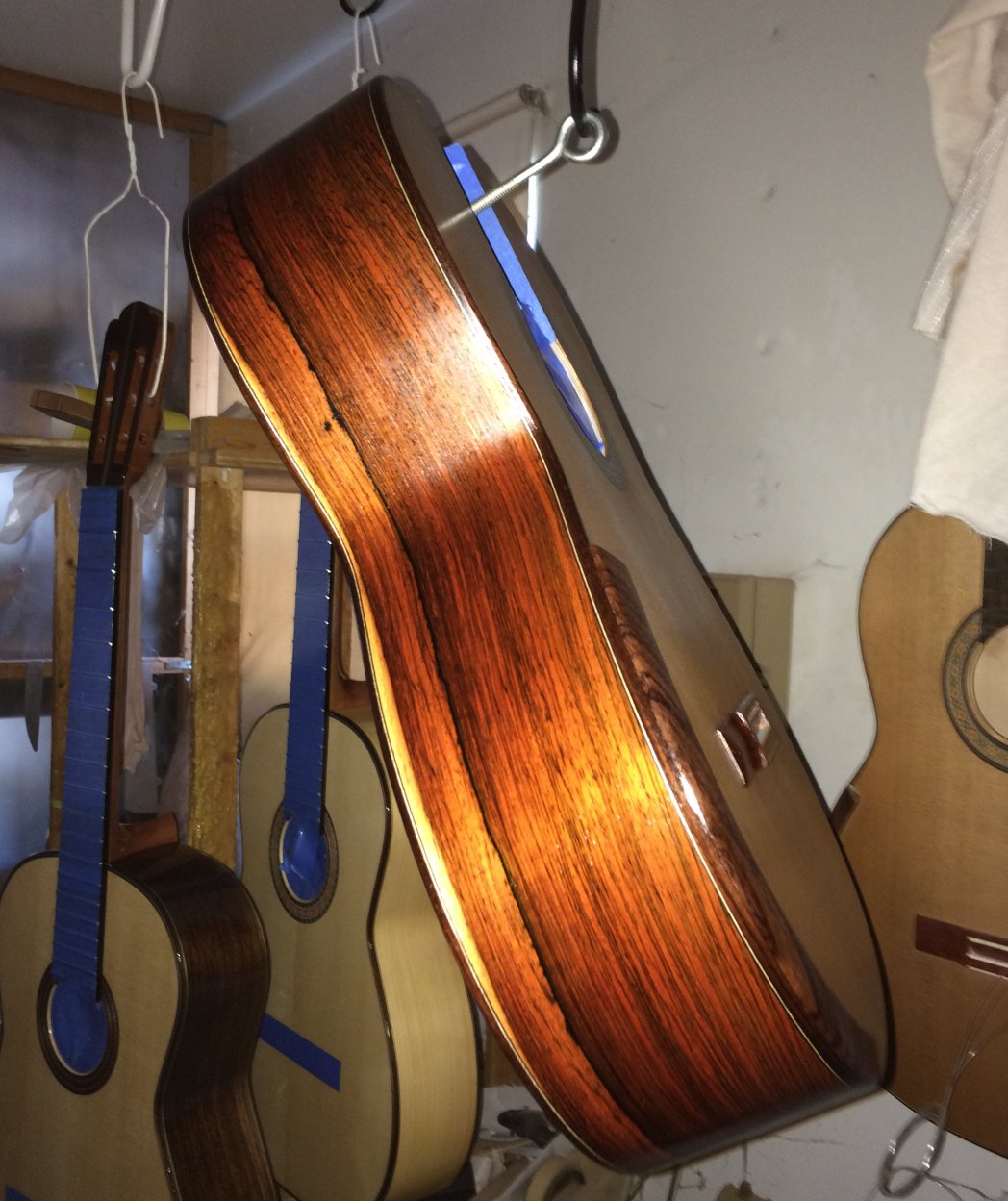

Sides with first coat of finish. |
|
|

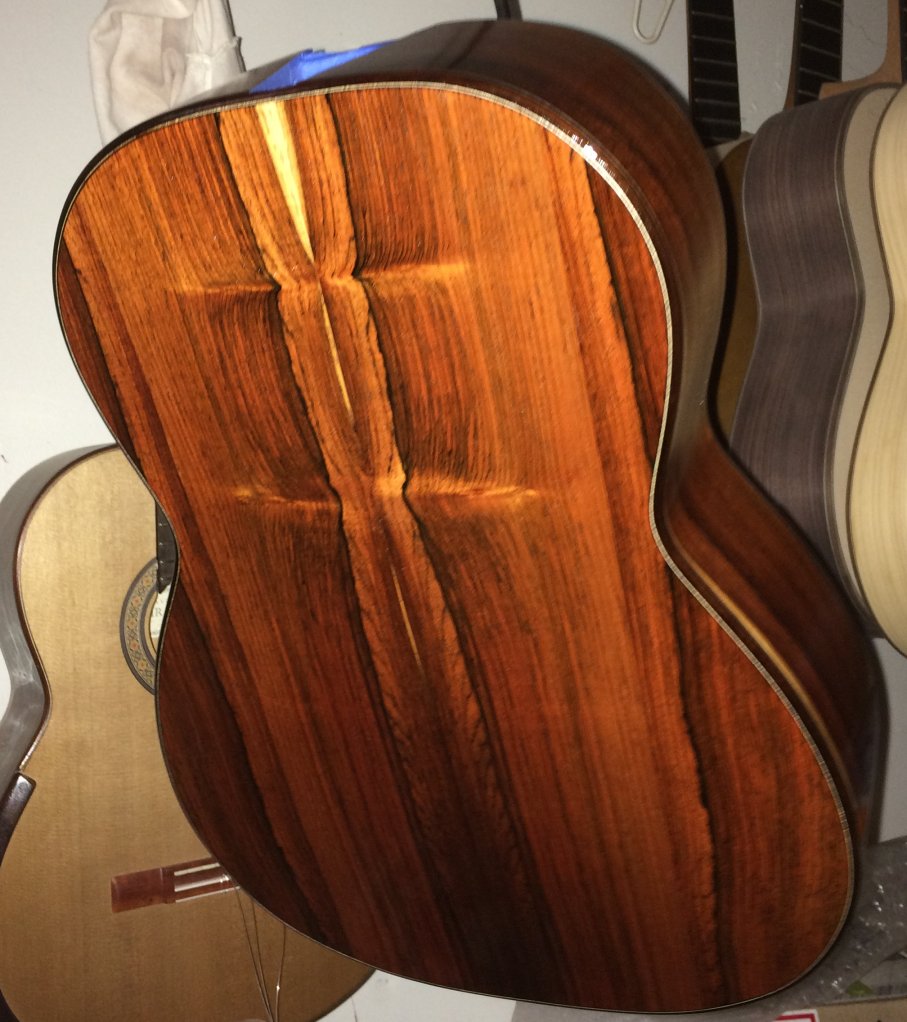

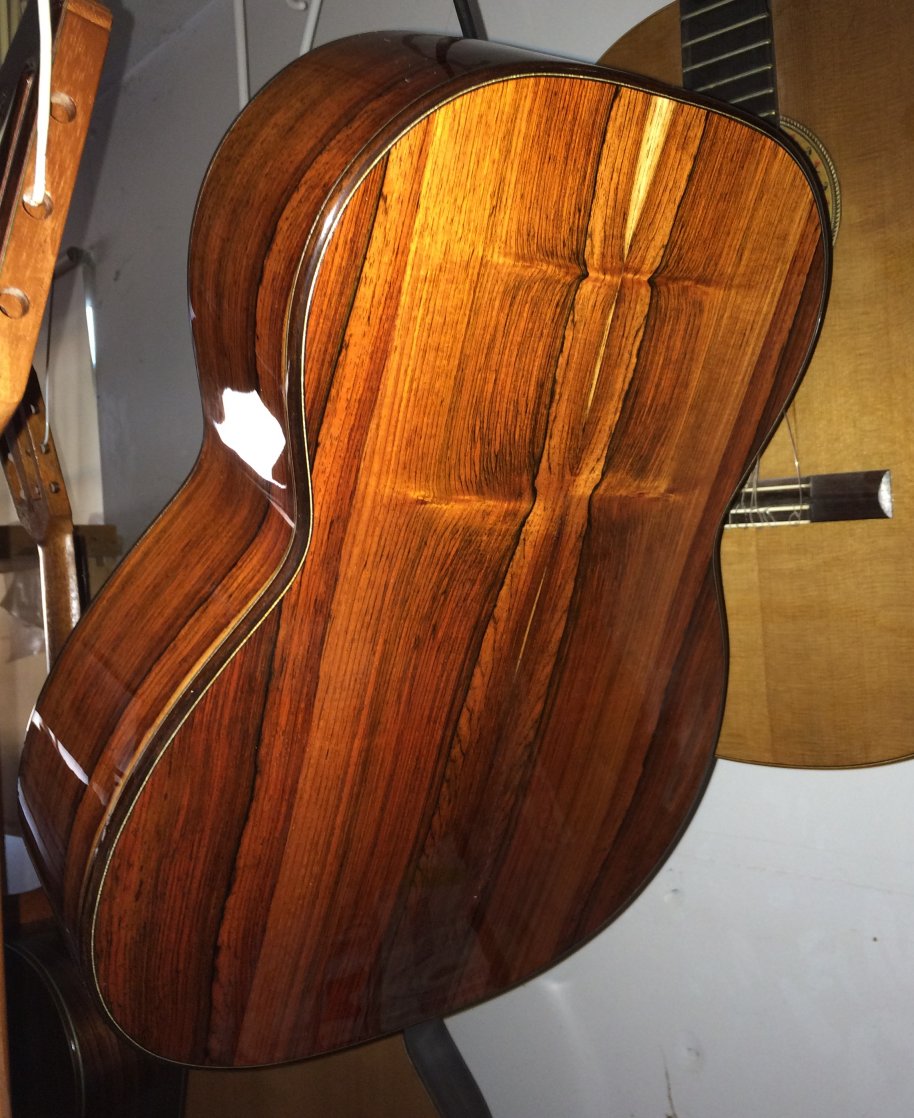

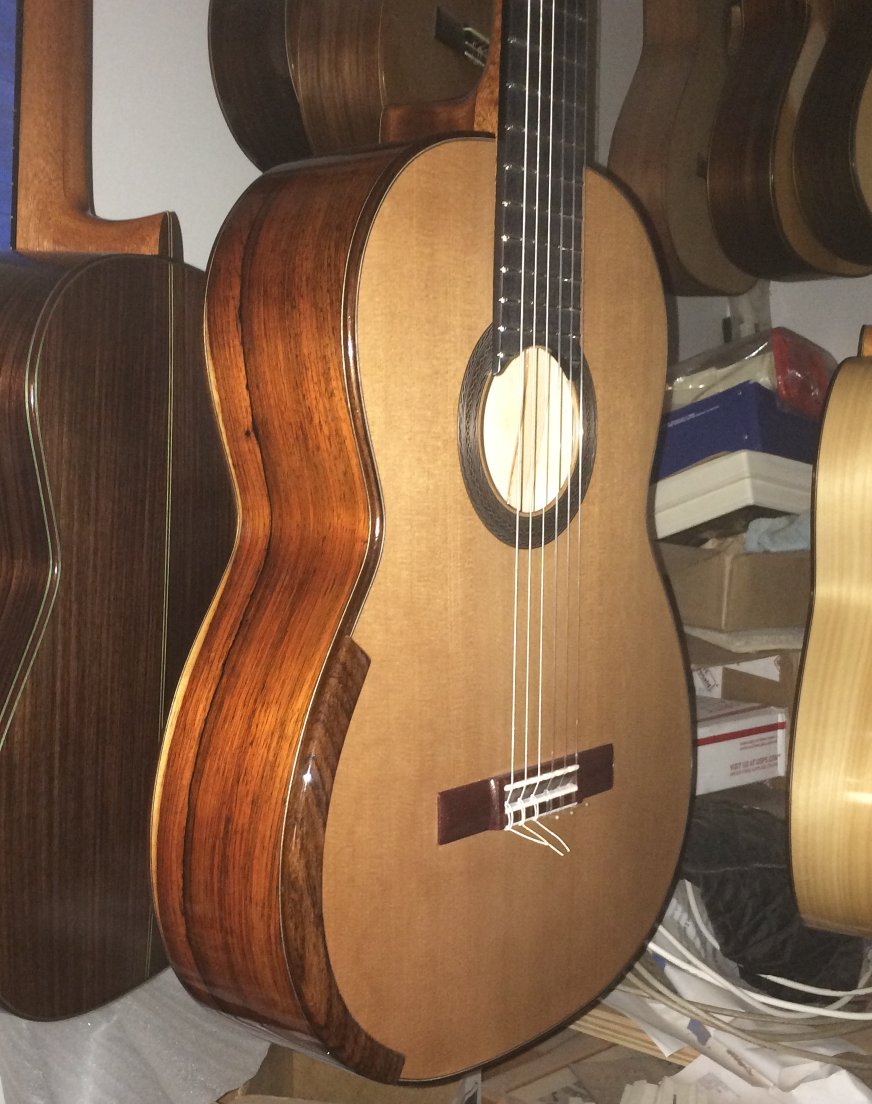

Finishing complete and buffed out. Ready for strings and set up. |
|
|
Top view. |
|
|

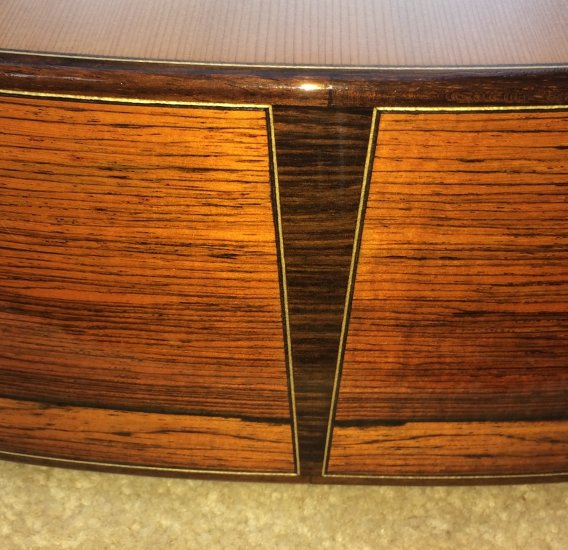

Tail view. |
|
|
Tuners installed. |
|
|

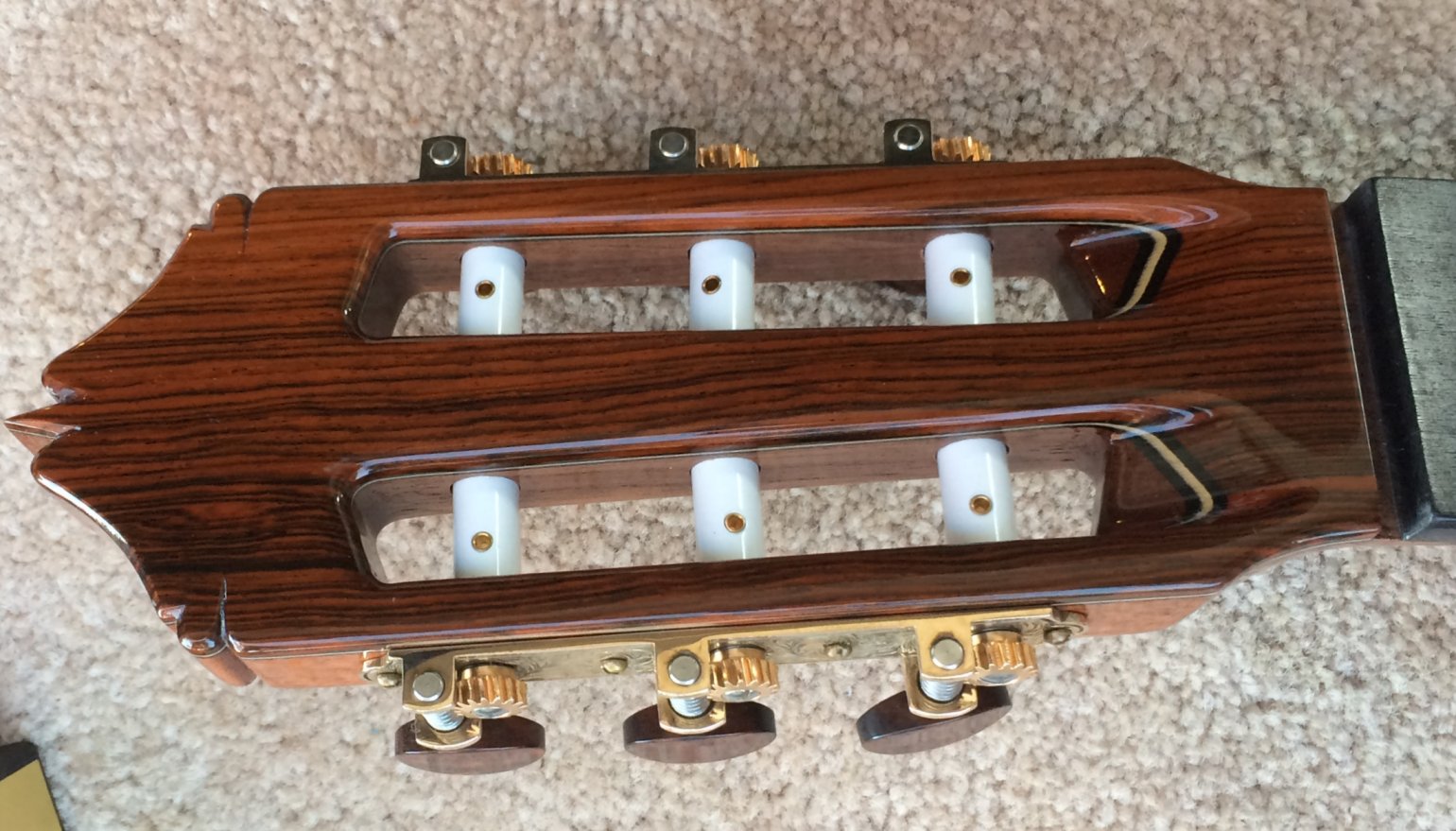

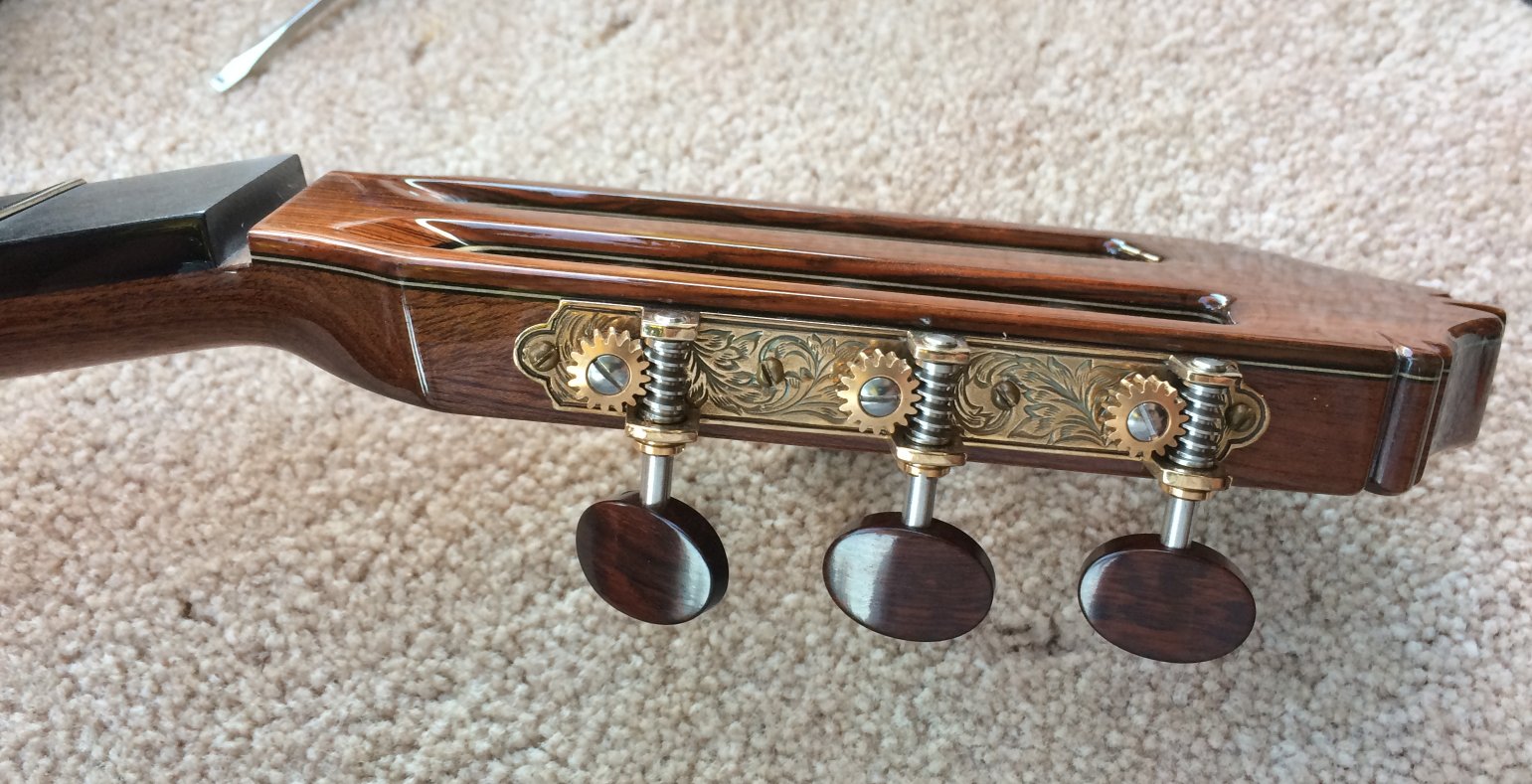

Tuners mounted side view. |
|
|

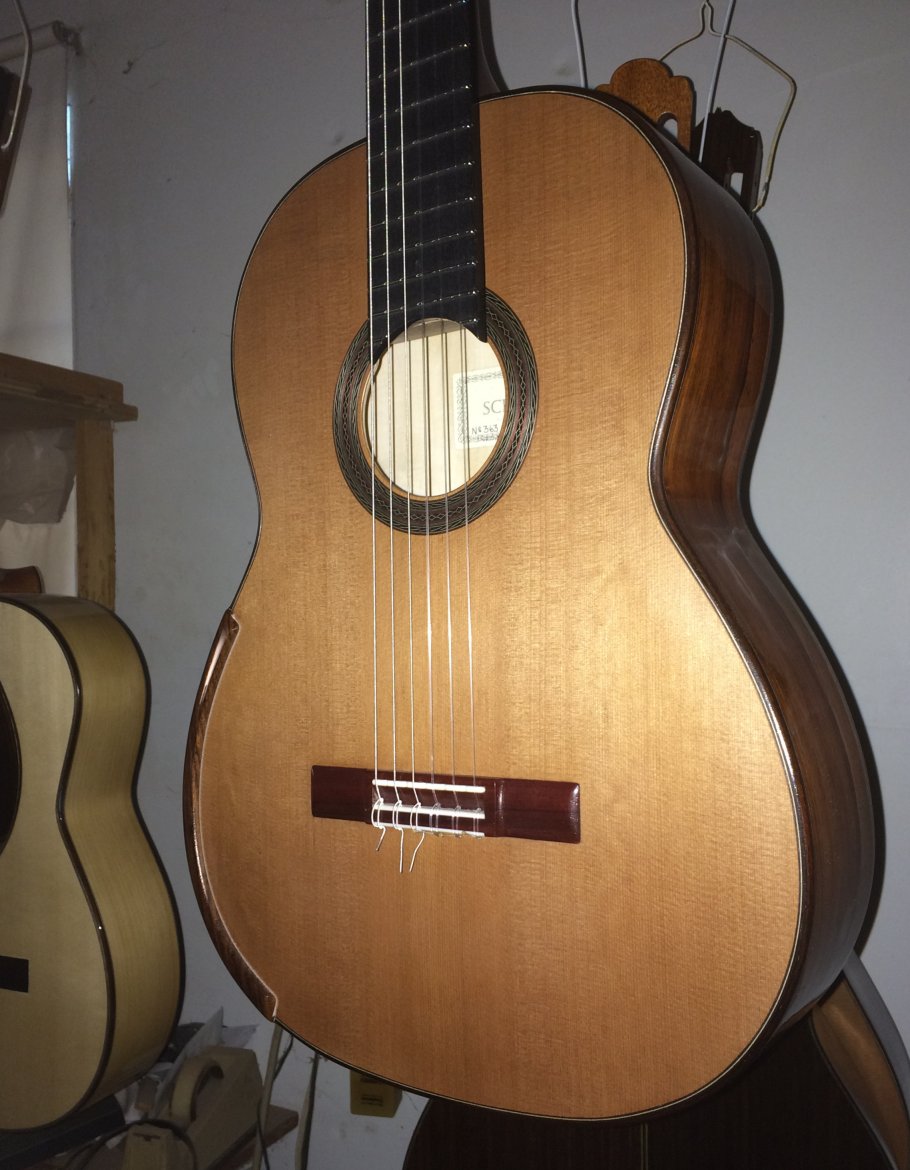

Strings installed. |
|
|

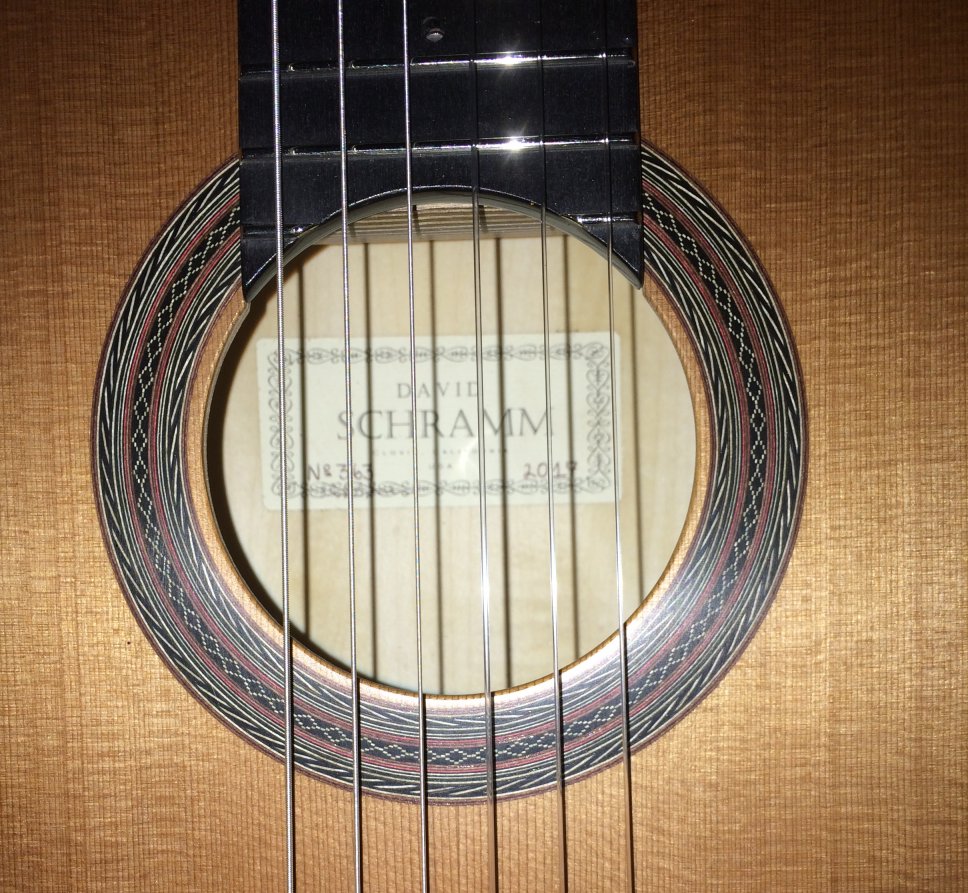

Label, no.363 2017 |
|
|
Ready for final adjustments. |
|
|
|
|
|
|
|
|
