Last Update: 03/08/15
Guitar Build Diary for:
Alen Esmaelian
Model: H1a 1937 Segovia/Hauser
Specifications:
|
|

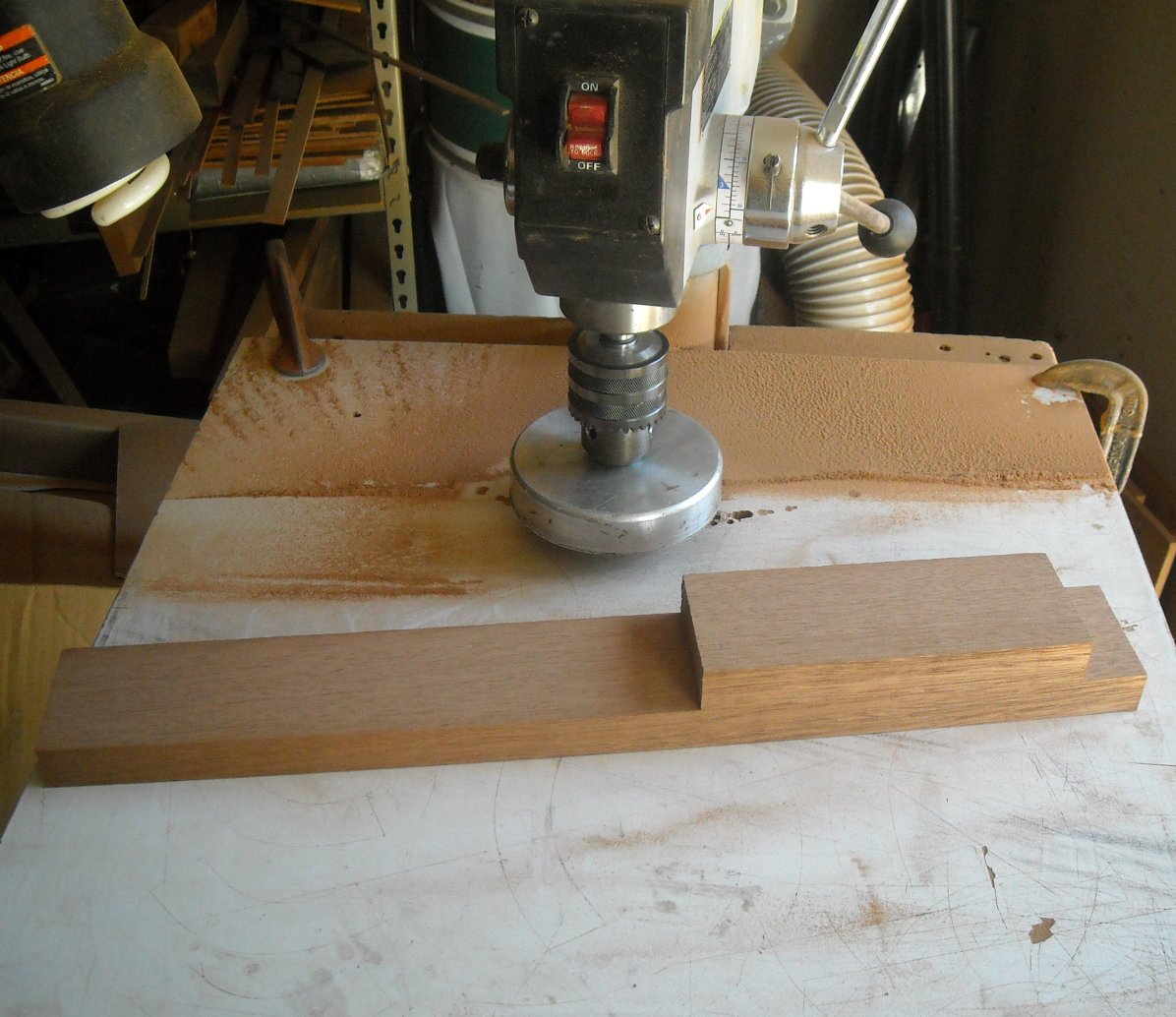

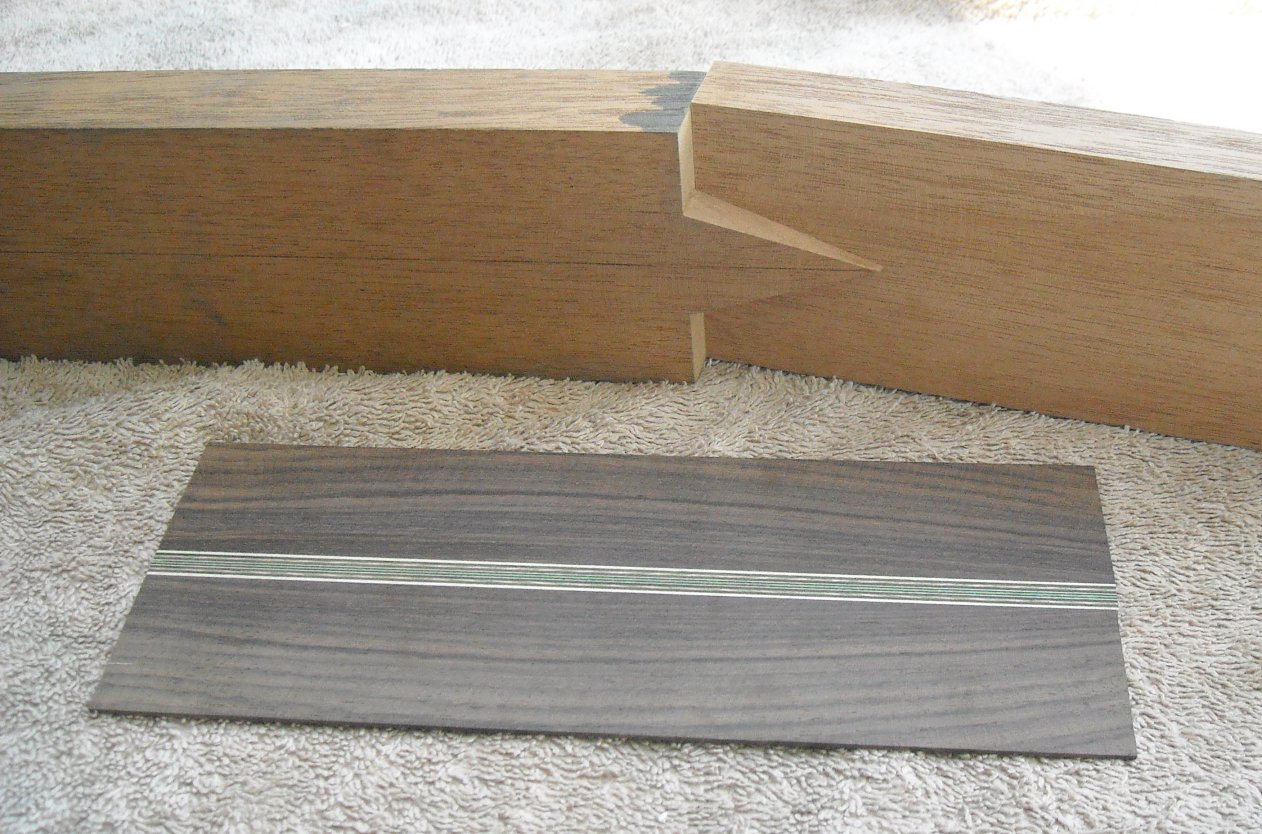

Neck blank thicknessed. Ready to make the covered Vee head joint. |
|
|

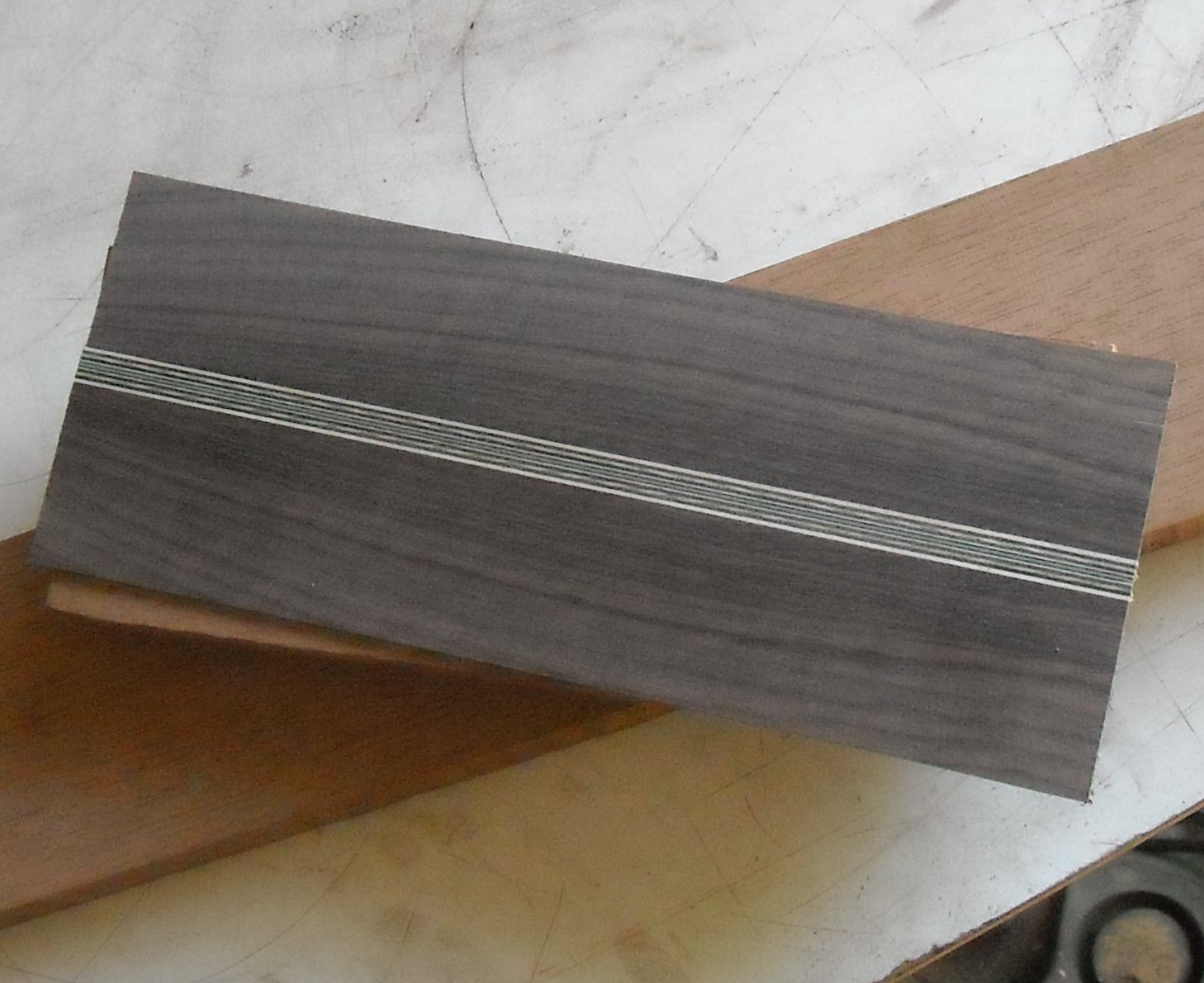

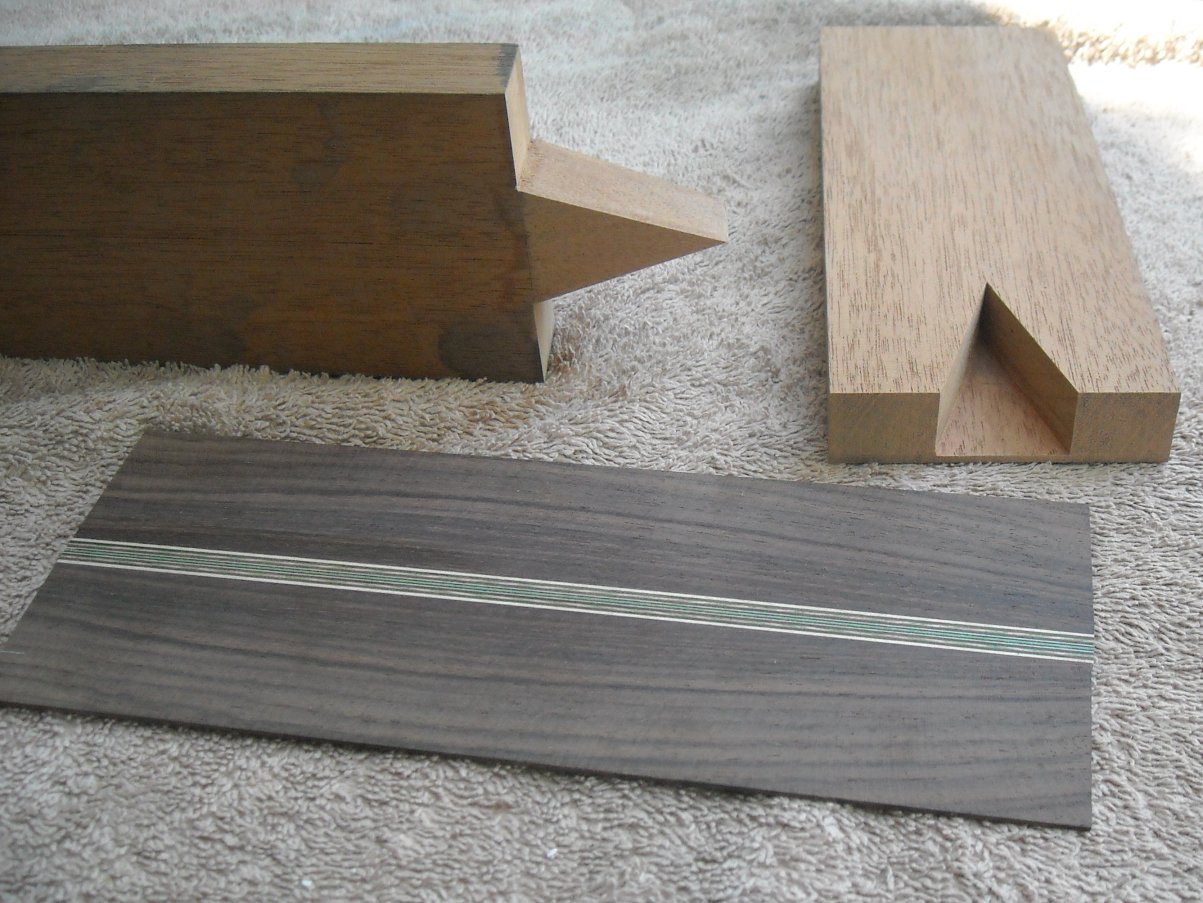

Head plate veneer and purfling. |
|
|

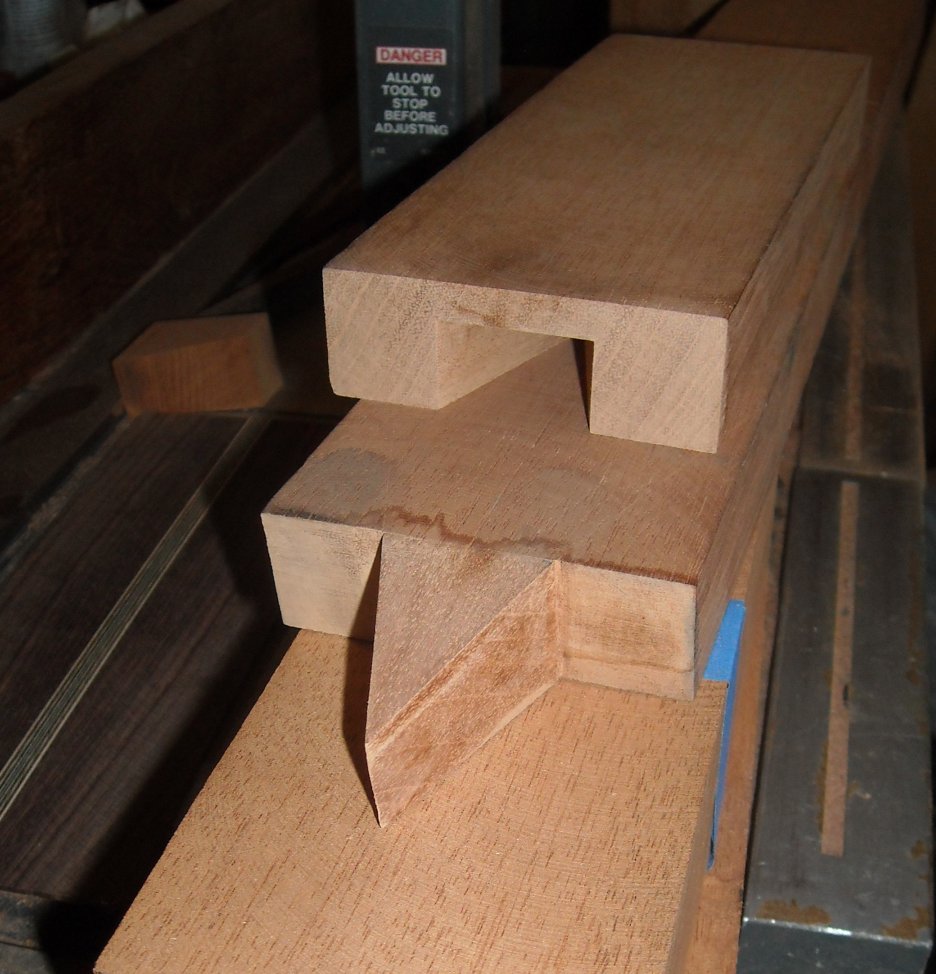

Covered vee joint. |
|
|
Covered vee and head plate. |
|
|
Test fitting the joint. |
|
|

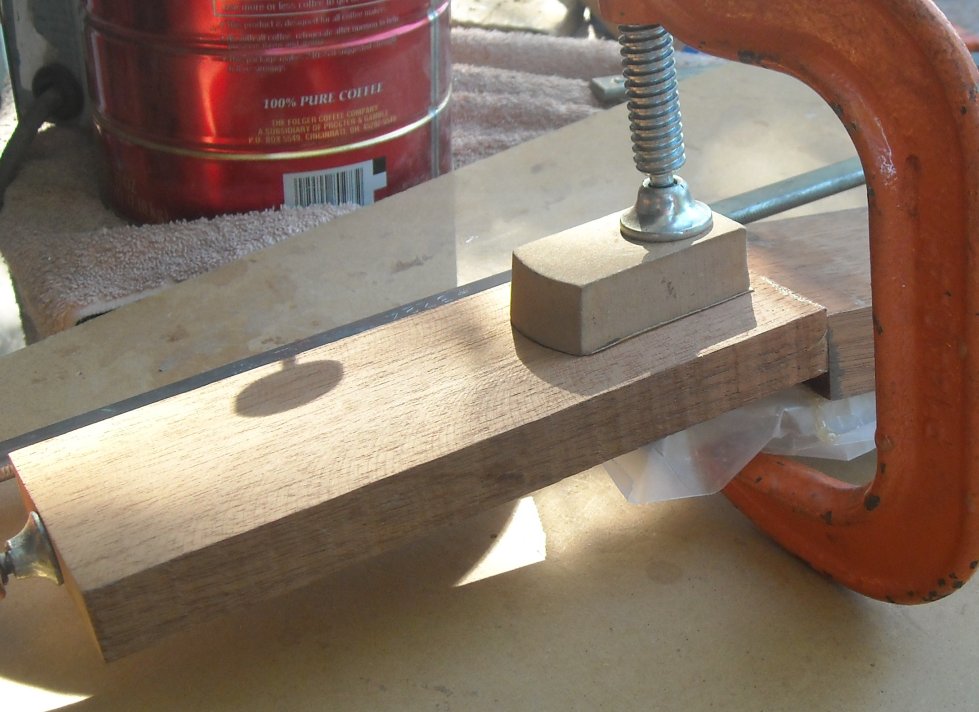

Gluing up the covered vee head joint. |
|
|

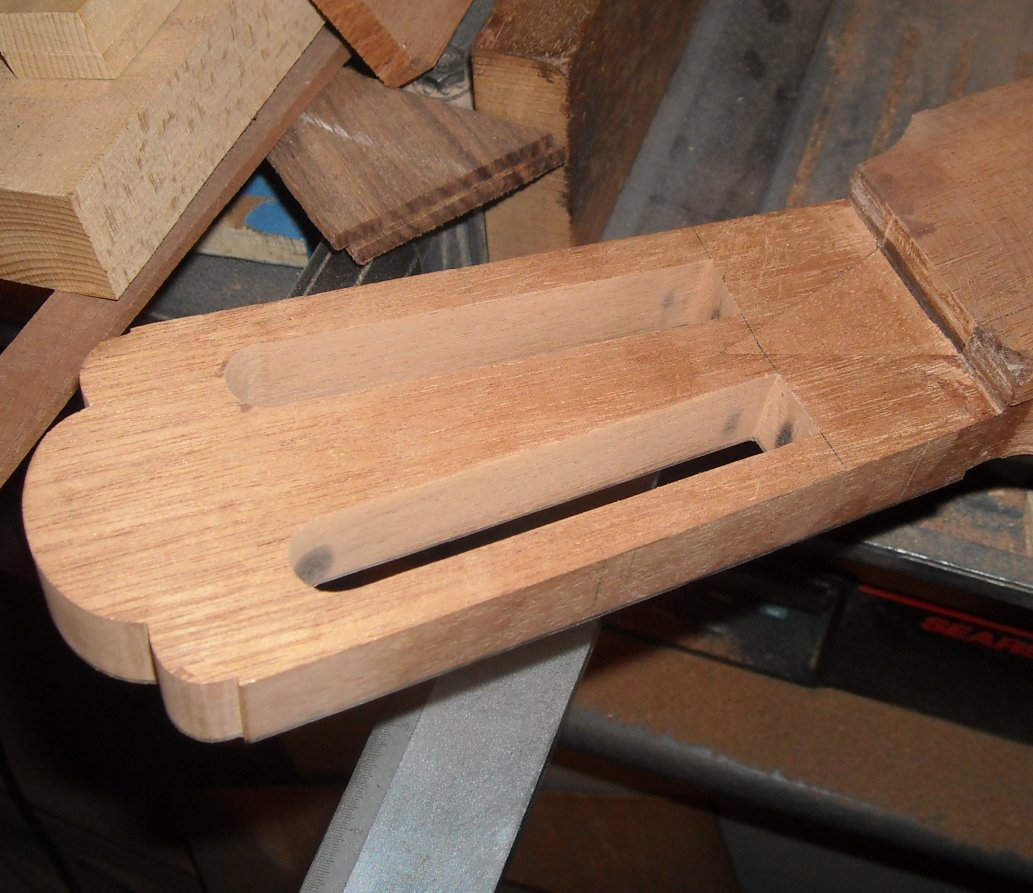

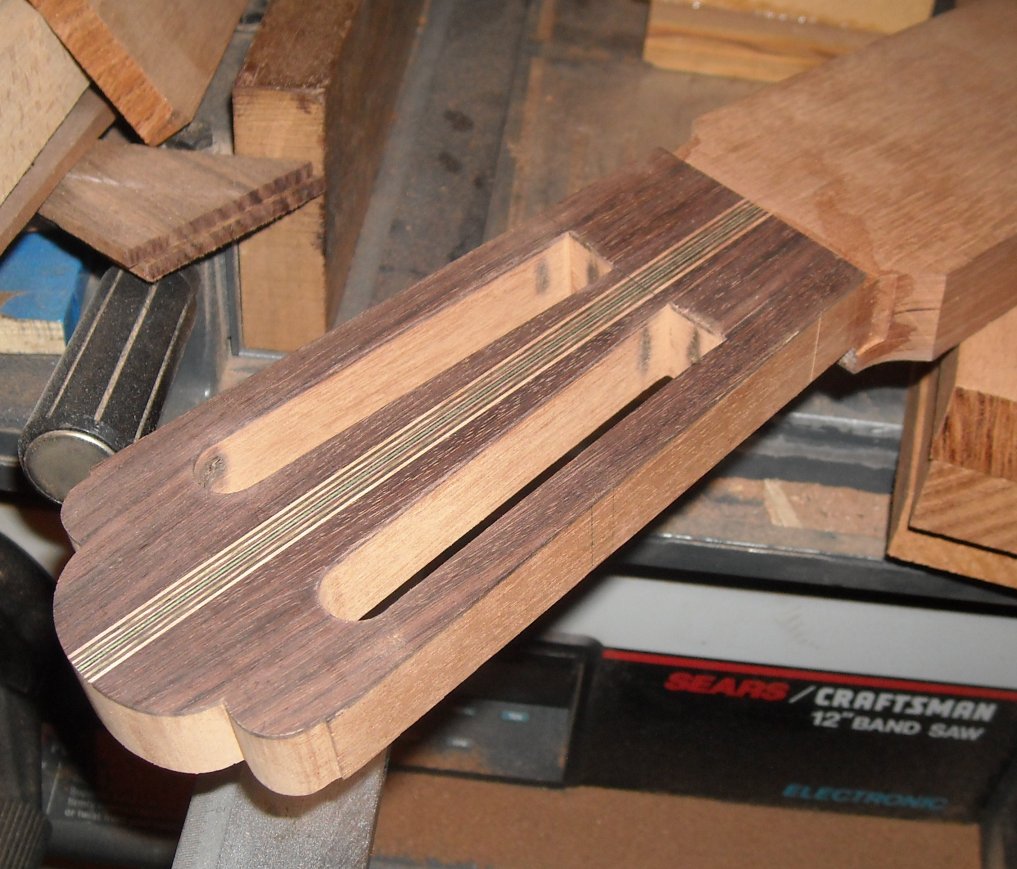

Shaping and slotting the head. |
|
|
Back of the head. |
|
|

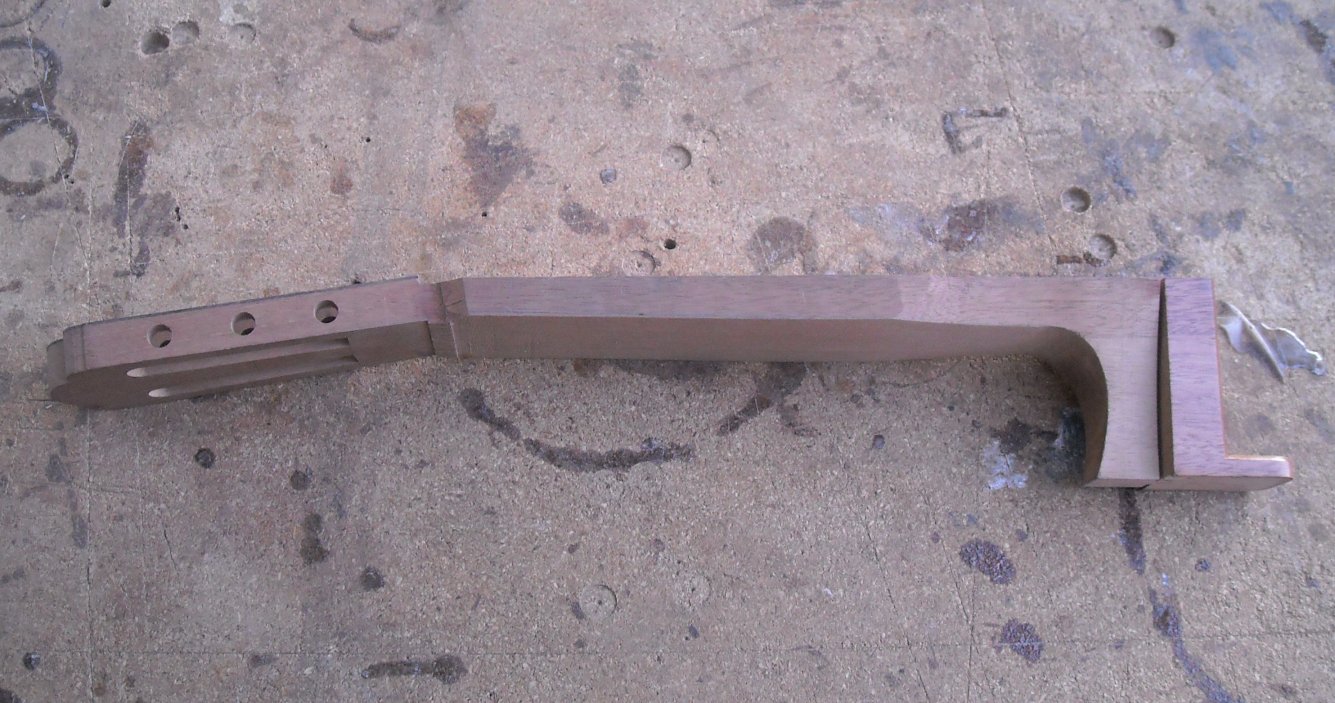

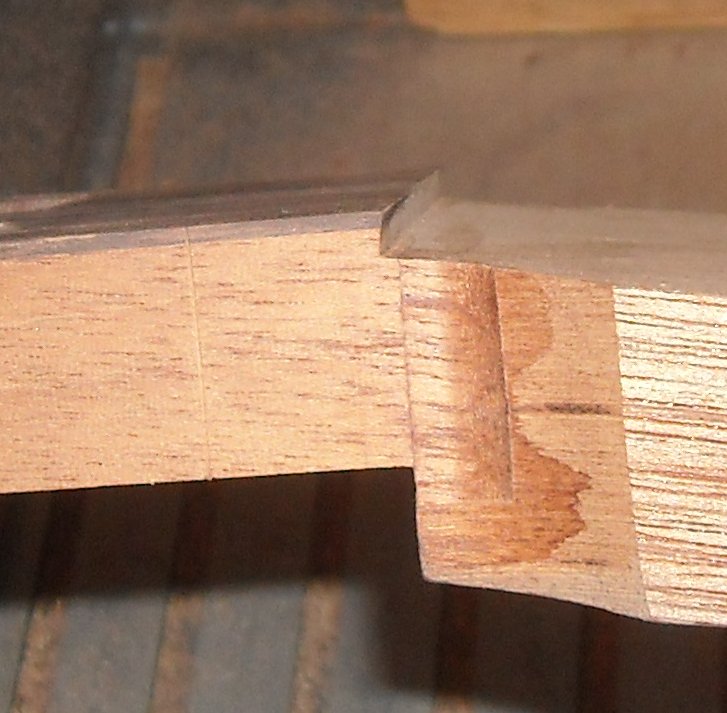

Side view showing how the covered vee style head sits about 2mm higher than the neck instead of flush like a through vee style head. The covered vee is what makes the Hauser style guitar unique. It is also difficult to make which is why few luthiers replicate it. |
|
|

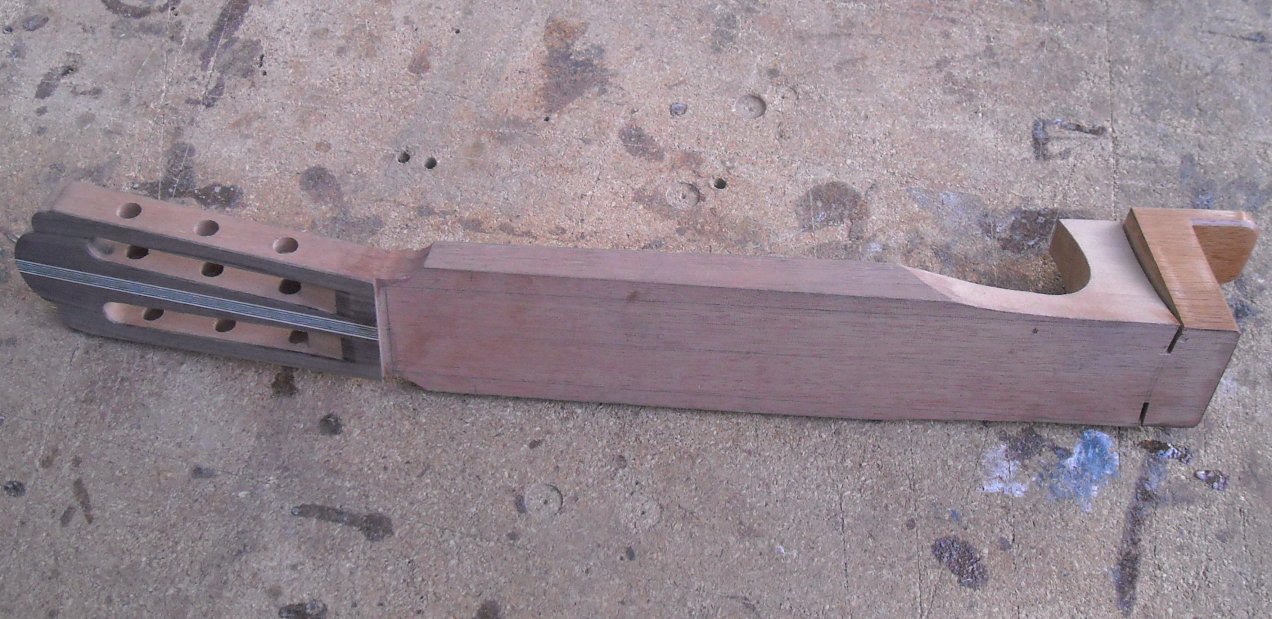

Neck complete. |
|
|
Neck ready for the sides and soundboard. |
|
|

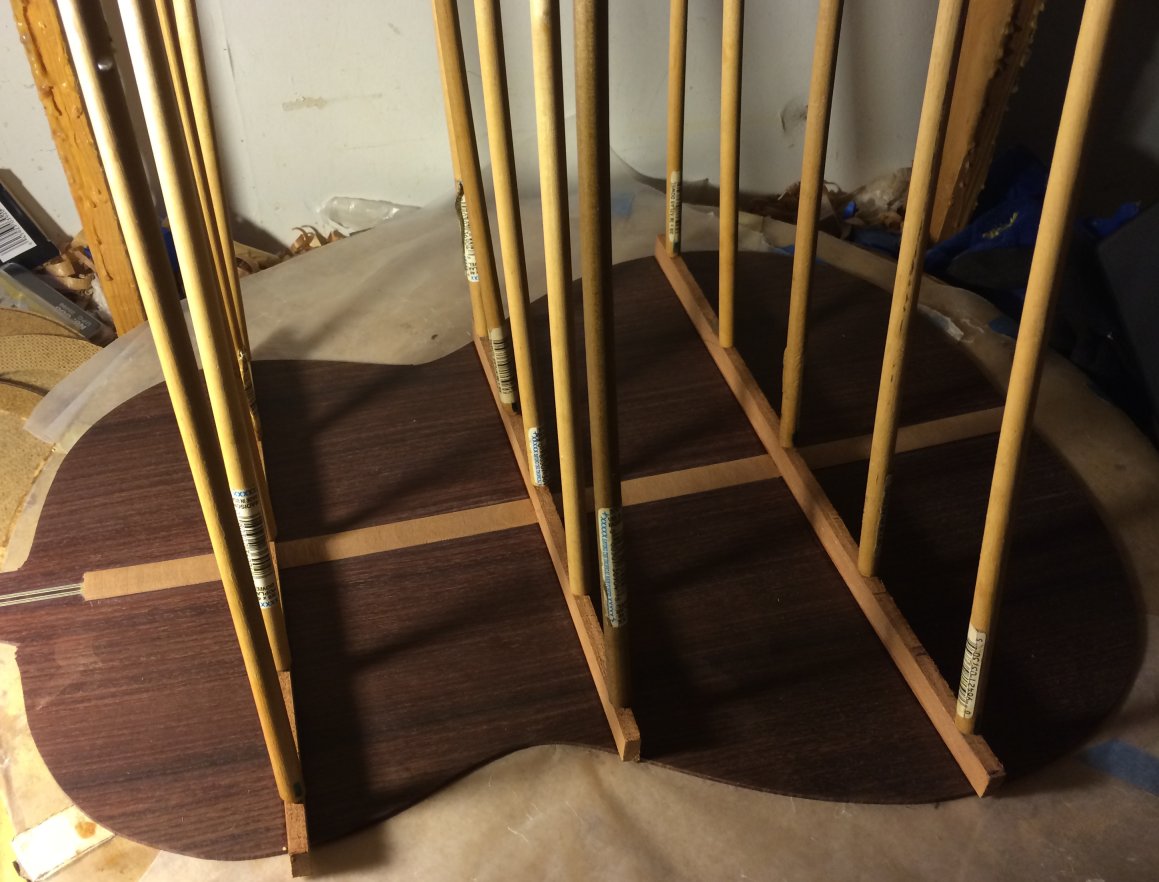

Gluing back braces. |
|
|

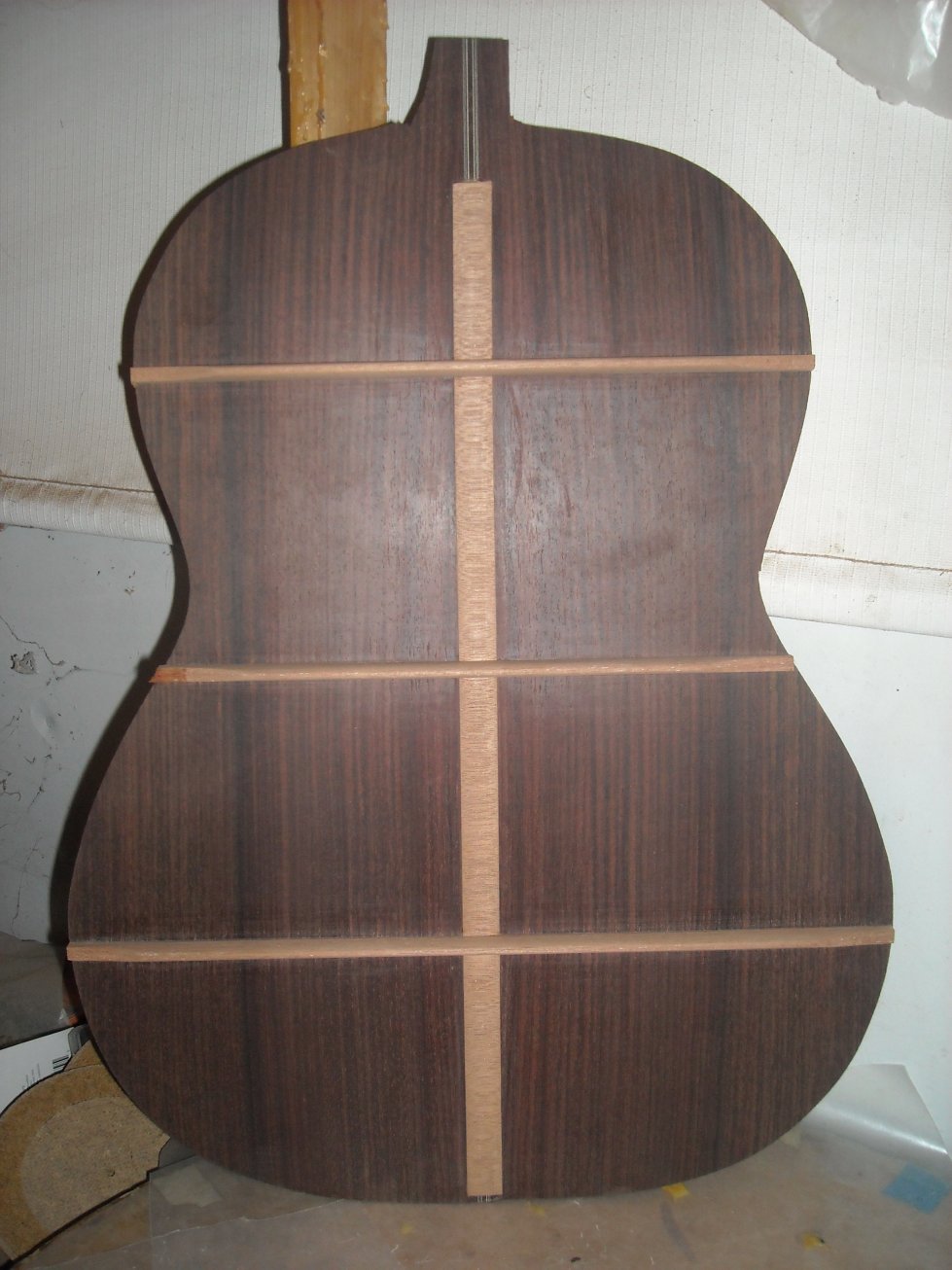

Back complete. |
|
|

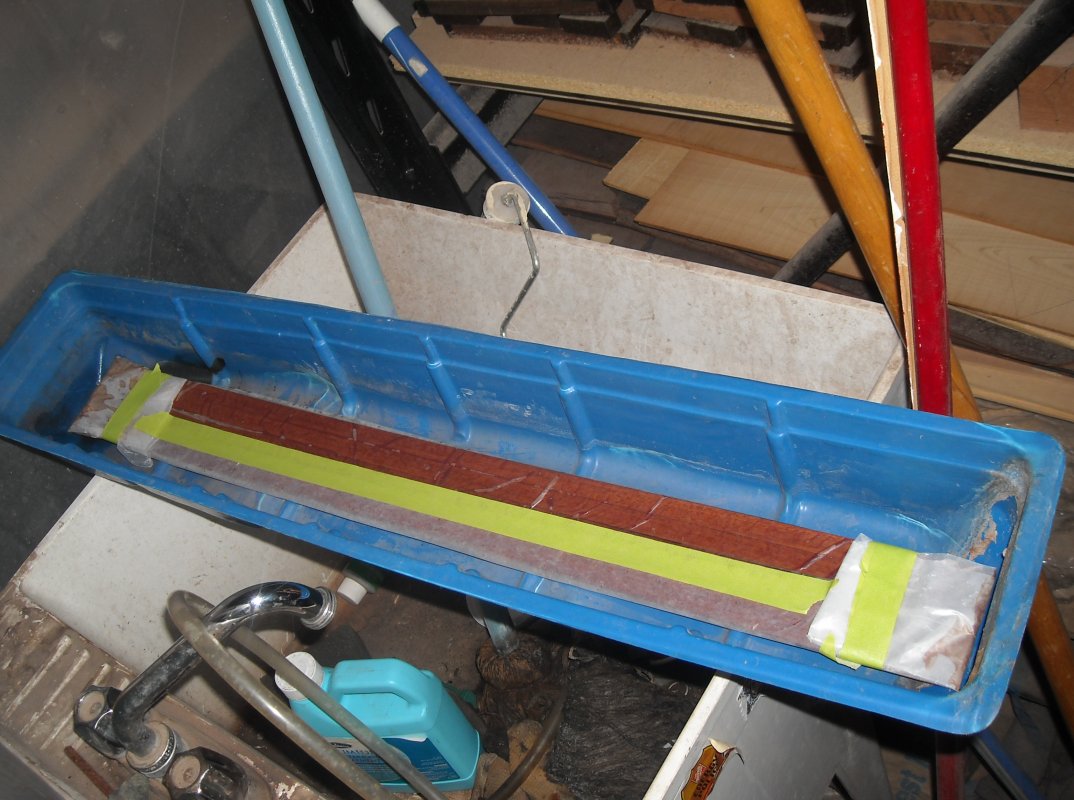

Soaking back linings before bending. |
|
|
Soundboard braced and glued to the neck. |
|
|

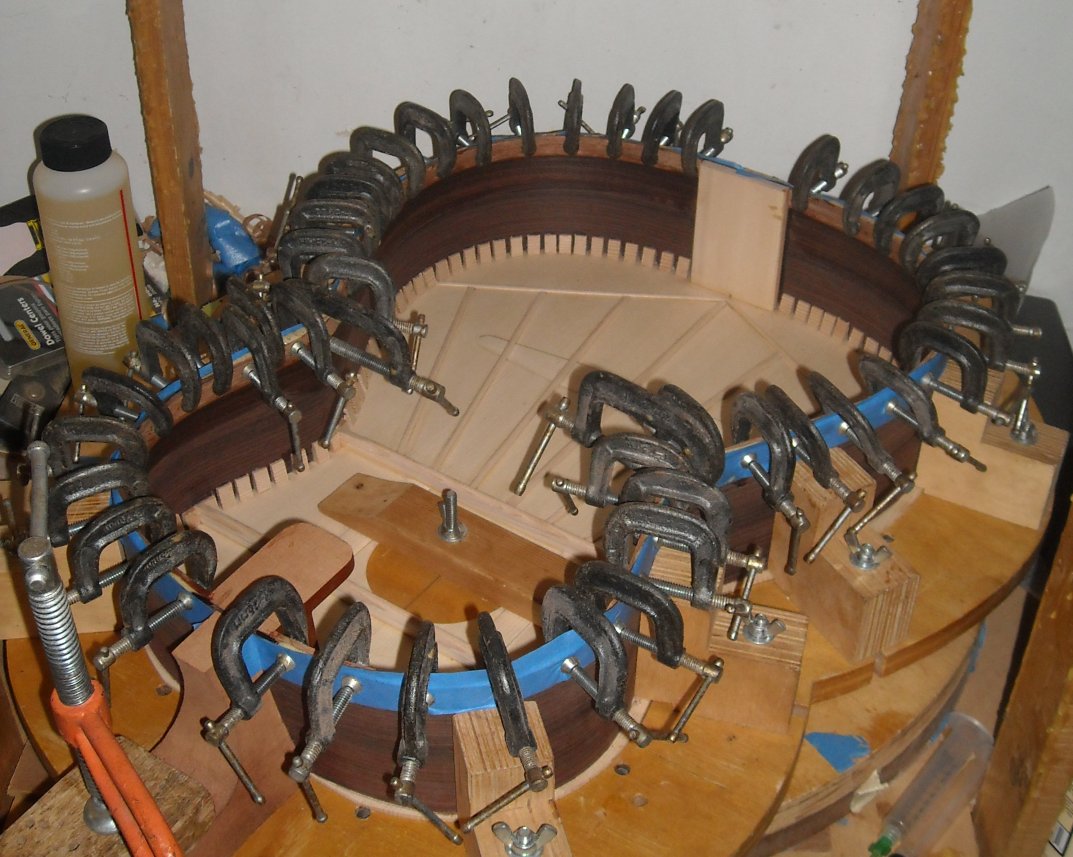

Gluing back lining. |
|
|

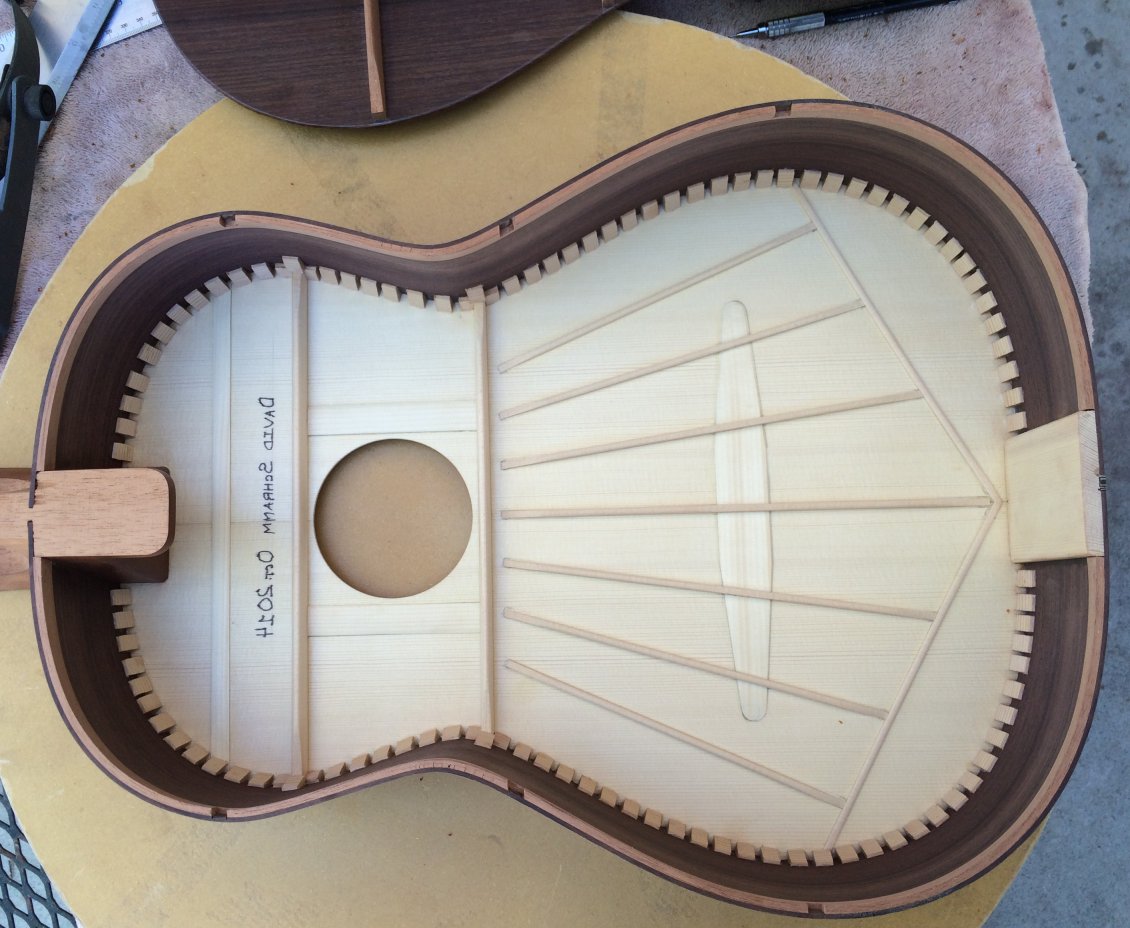

Ready to glue the back on. Signed and dated, but spelled backwards so when looking inside with a mirror it appears normal. |
|
|
Gluing the back on. |
|
|

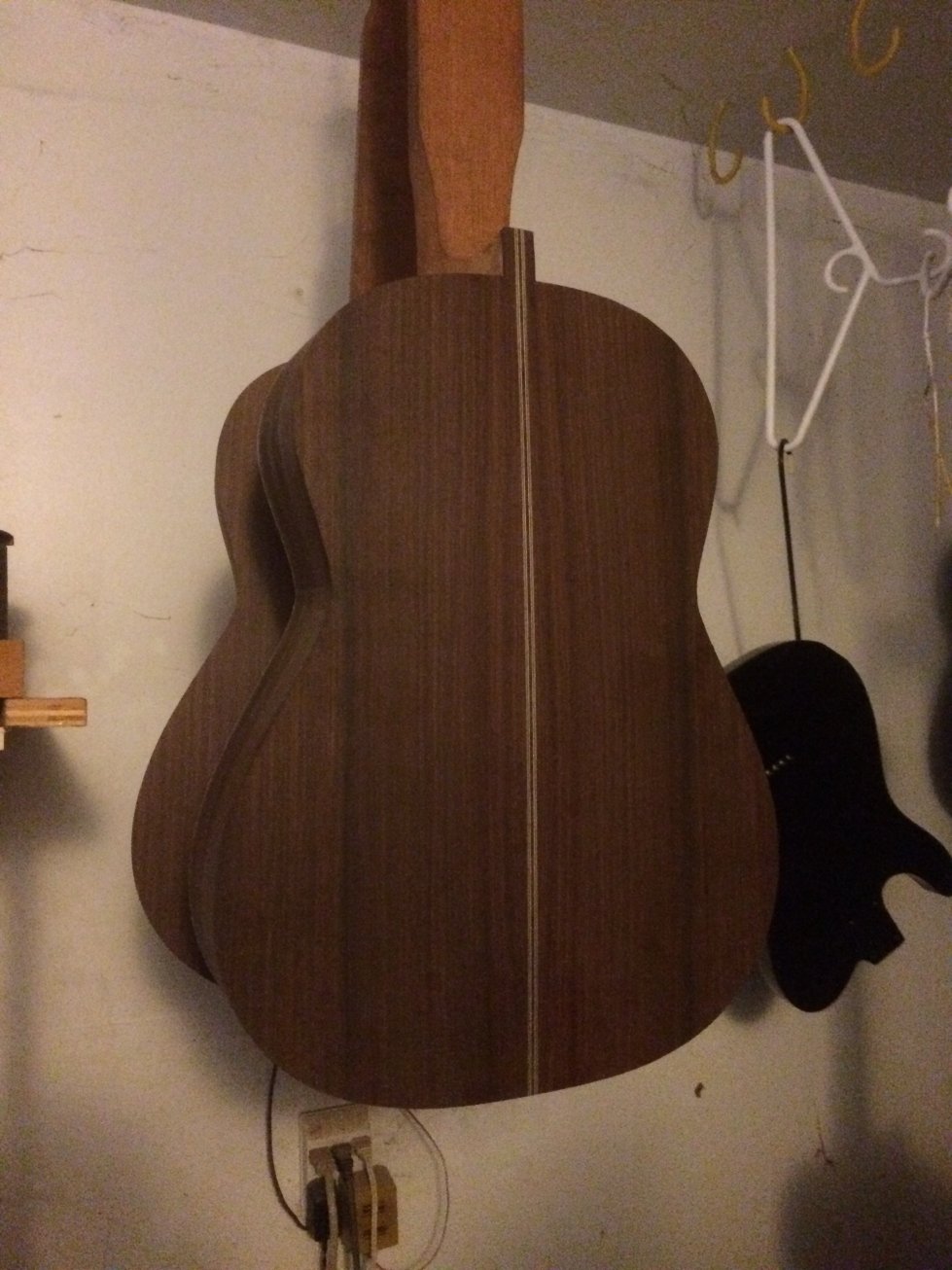

Back ready for purfling and binding. |
|
|

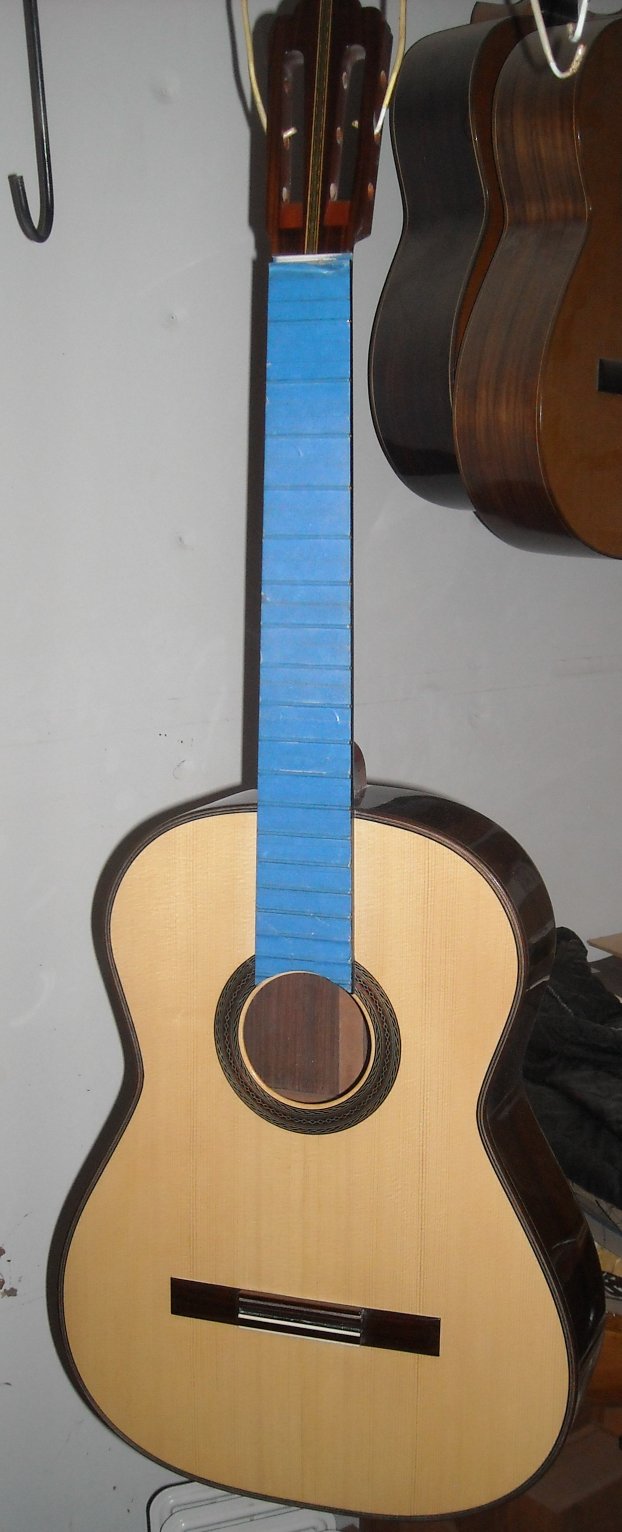

Ready for fingerboard. |
|
|

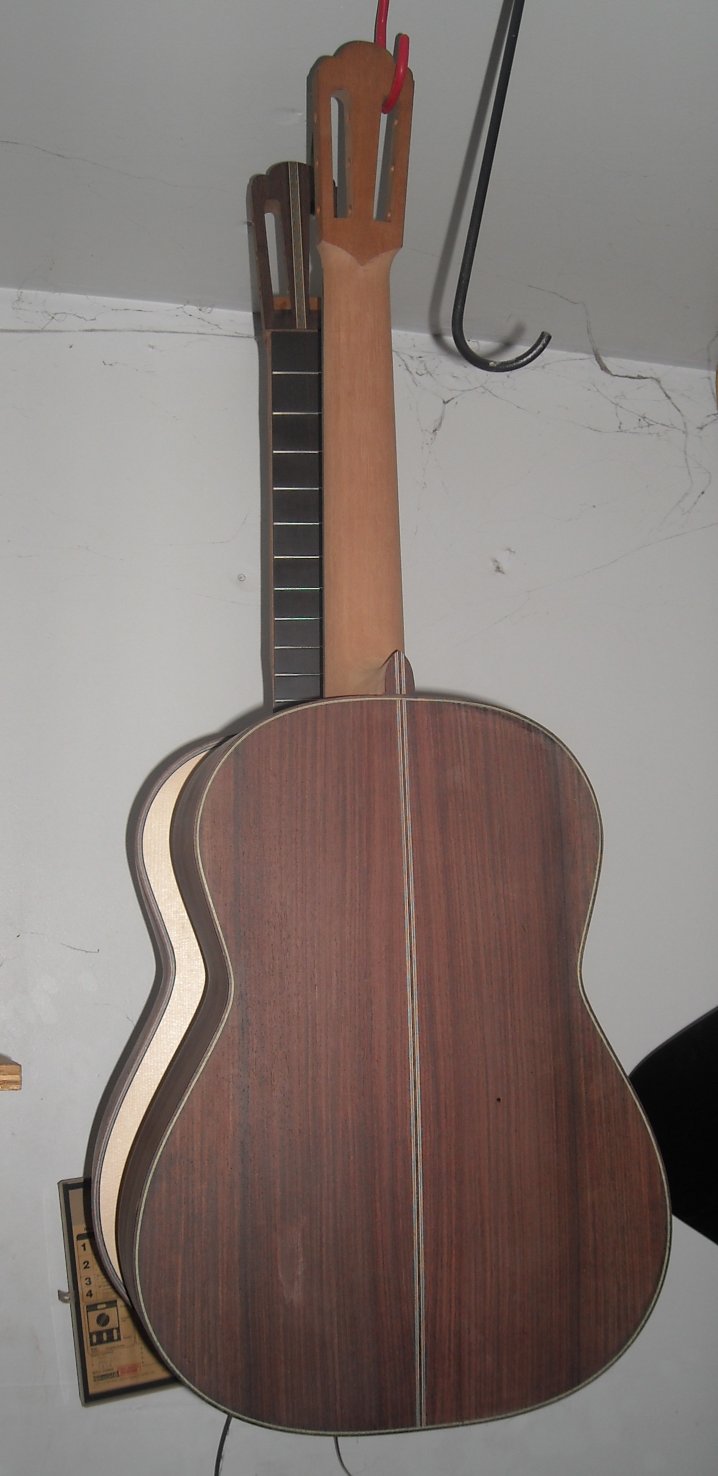

Frets installed. Ready to carve the neck. |
|
|

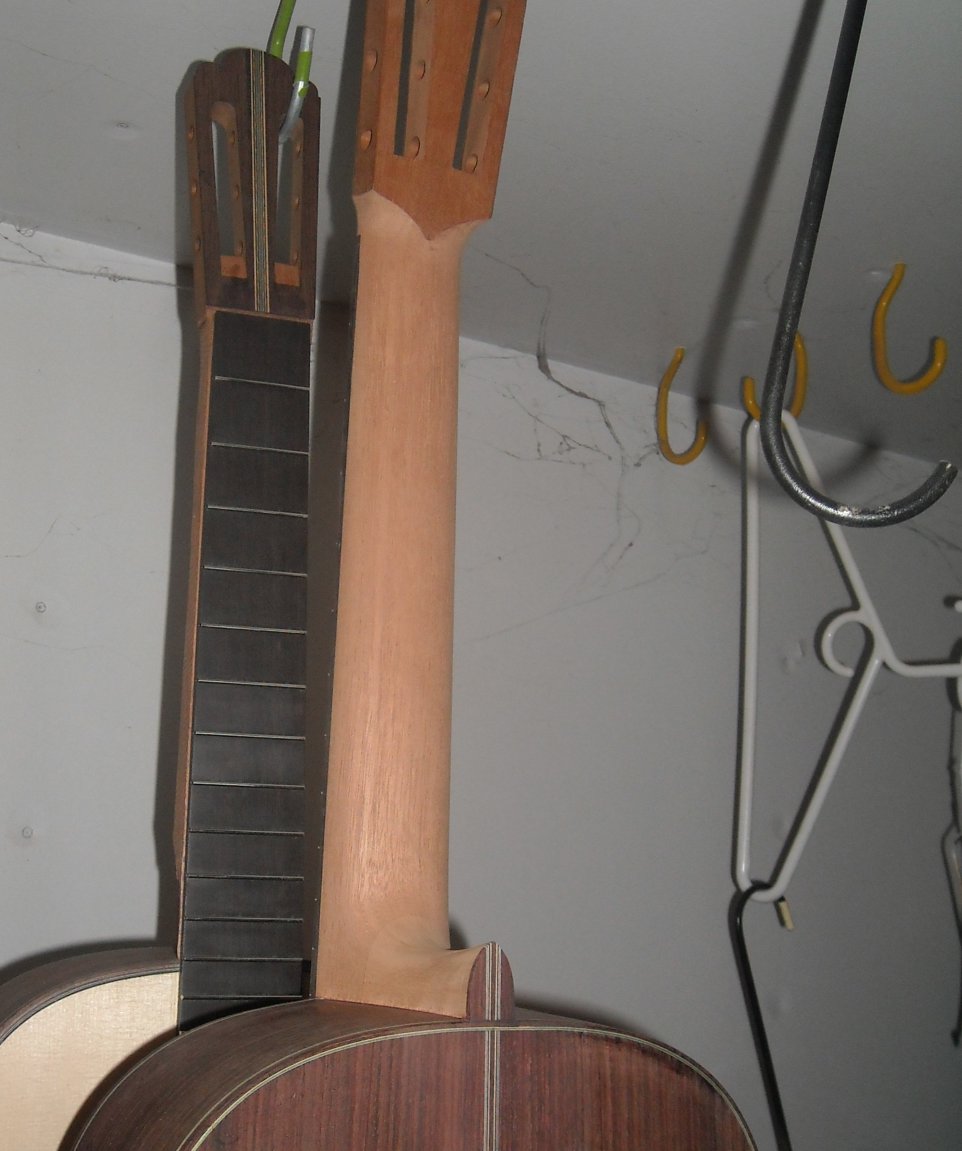

Carving the neck. |
|
|
Sanding the neck. |
|
|
Applying the finish. |
|
|

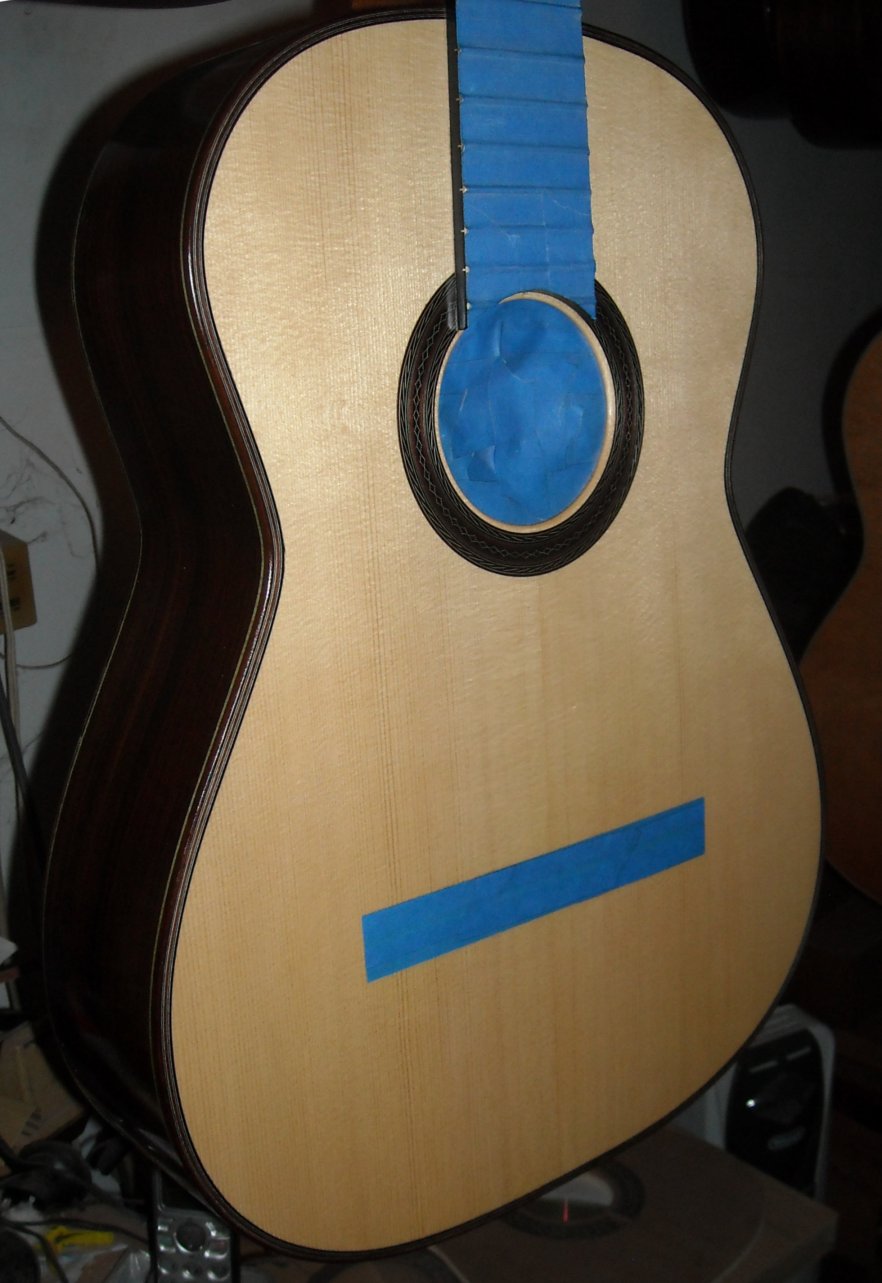

French polishing soundboard. |
|
|
French polishing the soundboard. Beautiful grain! |
|
|

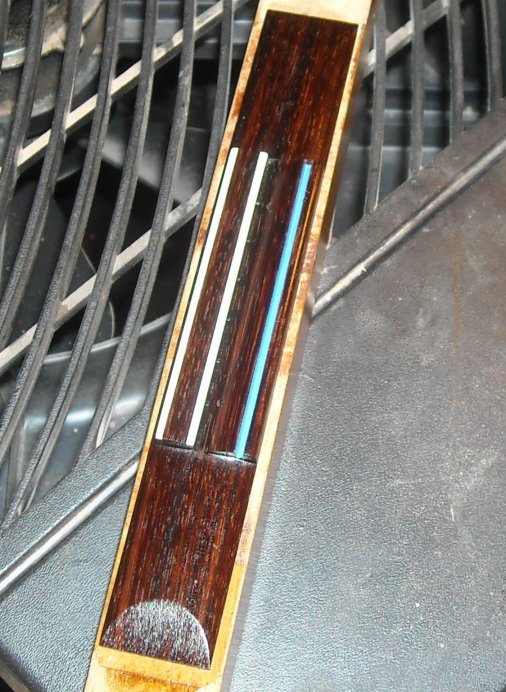

Finishing the bridge. |
|
|

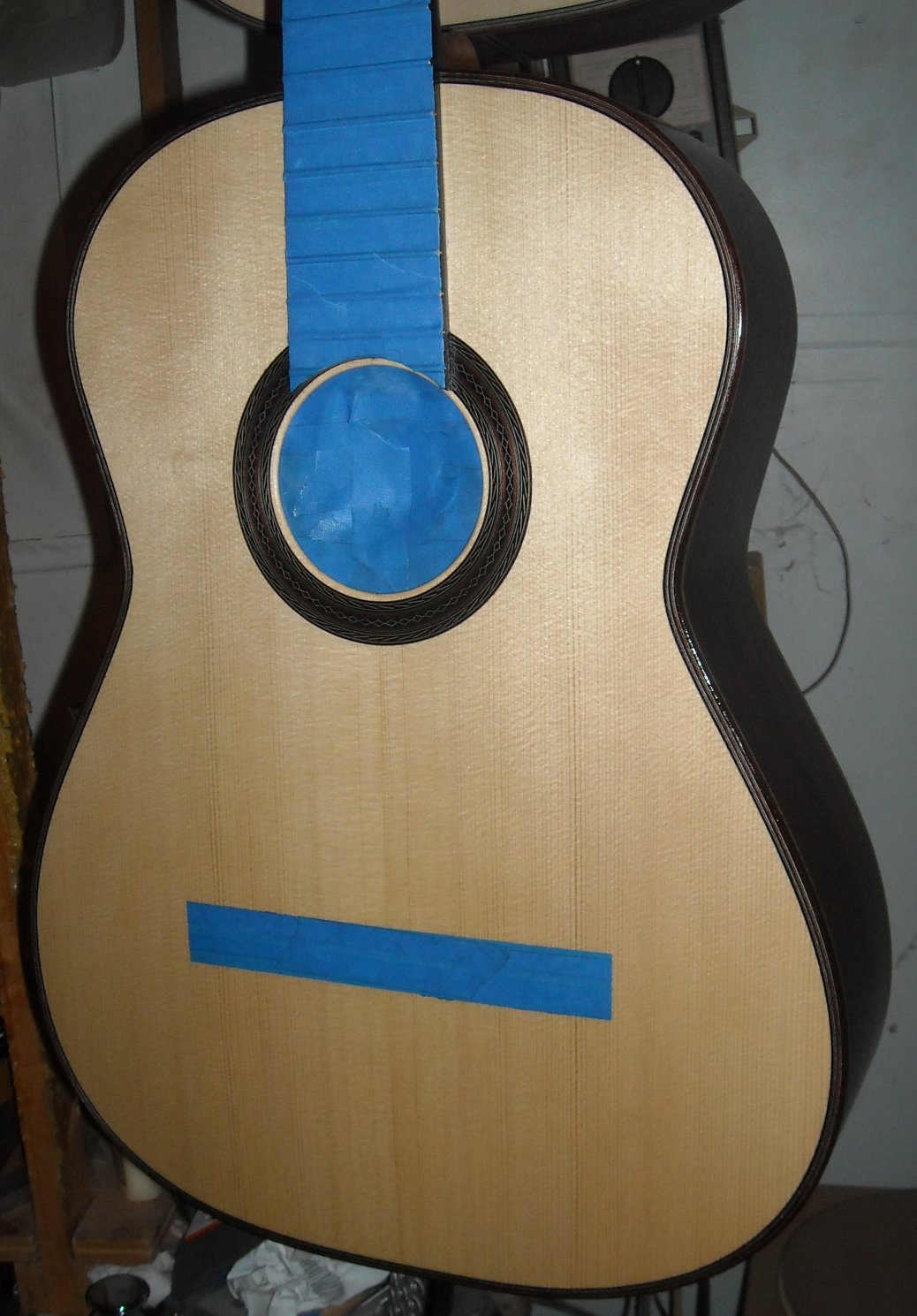

Final finish coats. |
|
|

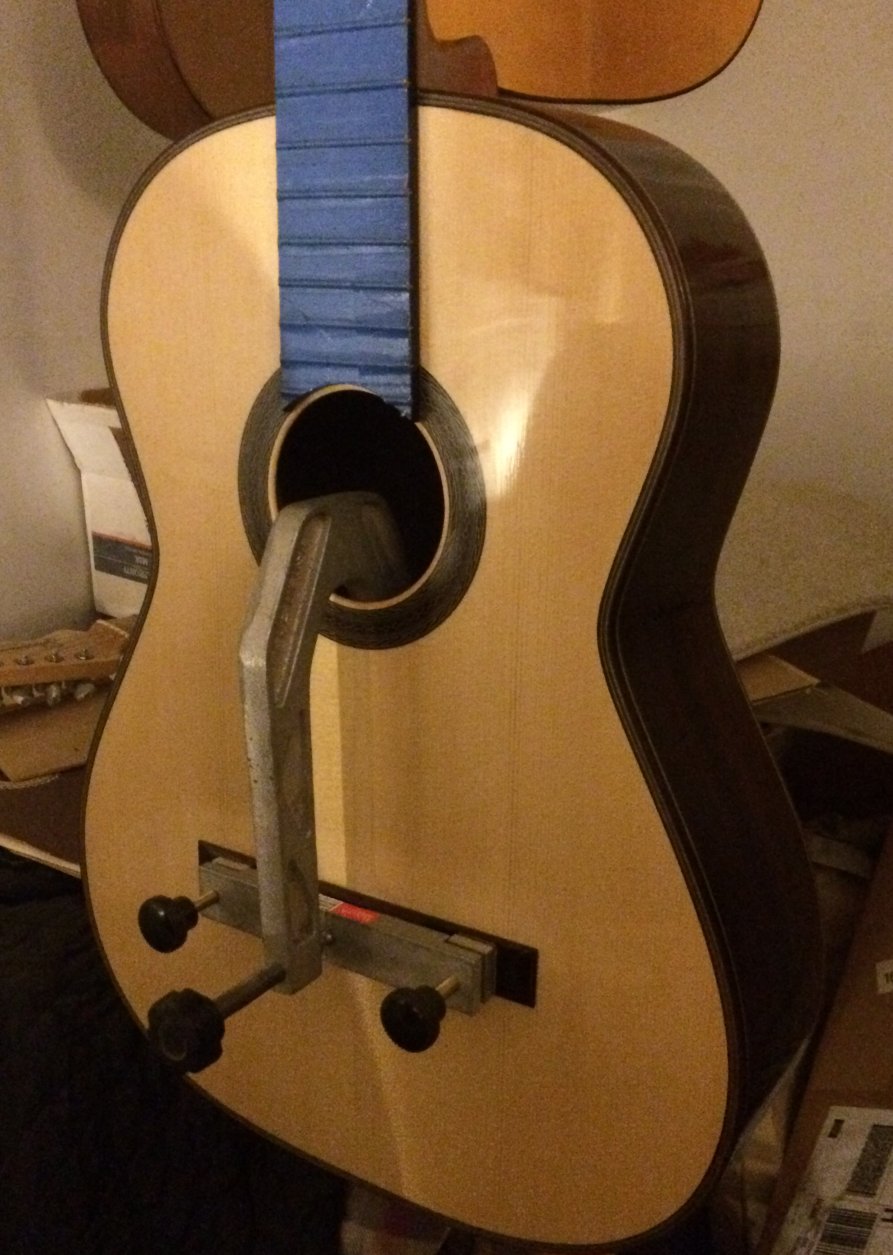

Gluing the bridge on. |
|
|

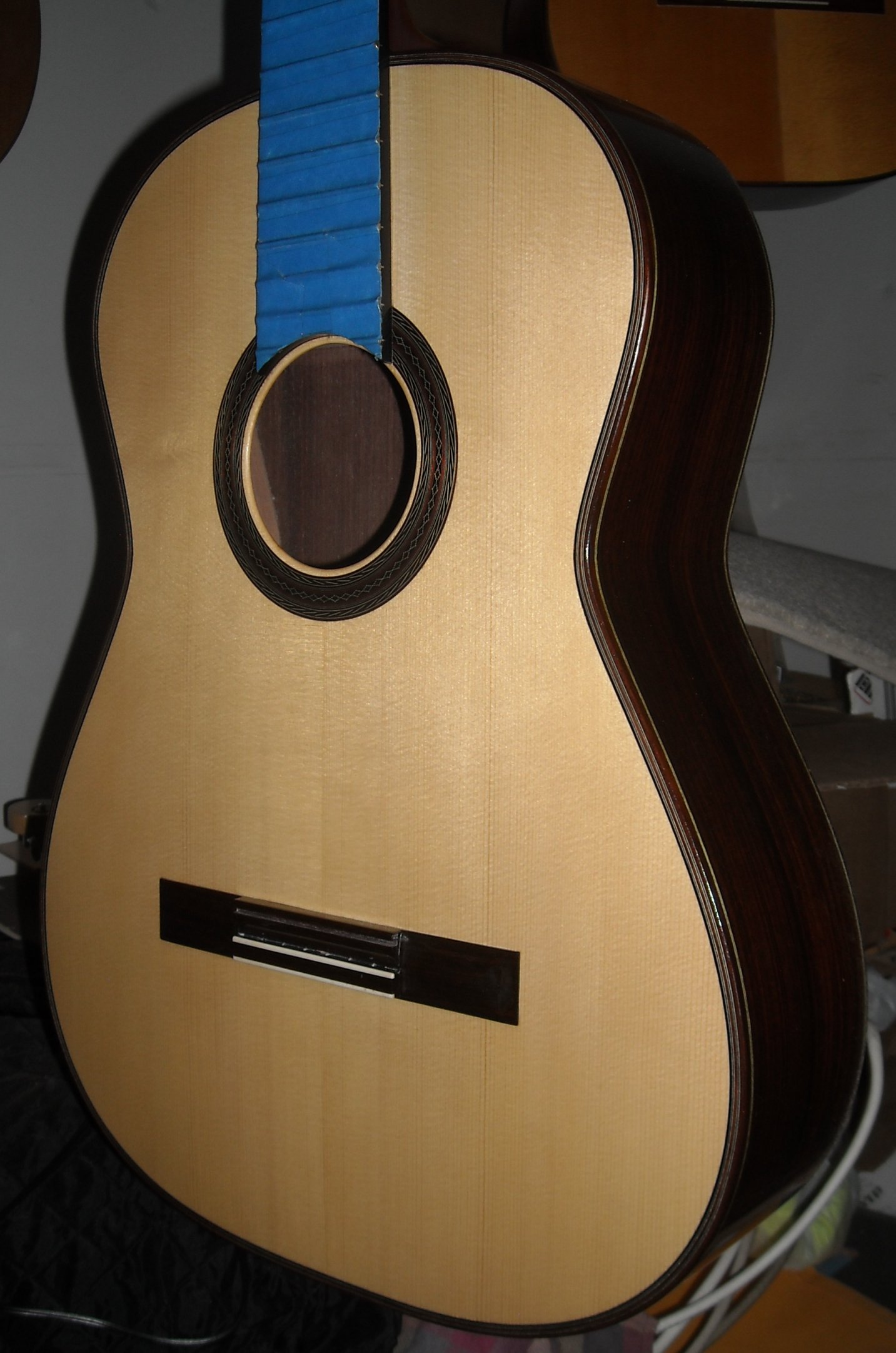

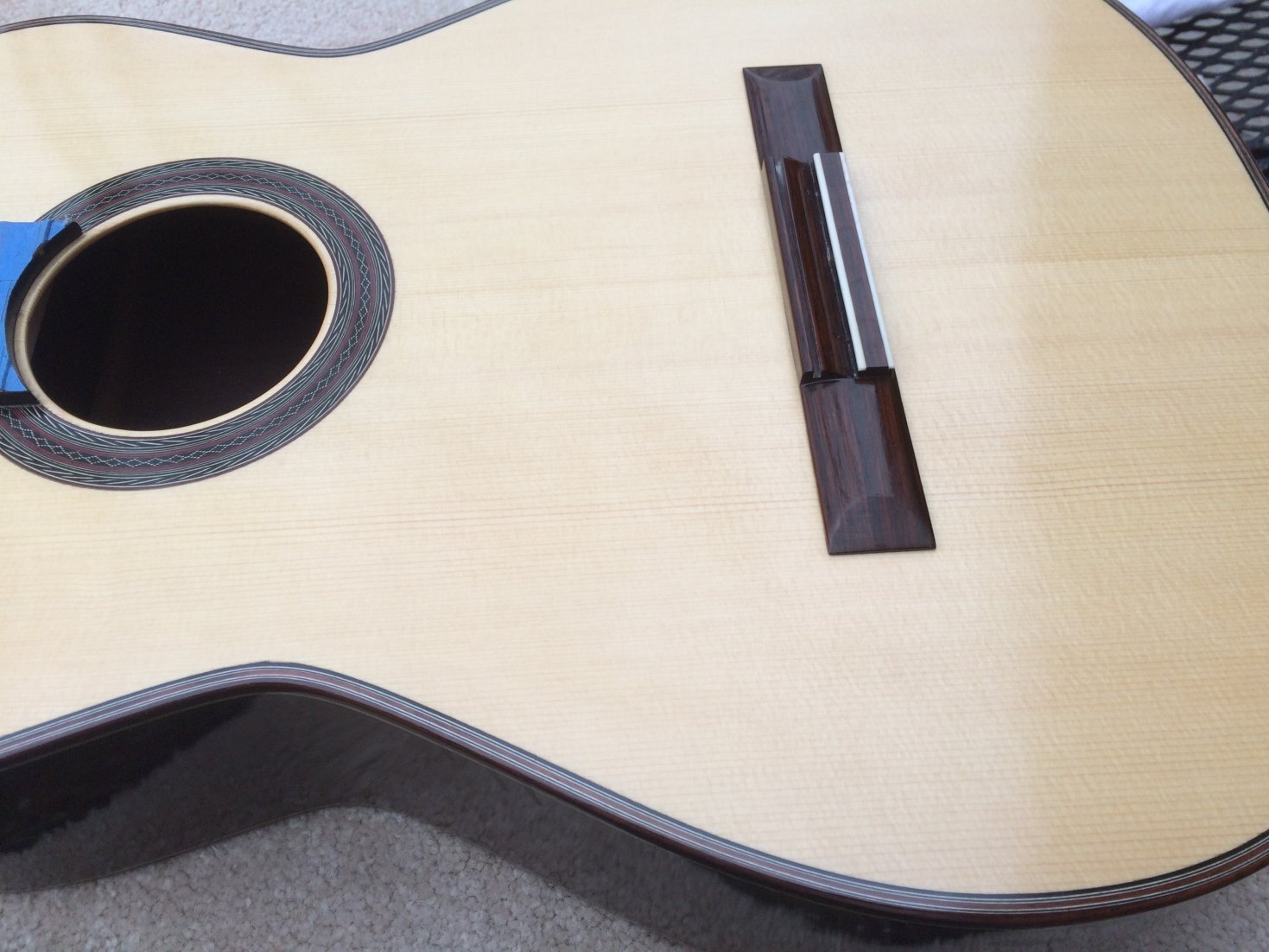

Bridge glued on. |
|
|
Final French polishing on soundboard. |
|
|
Ready to buff the lacquer. |
|
|

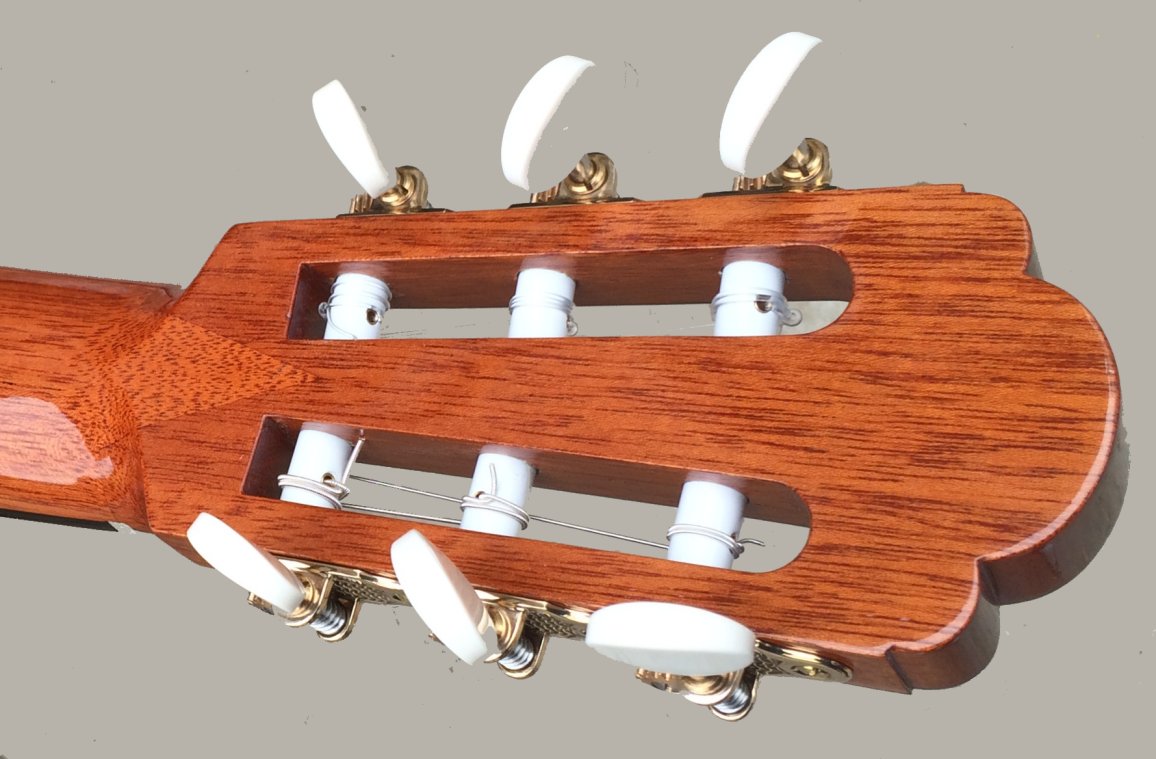

Buffed out and ready for set-up. |
|
|

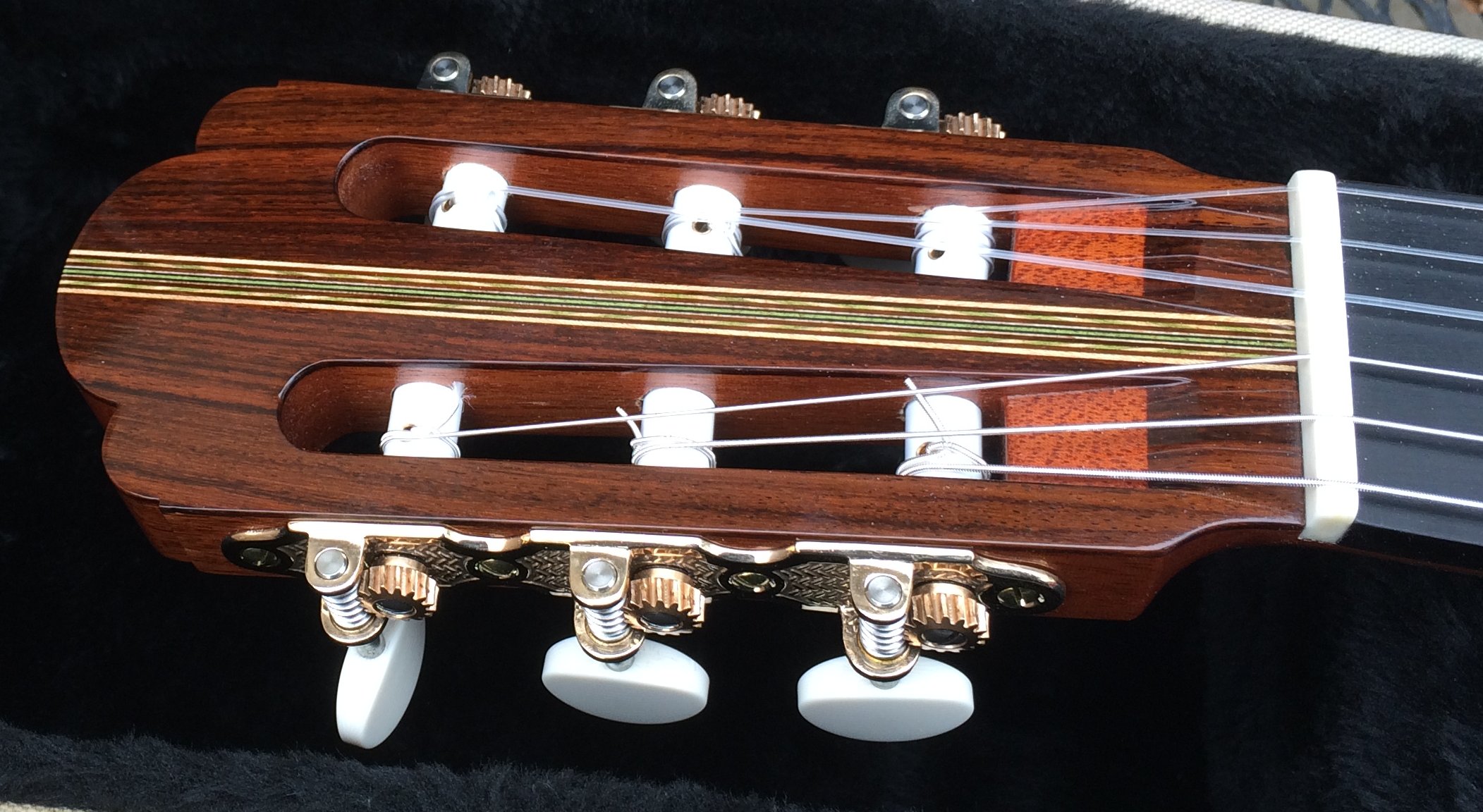

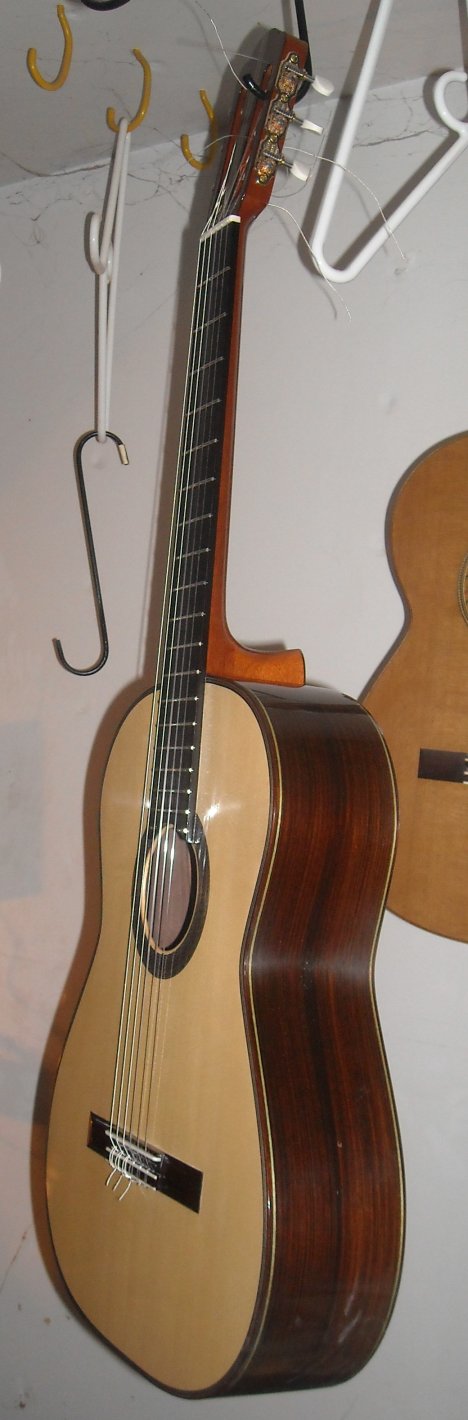

Strings on! |
|
|

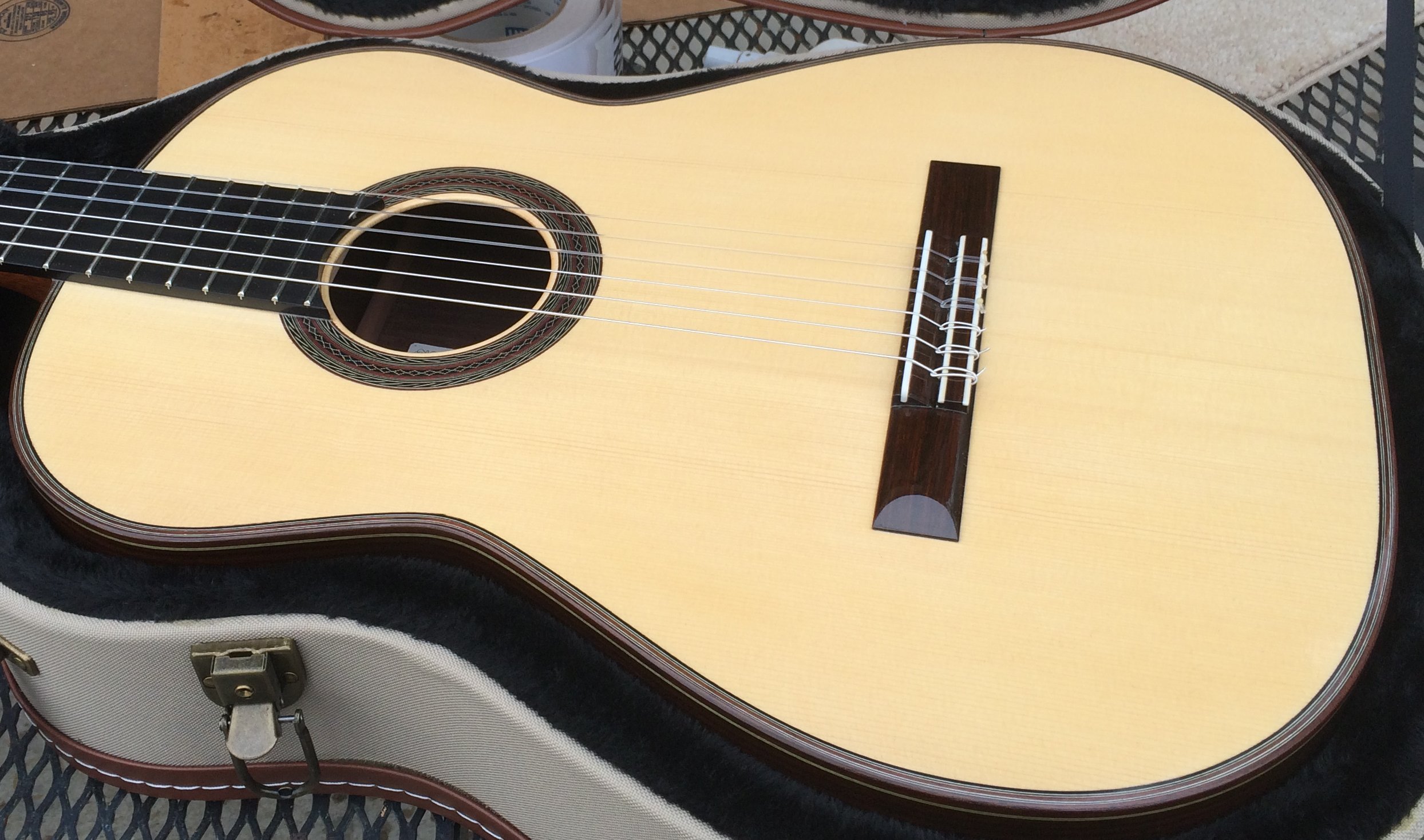

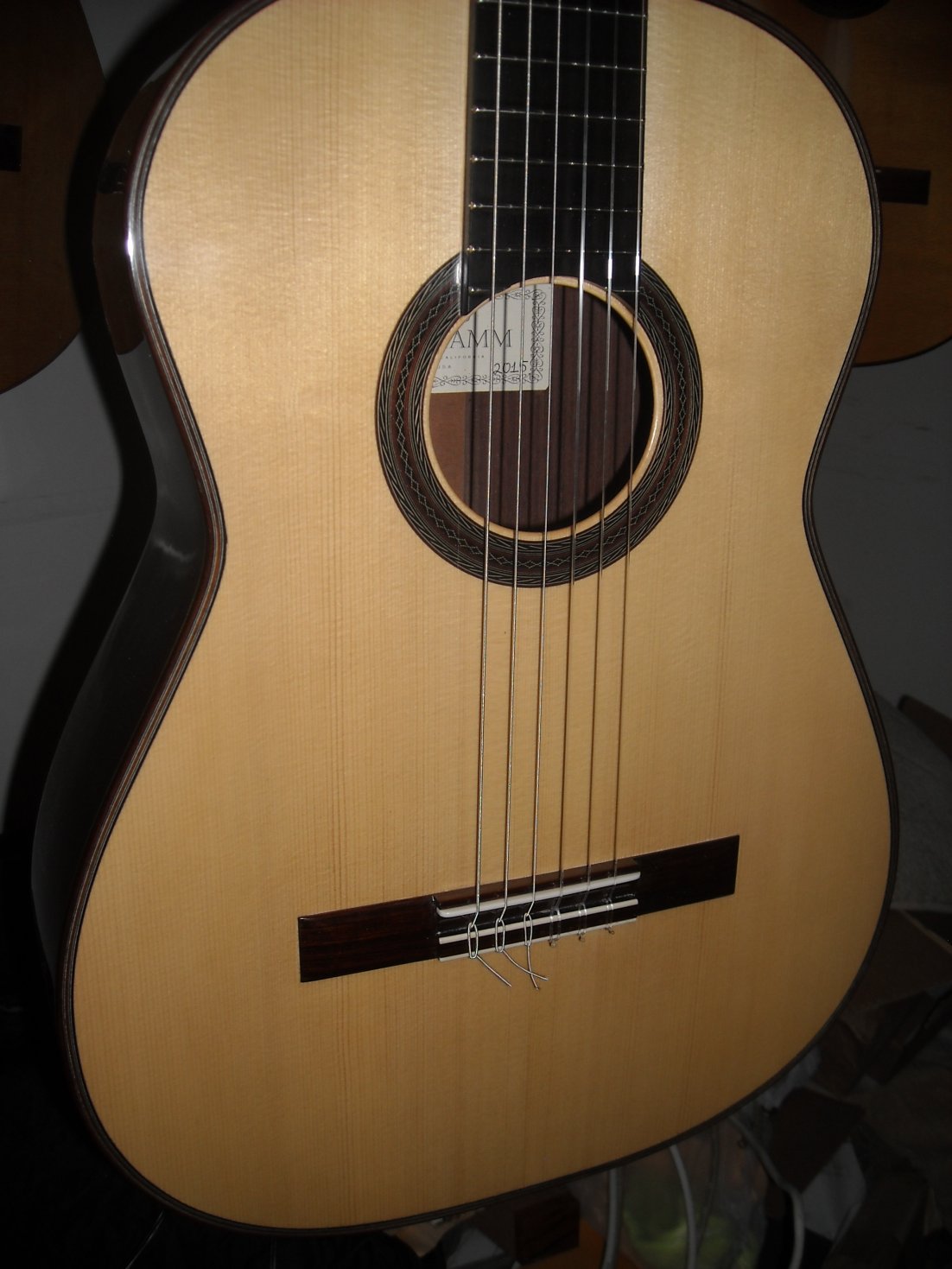

Construction complete! Final set-up before shipping! |
|
|
|
|
|
|
|
|
|
|
|
