Last Update: 06/27/08
Guitar for Jeremy Smith
Model: Professional
Specifications:
|
|

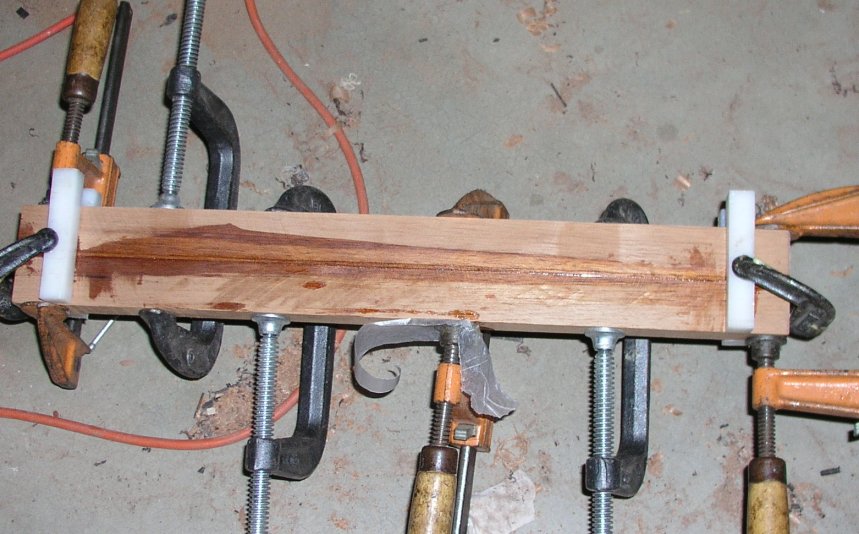

Three piece neck being glued up. This Spanish cedar comes from a special stash of Spanish cedar that John Gilbert purchased in the 1990's. I love this stuff! Simply the best Spanish cedar I have ever seen. The Gilbert method of "flipping" the wood is used which makes a very stable neck. |
|
|

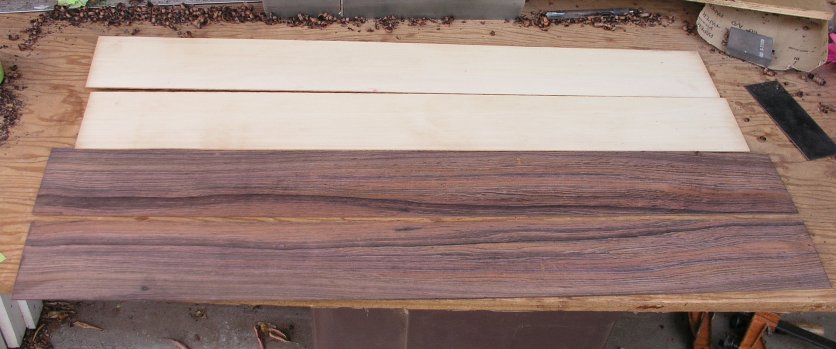

Brazilian rosewood sides and Alaskan yellow cedar laminate ready for bending. |
|
|

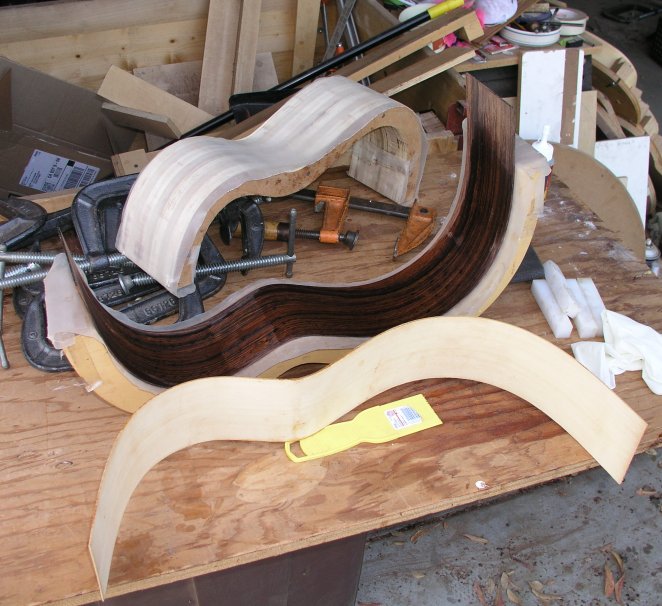

Ready for lamination. |
|
|

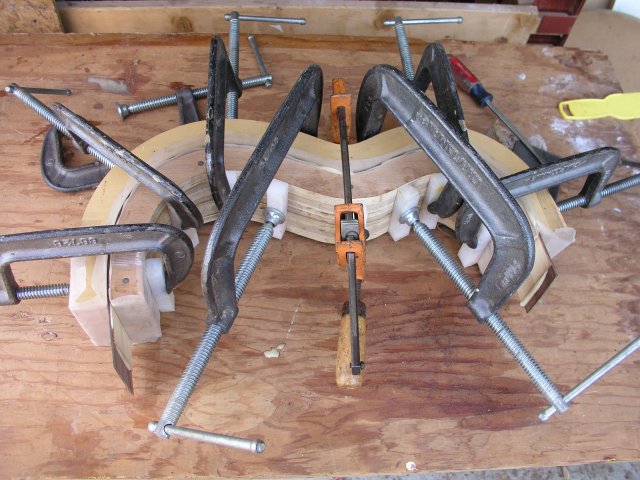

Lamination clamp. |
|
|

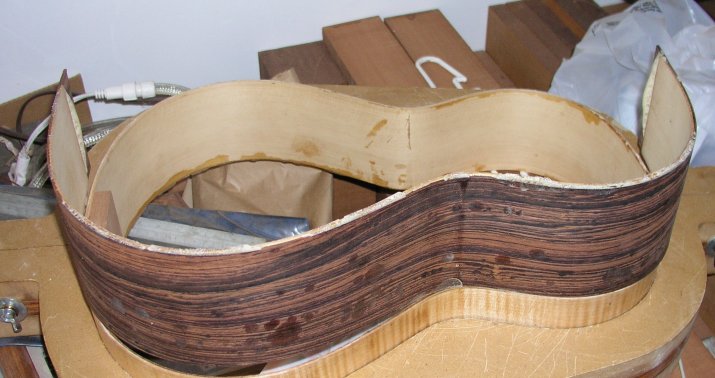

A laminated side. |
|
|

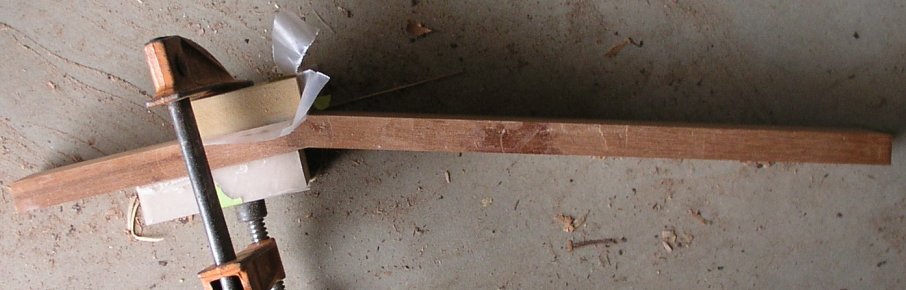

Head being glued onto the neck. |
|
|

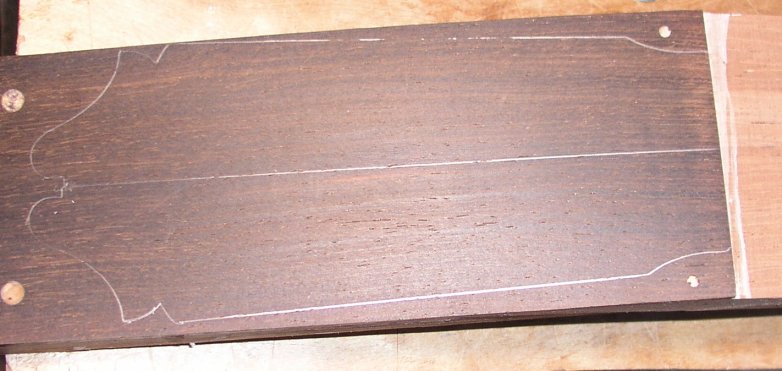

Brazilian Rosewood headplate with Hernandez y Aguado style head about to be cut out and carved. |
|
|
German Spruce "Moonwood" soundboard halves being glued up. |
|
|

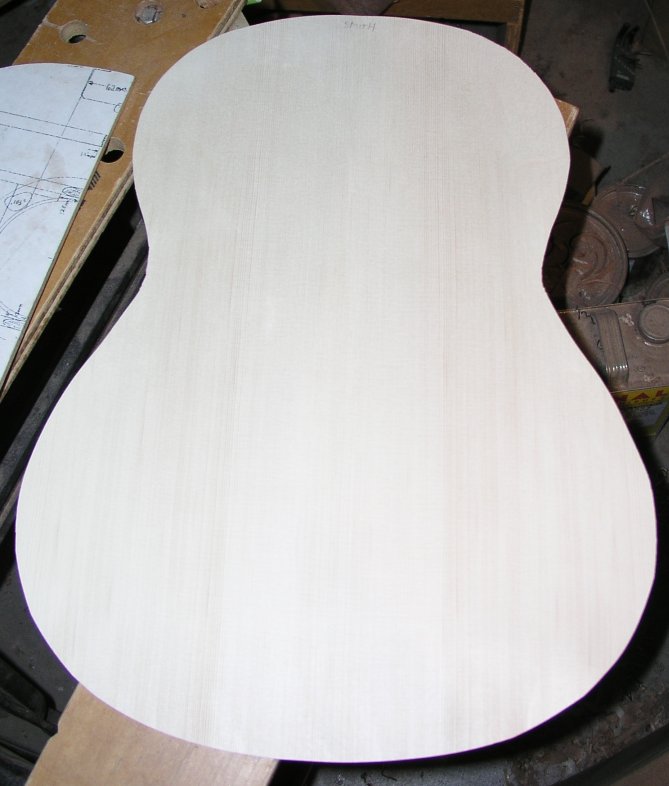

Soundboard ready for rosette. |
|
|

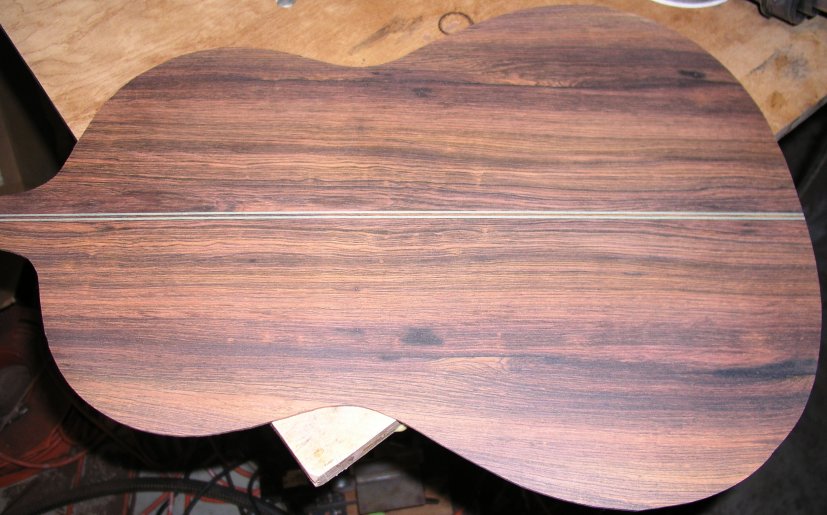

Brazilian rosewood back with dual maple/green/maple purfling and BRW central strip. Thicknessed and ready for bracing. |
|
|

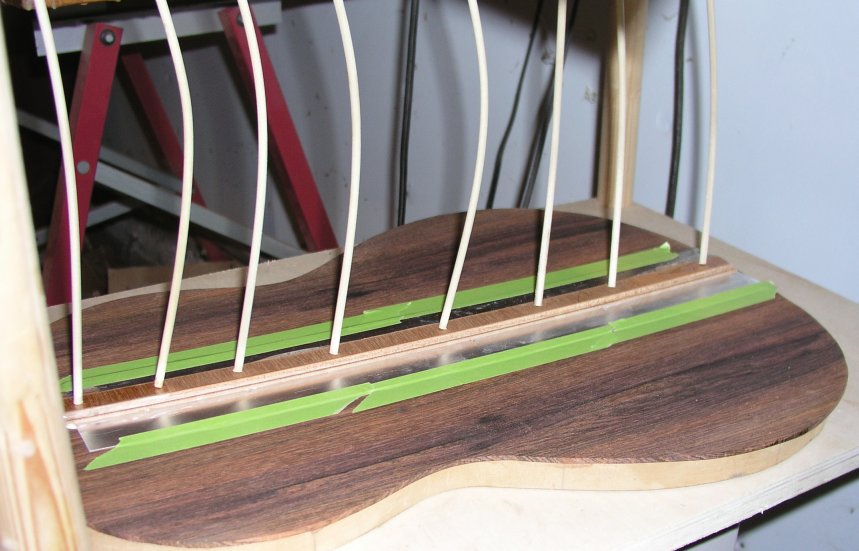

Back reinforcement strip being glued onto the back. |
|
|

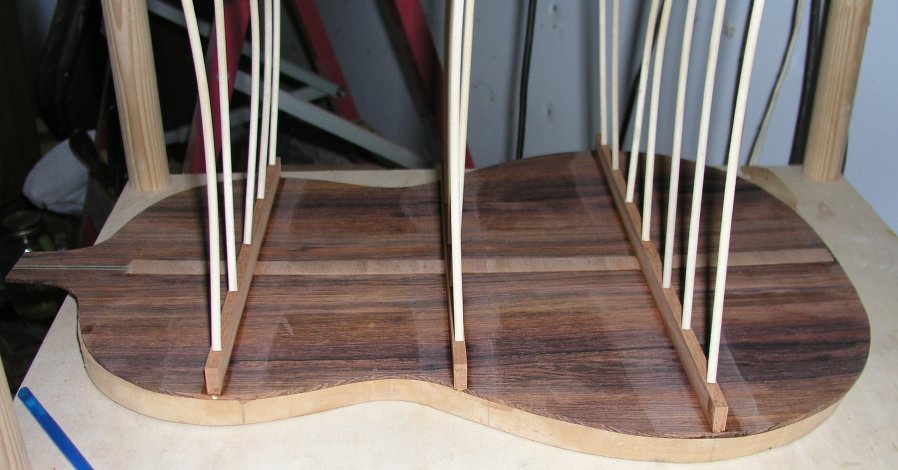

Bracing the back. |
|
|

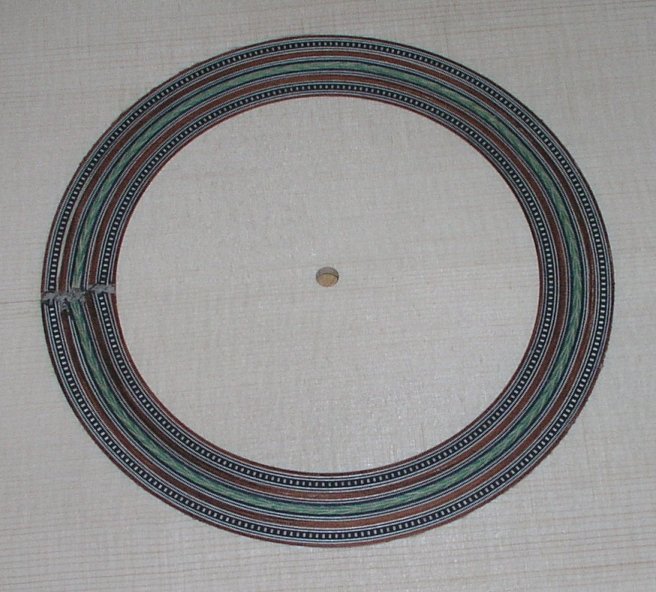

Rosette with brazilian rosewood, maple, black, and green veneer lines. |
|
|

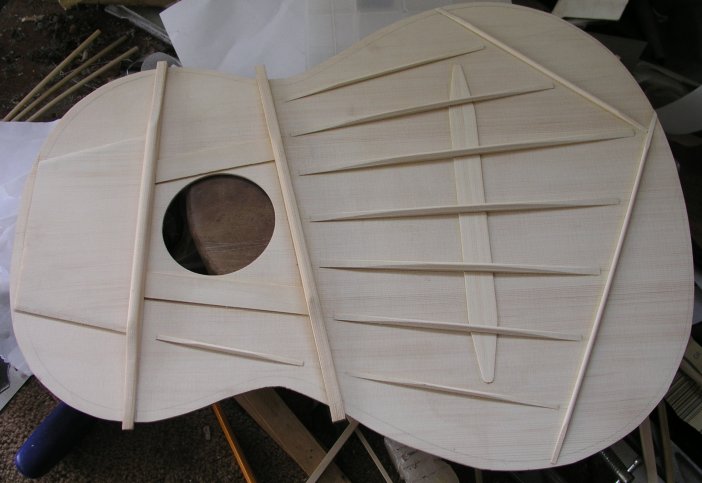

Top pro model bracing. |
|
|

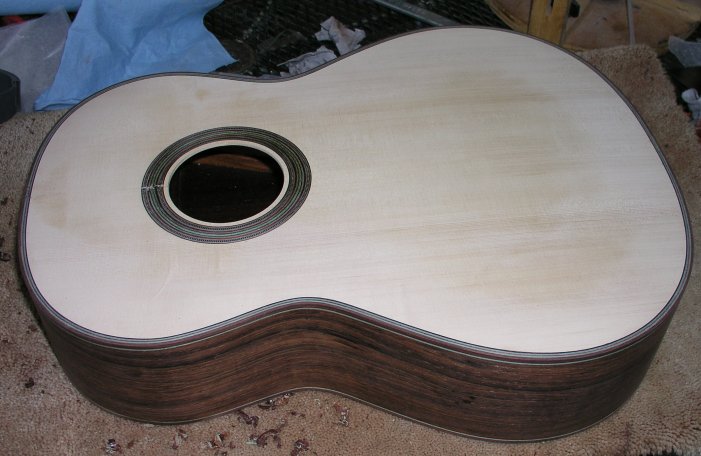

Body ready for neck. |
|
|

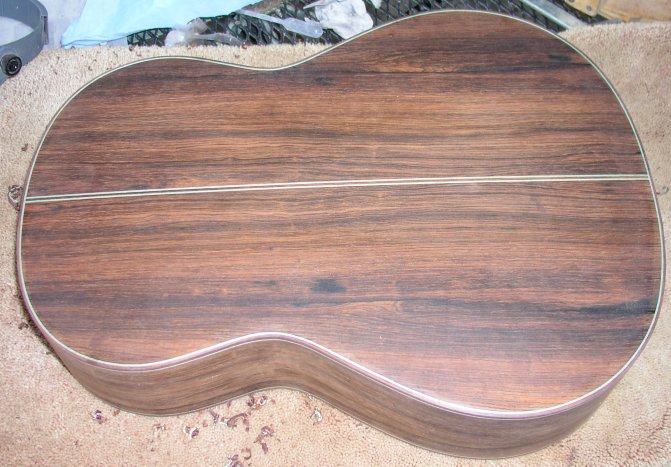

Back of the sound box. |
|
|

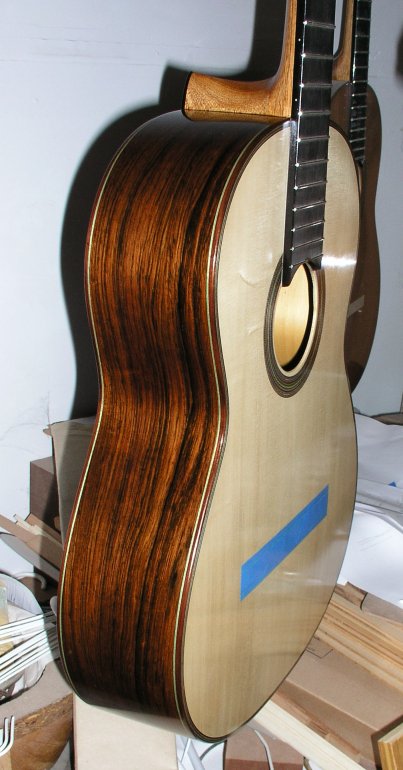

Finish prep. |
|
|

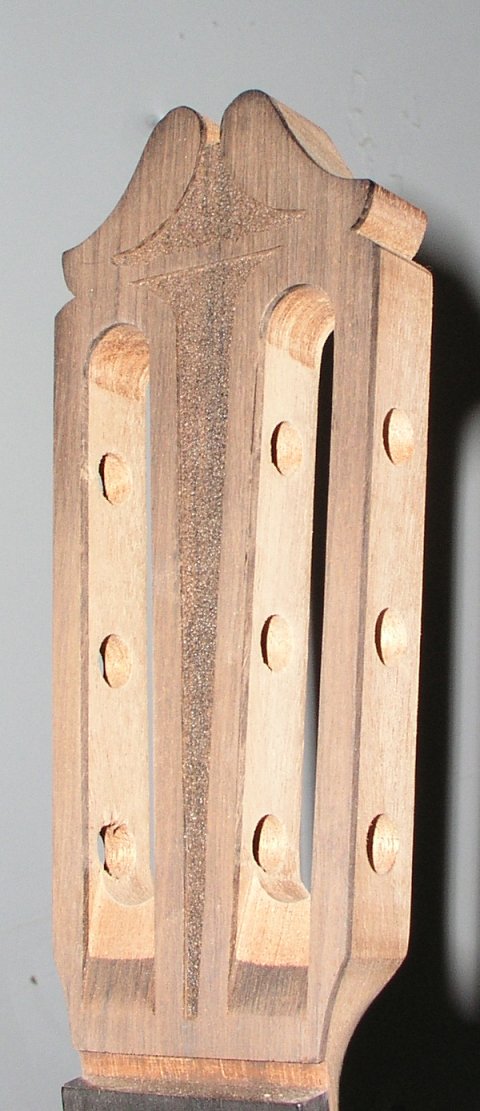

The head. |
|
|
French polishing. |
|
|

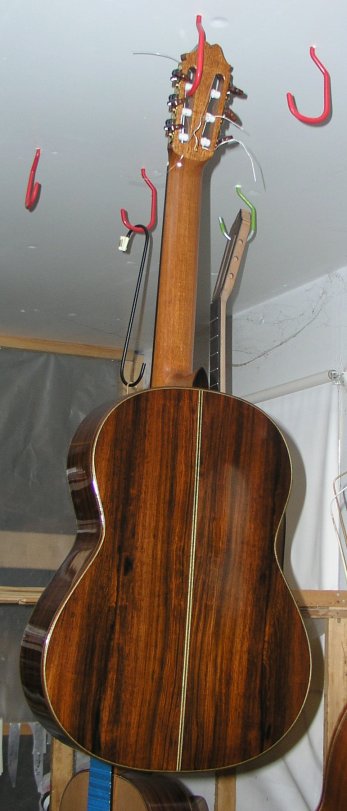

Finished guitar.Brazilian rosewood back. |
|
|

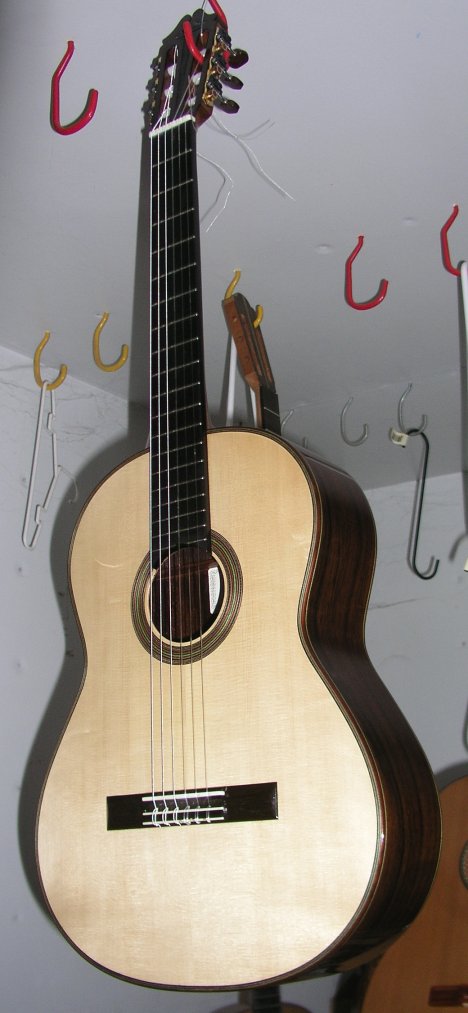

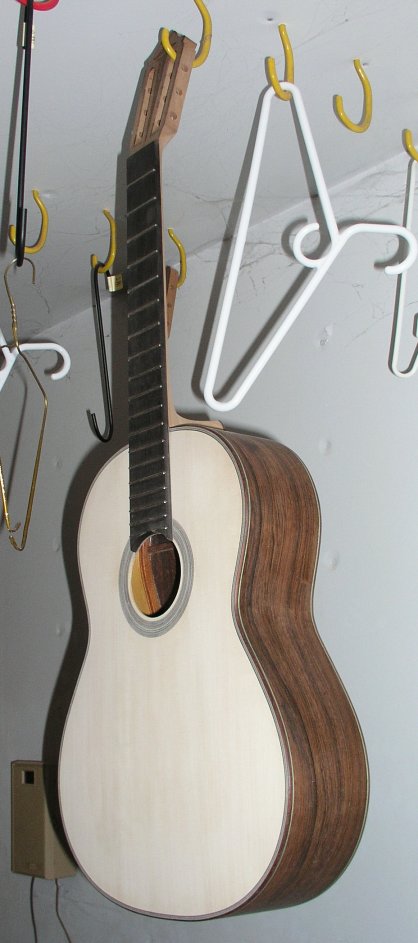

Finished guitar. German Spruce top. |
